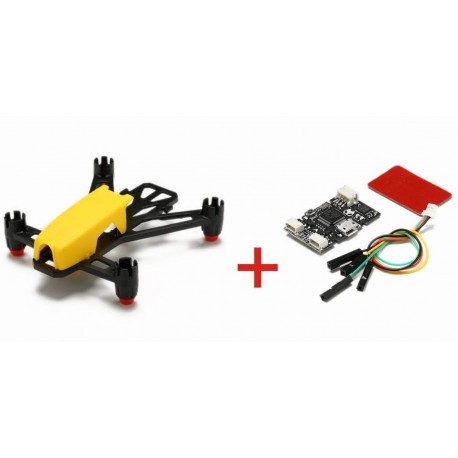

Item NO.: Kingkong Q100

Item name: DIY Micro Quadcopter Frame Kit

Material: Plastic

4 x 8.5mm motors

4 x 65mm Propeller (2CW & 2CCW)
1 x 250~750mAh 1S LiPo Battery

1 x VTX Camera

1 x Q100 Frame Kit

1 x Kingkong NAZE32 Brush Flight Controller

Description: User Manual

Brand Name: Kingkong
Item Name: NAZE32 Brush Flight Controller
Dimension: 33mm*20mm
Thickness: 1.2mm
Weight: 4g

Features:
1.This FC use NAZE32 6DOF hardware, softwarecompatibility with ALIENFLIGHTF1 or NAZE in CleanFlight configurator.
2.NZ32 flight controller use MPU6050 and STM32F103CB micro controller (128Kbytes flash memory, 20Kbytes SRAM, ARM 72Mhz Cortex-M3)
3.The FC use 3oZ 4 lays high quality PCB, support quadrocopter or hexrcopter,
4.Total 6 ways, brushed motor continuous working current up to 6A, onboard 5V
5.Convert 1s battery input to 5V for RX receiver or other equipment , current output 400mA maximum.
6.This 5V/400mA BEC can working reliable when input voltage from 1.8V to 4.35V

The wire cable color:
Blue - PPM
Red - Sbus
Yellow - 5V
Black - GDN
