Specification: User Manual Guide

Brand Name: Eachine

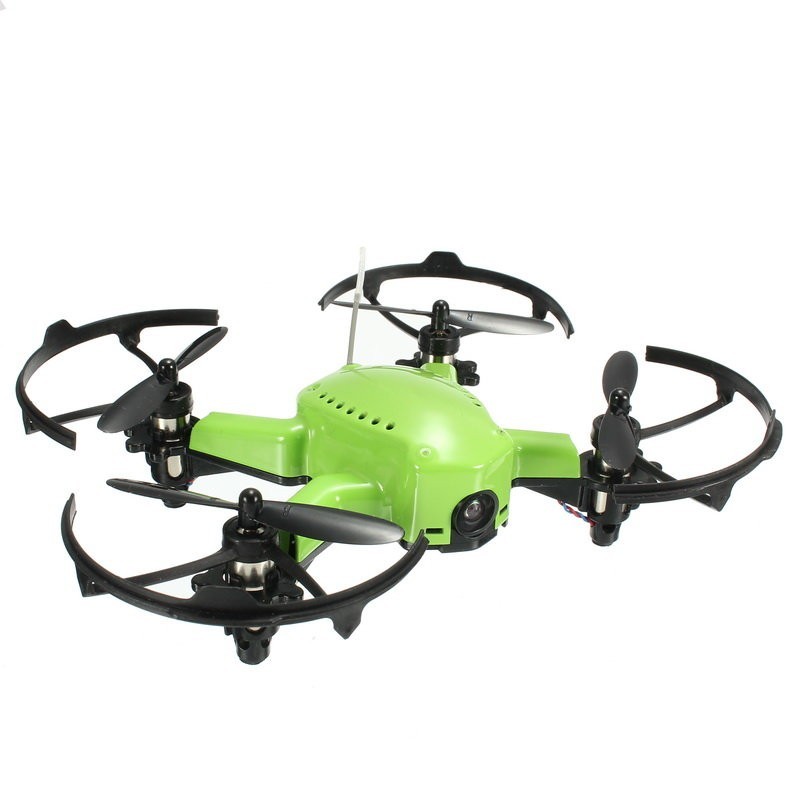

Item NO.: Q90
Wheelbase: 98mm
Size: 88mm*88mm*40mm
Weight: 41g (without battery)
Flight controller: F3 Brushed Flight Controller
Receiver: Frsky receiver/ Flysky receiver/ DSM2 receiver (Optional)
Motor: 8520 2S Brush Motor
Prop Size: 55mm
Camera: Micro 7mm 1000TVL HD COMS Camera
AV Wireless Transmitter: 5.8g 200mw 40CH
Batterry: 7.4V 2S 350mah 30C Lipo battery
Flight time: 8 minutes

Features:
Using the F3 brushed flight controller, control is more sensitive and the fligh is more active
With Ultra-miniature receiver, have 3 opotion can be choose, Frsky/Flysky/DSM2.
With 2S 8520 14000KV coreless motor and 350mah 30C 2S battery, super power.
With detachable propeller protection sleeve, make your fligh safer.
The user only need to be equipped with a remote control to experience the indoor FPV flight.
Strong wind resistance, indoor and outdoor can fly.

Receiver Option:
1. Sbus/PPM output Frsky D8 Mode Compatible Receiver
2. PPM output Flysky AFHDS Mode Receiver
3. Sbus/PPM output DSM2 compatible Receiver

Package included:
1 x Q90 Frame kit
4 x 8520 2S Coreless Motor
1 x F3 Flight controller
1 x Receiver
1 x 5.8G 200mw VTX
1 x 1000TVL Camera
8 x 55mm Propeller
1 x 7.4V 350mah Battery
1 x White body shell
1 x USB Charging cable
4 x Paddle protection sleeve
