24g Happymodel Mobula7 1S 75mm Whoop FPV Racing Drone ELRS BNF

Αναφορά (SKU): J97461

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

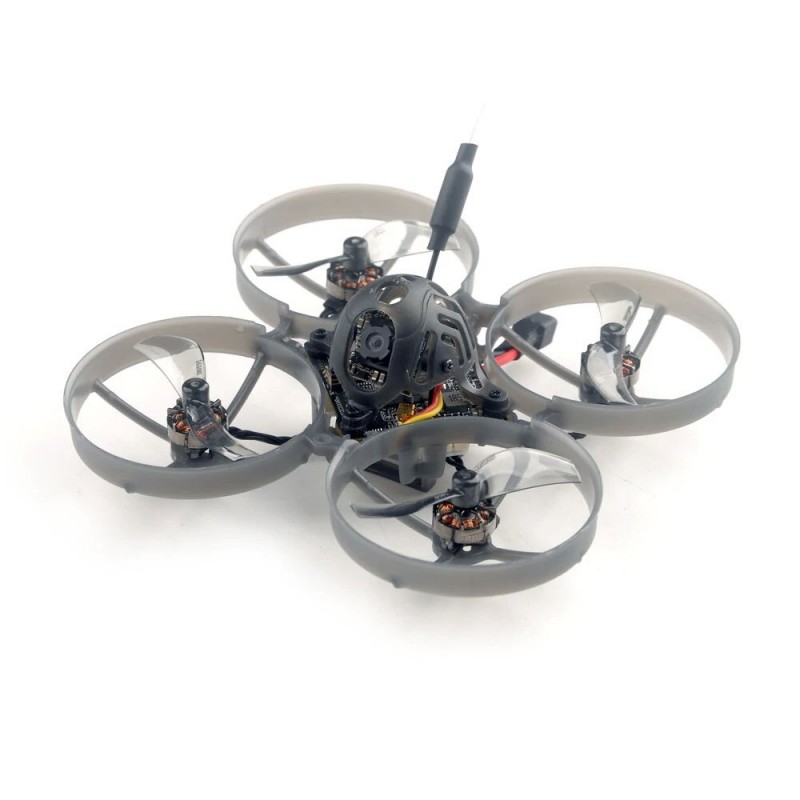

Happymodel Mobula7 1S Micro FPV Whoop Drone

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.

The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:

- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx

- VTX Power up to 400mw

- ELRS V2.0 Support

- NEW RS0802 20000KV motors

- Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

- Smooth and powerful

- Compatible for 1S Lipo/LIHV

- Recommend 1S 450mah/550mah/650mah battery (Not included)

Specifications:

Brand Name: Happymodel

Item Name: Mobula7 1S 75mm Micro FPV whoop drone

Wheelbase: 75mm

Size: 99mm*99mm*40mm

Weight: 24g

Motor	Mode: RS0802 KV20000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ10.5mm13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only
Propellers	Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight controller	X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU6000 or ICM20689(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A Built-in voltage detection Built-in current sensor
Onboard 4in1 ESC	Power supply: 1S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver ( 2.4G ELRS Receiver Version)	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna: SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware



Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smart audio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
Runcam Nano3	Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mmW14mmH9mm
Recommend 1S Lipo Battery(Not included)	Capacity: 650mAh Voltage: 3.8v Continuous Discharge Rate: 30C Instantaneous discharge rate: 60C Size: 60mmx18mmx8mm Weight: 16g Connector: PH2.0

Package Included:

1x Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
1x Option1: X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver
4x RS0802 KV20000 brushless motor
1x Gemfan 1610-2 bi-blade propellers(4cw+4ccw)
1x Runcam Nano3 1/3 CMOS 800TVL camera
1x Onboard 5.8G Openvtx 0mw~400mw VTX
1x 1S parallel charging board
1x Propeller disassemble tool
1x Extra camera canopy
