Speed Controller

Μεγαλύτερη προβολή

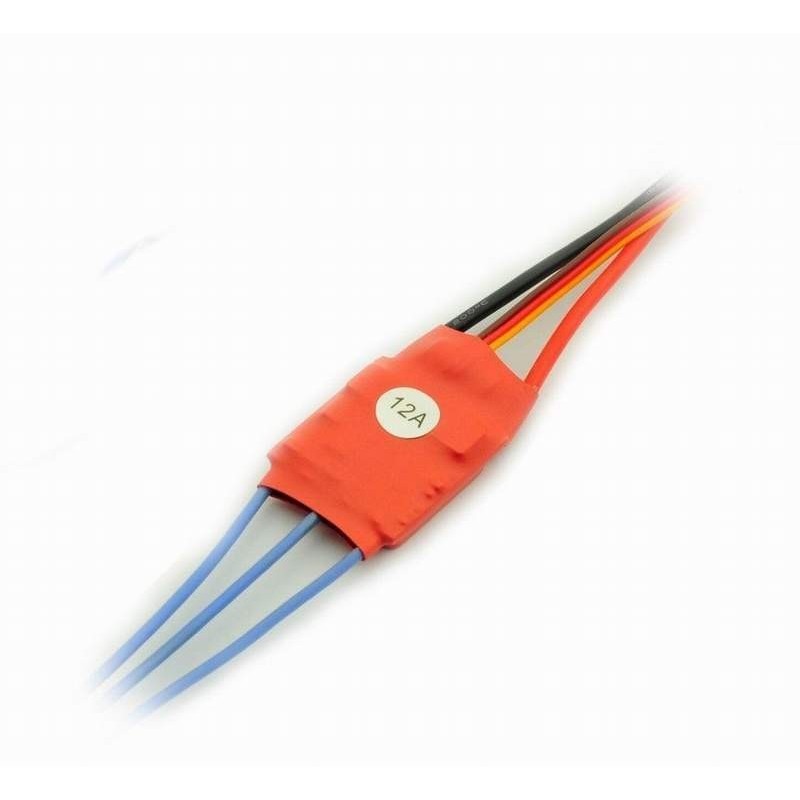

12A SimonK firmware Brushless ESC w/BEC for 250 Quadcopter

Αναφορά (SKU): 644299

Διαθέσιμο

Description:

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

Highest efficiency 100% N-FET design.

Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).

No low voltage cutoff, because any cutoff in a multirotor = crash.

No over temp cutoff, because any cutoff in a multirotor = crash.

Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.

16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).

Super simple, foolproof operation! Nothing to program other than the throttle range.

Don't buy a 15A multirotor ESC that doesn't meet all these criteria! There are a lot of low quality 15A ESC out there!

ESC Specifications:

- Constant Current: 12A

- Input Voltage: 1-3 cell Lipoly

- BEC: Yes (linear) [Remove middle wire to dissable]

- BEC Output: 5V/2A

- PWM: 8 KHz

- Max RPM: 240,000rpm for 2 Pole Brushless Motor

- Size: 28*20*6.1mm

- Weight: 12g

Packing content：

1 x 2-3S 12A SimonK firmware Brushless ESC
