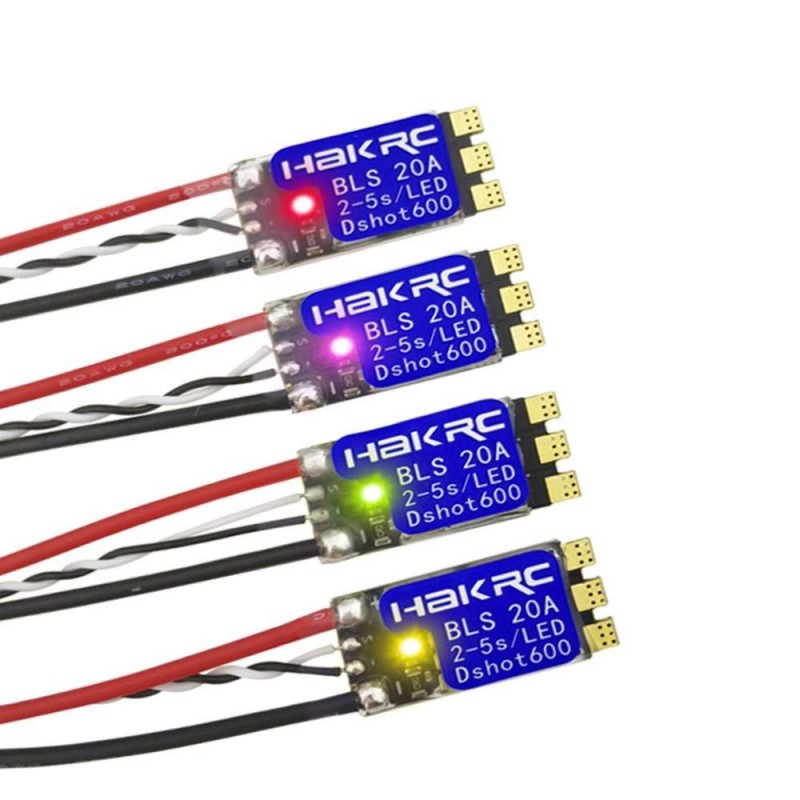

HAKRC BLS 20A ESC 2-5S BLHeli-S Built-in LED Mini Brushless Speed Controller Dshot150/300/600 for RC FPV Racing Drone

Key Features:
1. High quality hardware: emf8bb21f16g main control chip, operating frequency up to 48mhz. It adopts three in one IC drive and high frequency ceramic capacitor. High precision PCB production process, the pads are metallized, so that you can avoid the pads falling off when using; 3 ounces of copper thick, 6-layer plate, greatly reduce heating, so as to improve efficiency.
2. Highly integrated and compact: built-in galvanometer and programmable LED lamp. After such high integration, the volume is the same as that of pencil, and the installation and wiring will become very simple.
3. Native support for blheli-s: using blheli-s firmware, it has stable performance and rich functions; In addition, it supports various ways to set the electric adjustment parameters or upgrade the electric adjustment firmware (such as setting or upgrading the electric adjustment through the throttle signal line, using other development boards, or using cleanflight or betaflight firmware flight control).
4. Hardware PWM, damped light: Hardware PWM drives the motor, with low noise and smooth throttle response. Damped light technology and regenerative braking function make the motor deceleration sensitive and effective and the control accurate; Active freewheeling technology allows the battery to recover power and prolong the endurance time;
5. Dshot150 / 300 / 600 ready: it supports ordinary PWM throttle signal mode, oneshot125, oneshot42 and multshot high-speed throttle signals, as well as current dshot150 / 300 / 600 digital throttle, with strong anti-interference ability and rapid response. The input and output line uses soft silica gel line, which is durable, high temperature resistant and convenient for welding.

20A ESC Specification:
Working voltage: 2-5S
Maximum continuous working current: 20A
Maximum instantaneous working current: 25A
Support communication mode: DShot150/300/600 PWM, Oneshot125, Oneshot42 and Multshot
Assistant software: BLHeliSuite
Firmware version: BL16.7
Product size: 22*11*4mm
Product net weight: 6g
BEC: None
LED: Built-in programmable LED, external 5V power supply
