Specification:
1.Product Model: MG945
Dimension: 40mm x 19mm x 43mm
Rotation Angle: 0-180 degrees
Operating Speed: 0.20sec/60 degrees (4.8V no load)
Operating Speed: 0.17sec/60 degrees (6.0V no load)
Stall Torque: 10.5kg/cm (4.8V)
Stall Torque: 13kg/cm (6V)
Operation Voltage: 4.8 - 7.2Volts
Operating Temperature: 0 ℃- 55 ℃
Gear Material: Half Metal/All Metal
Dead Band Width: 5msec
Operating Mode: Analog
Plug Type: JR, FUTABA General

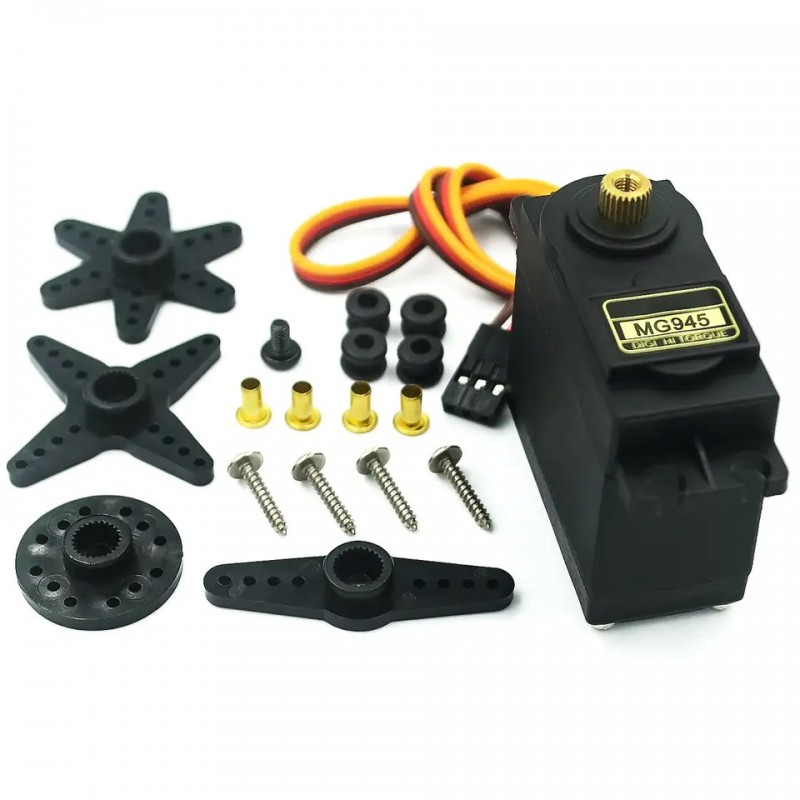

Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
