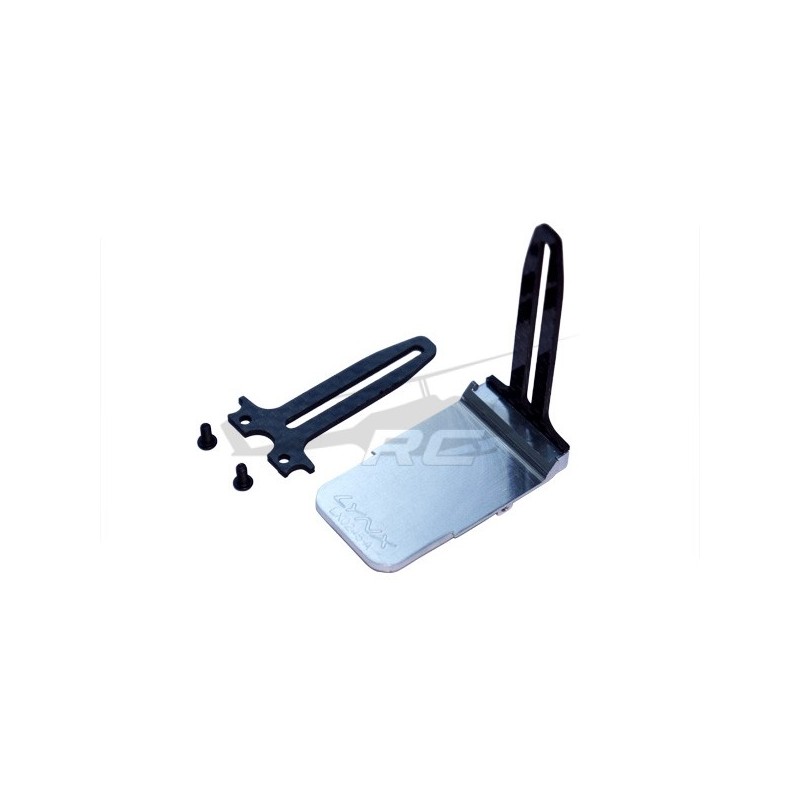

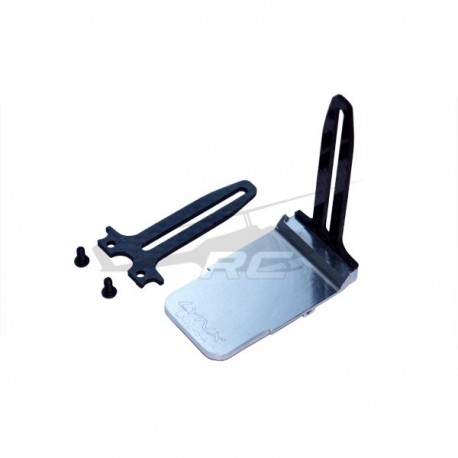

Lynx Heli Innovations has redesigned the standard 450 pro plastic  anti rotation bracket,  making it in an aluminum alloy and carbon fiber mix.

We have also designed the base 4mm longer than standard to assure the best support for your gyro or FBL system, and  extra space for cable connections.

The vertical  plate is in carbon fiber to reduce weight and allow friction free operation of the swash plate.

Lynx includes two different  CF vertical plates - one identical to standard (preassembled), and one short plate specifically designed for the DFC head system and other low profile head systems.

This anti rotation bracket fits perfectly in the standard 450 pro.

Base material: Aluminum 7075-T6 – clear anodized finish

Vertical plate material: Carbon fiber 3K

Hardware:  Steel 12.9 Class - ISO 7380

Assembly weight:    Long: 8g

                            Short: 7.7g

Packing list:

1 x CNC Anti rotation base

1 x CF Anti rotation vertical plate long  (factory assembled)

1 x CF Anti rotation vertical plate short

4 x Button head hex cap screw M2.5x8 (factory assembled)
