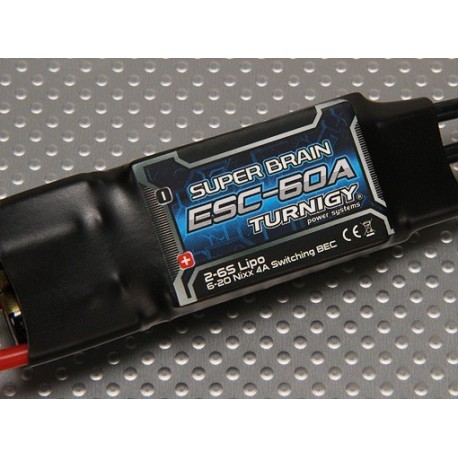

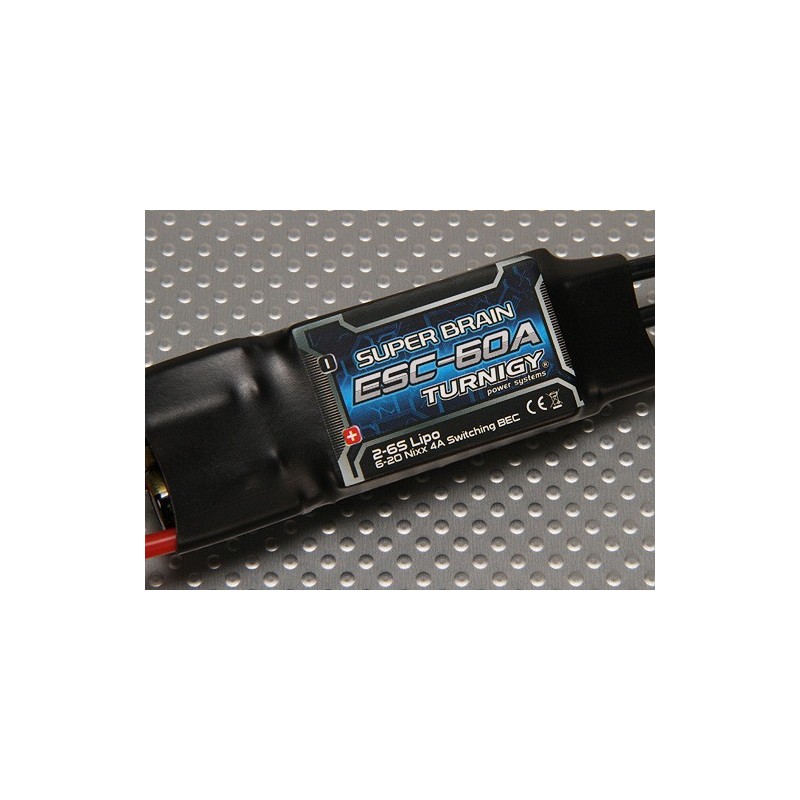

Ultra fast microprocessor controlled, extremely low resistance circuit and chip design, and aluminum heatsink for better thermal dissipation are just some of the features in the new TURNIGY Super Brain range of brushless speed controllers.
The Super Brain brushless esc is a high performance ESC capable of standard and competition use.
Full protection, including signal loss, over-temperature.
Programable by USB, PC or your Tx.
Compatible with all radio systems.

Features:
Supports the ‘Turnigy USB Linker’ to program the ESC by computer.
Internet upgradeable ESC firmware.
Integrated flight data logger, records data for the ENTIRE flight such as:
- Voltage
- Current
- Temperature
- Motor RPM
- Throttle travel

Programmable settings;
Startup (Default Standard/Soft/hard)
Low Voltage cutoff (Default 6.0/7.2/8.4/9.0/12.0/15.0/18.0V)
Current limiting (Default Standard/Very sensitive/Insensitivity/Disabled)
Brake (Default None/Soft/Hard)
PWM rate (8/12/16 KHz)
Timing (Default Auto/Low/Middle/High)
Cutoff type (Default Hard/Soft)
Governor mode (Default Auto/Low/High)

Spec.
Constant Current: 60A
Burst Current: 70A
Battery: 2-6S Lipoly
BEC: 5V/4A (Switching BEC, supports above 4 digital servos)
Motor Type: Brushless
Size: 71 x 26.5 x 15mm
Weight: 50g
Throttle range: 640us

**Programable with Turnigy programming Box and Turnigy USB Linker, see related items below.
We suggest customers to not program the esc with their Tx.
