Basic function:

1) 56 channels,7 frequency band wireless receiving.
2) Two buttons for channel and band exchange individually.
3) Twonumber display, timely locate the current receiving frequency and band
4) When power on, storage memory shows channel and frequency of the last time.
5) Two-way video and audio signal output ( video: PAL, NTSC,CECAM ; Audio: 6.5MHz)
6) 5dB sensitivity gain more than normal receivers
7) Wide dynamic power supply ( 12v)

Specifications:

Supply current: 130mA
RF input matching: 50ohm SMA
Video output voltage: 1.0Vp_p75Ω
Audio output voltage: 1.0Vp_p 10KΩ
Dimension: 50×50×15 mm
Weight: 42.5g

Package Included:

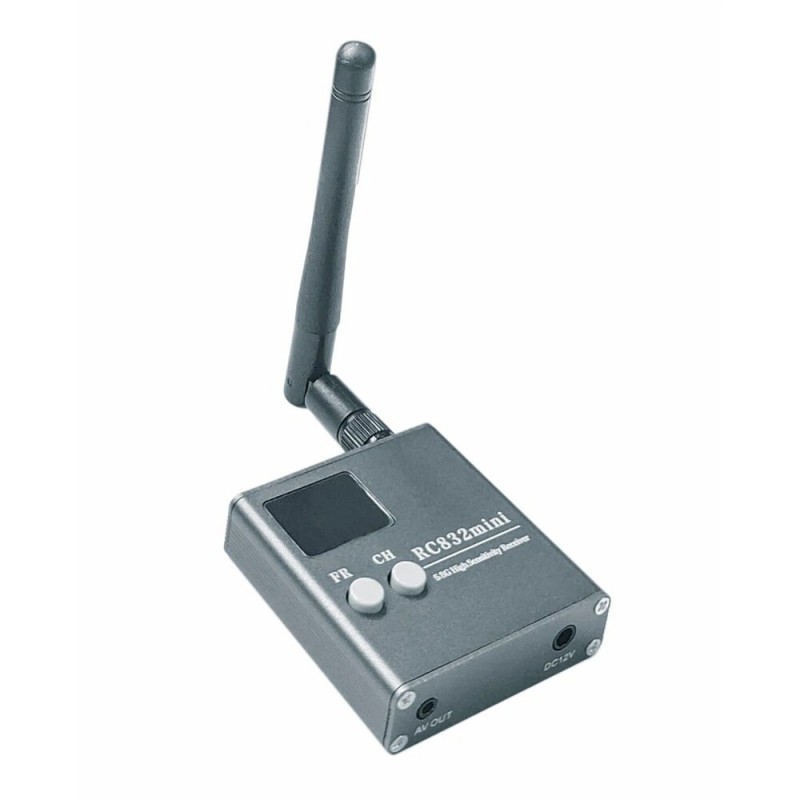

1 set x RC832mini 4.9G-5.8G 56CH high Sensitivity Receiver
