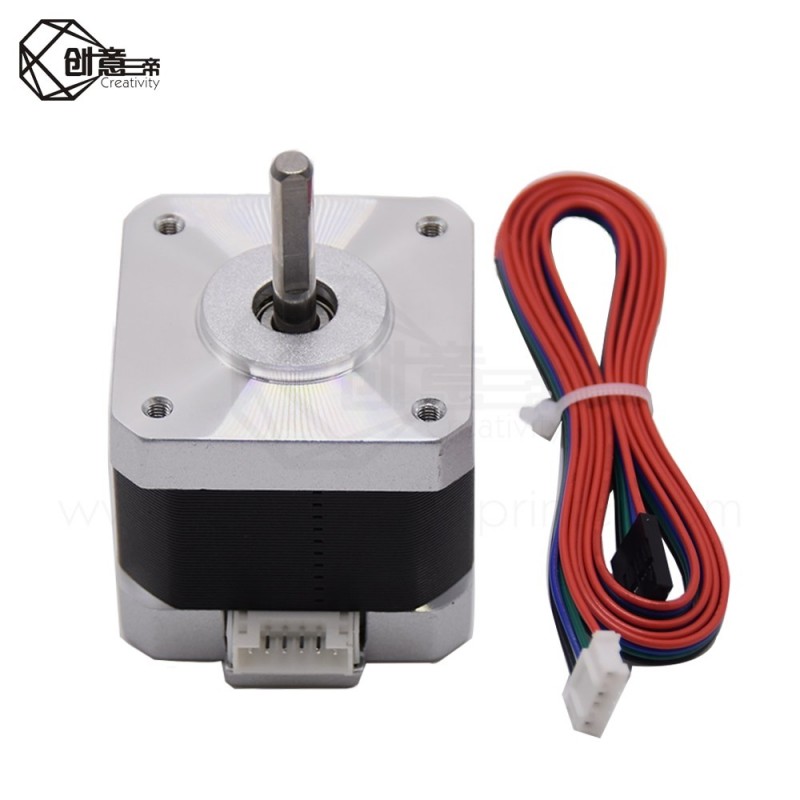

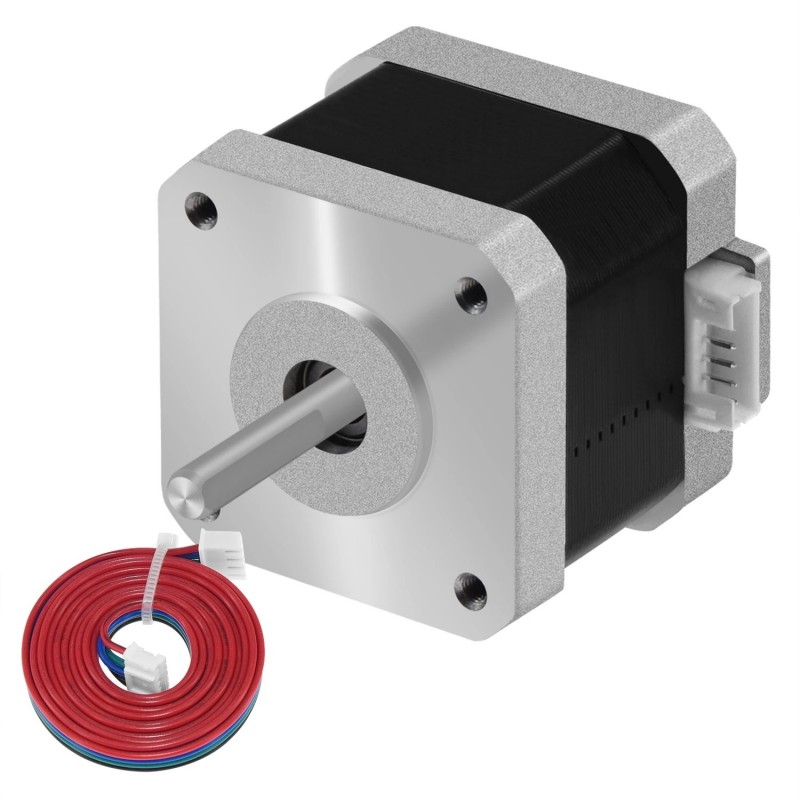

17 Stepper Motor 42 motor Nema 17 motor 1.5A 38mm 3D Printer Motor and CNC XYZ View larger
Previous Next

17 Stepper Motor 42 motor Nema 17 motor 1.5A 38mm 3D Printer Motor and CNC XYZ

17 Stepper Motor 42 motor Nema 17 motor 1.5A 38mm 3D Printer Motor and CNC XYZ

More details

In stock

25,00 € tax incl.

More info

2

Features:Specifications:Features:Specifications:
Phase2Step angle1.8° ± 0.09°
Rated voltageDC 3.6VRated current

DC 1.5A/Phase

Phase resistance (20°)2.4X(1±15%)Ω/PhasePhase inductance (1KHz)

3.7X(1±20%)mH/Phase

Holding torque≥420mN.m

Positioning

torque

15   mN.m    REF.
Steering (shaft extension)A-AB-B ClockwiseThe maximum no-load starting frequency≥ 1500 PPS
Maximum no-load operating frequency≥ 1900 PPSInsulation resistance≥ 100 mΩ  (DC500v)
Electric strengthAC600V/ 1mA /1SInsulation class      B   Level
Moment of inertia57.3  g.cm²Quality   0.25 Kg     REF.
