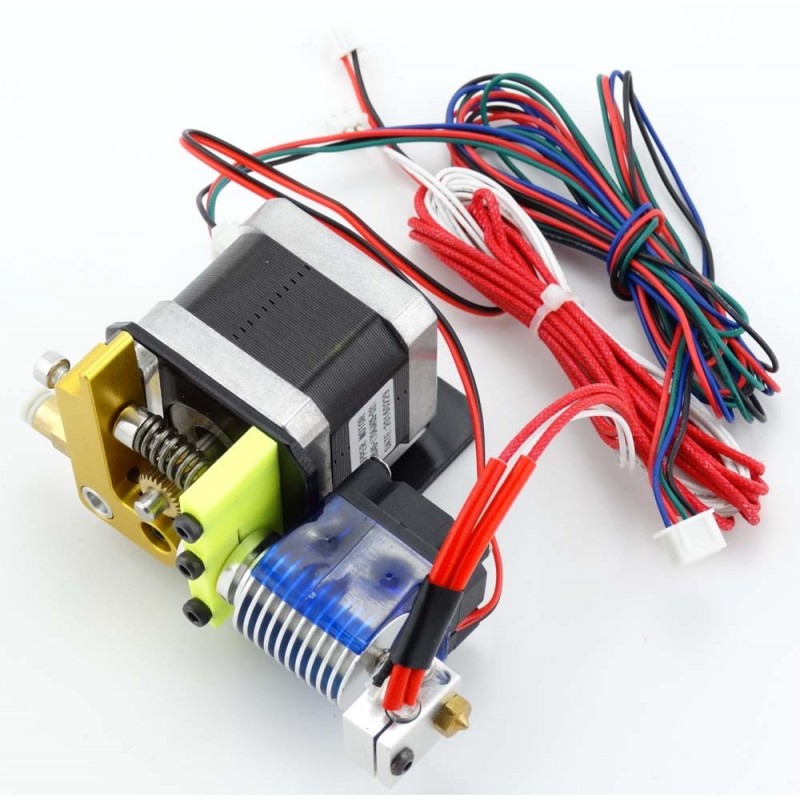

3D Printer Head Extruder Thermistor MK8S E3D J-Head Hot End Extruder View larger

3D Printer Head Extruder Thermistor MK8S E3D J-Head Hot End Extruder

(SKU): MK8S E3D J-Head

3D Printer Head Extruder Thermistor MK8S E3D J-Head Hot End Extruder

More details

In stock

65,00 € tax incl.

More info

MK8S specification:
  1. Nozzle flow rate: about 24cc / h
  2. Movement shaft speed: 10-100mm/s
  3. Normal working temperature: 190°c-250°c
  4. The maximum temperature : 280 °c
  5. The cooling fan operating voltage: 12V DC
  6. Heating rods: 6mm, 12V 40W
  7. Print Material: ABS, PLA
  8. It's compatible with 1.75mm filament
Motor specification:
Model: 42HS40
Wire Length: 20cm
Stepping angle：1.8°
Phase Current: 1.7A
Phase Resistance: 2.5Ω
Phase Inductance: 4.2mH
Motor Torque: 0.5NM
Net weight: 402g

Note: heating nozzle 12V, the normal operating temperature 190°c -230°c, maximum temperature does not exceed 280 °c high temperature easy to damaged material.


Wiring:
Red cable: Heating rod
White cable: Thermistor


E3DV6 3D Printer Drucker J-head:
  1. Type: E3DV6
  2. Voltage: 12V
  3. 100k Thermistor
  4. Material: All metal
  5. Nozzle diameter：0.3mm
  6. Suitable for 1.75mm filament
  7. Include 1m Tube and Cooling fan

Package Content：



  • 1x 3D Printer MK8S with E3D J-Head Hot End
