Features:

1. Use this adapter, no need of cutting the wires!

2. Simply connect between the board and the cable, connect 3 for bltouch wires and upgrade the firmware.

3. Improve design with wider power channels

4. Easy and convenient to use, easy to operate

5. The motherboard is safe and stable, and the line is clear.

Specification:

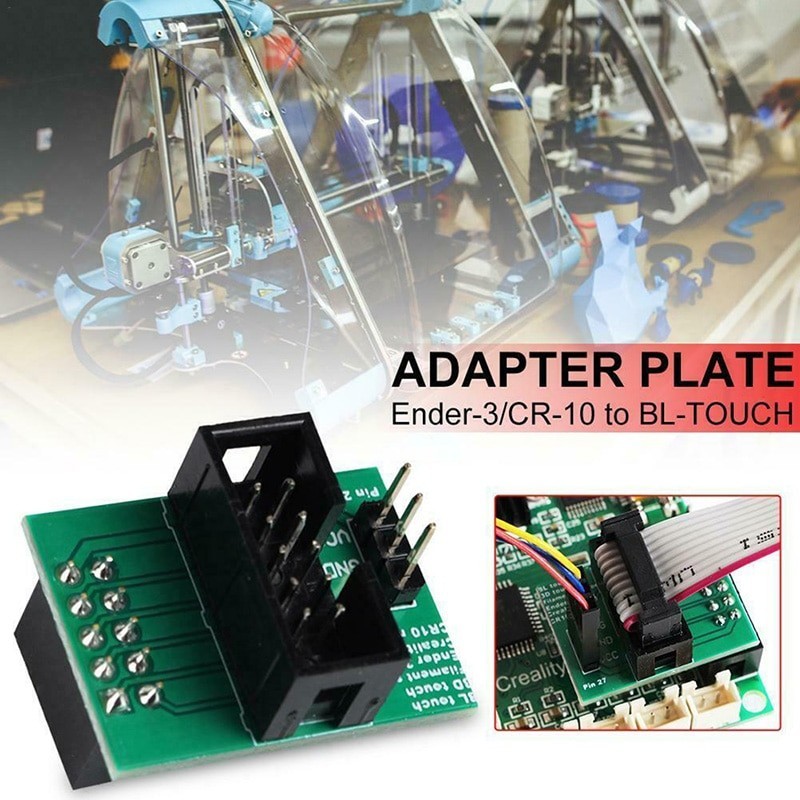

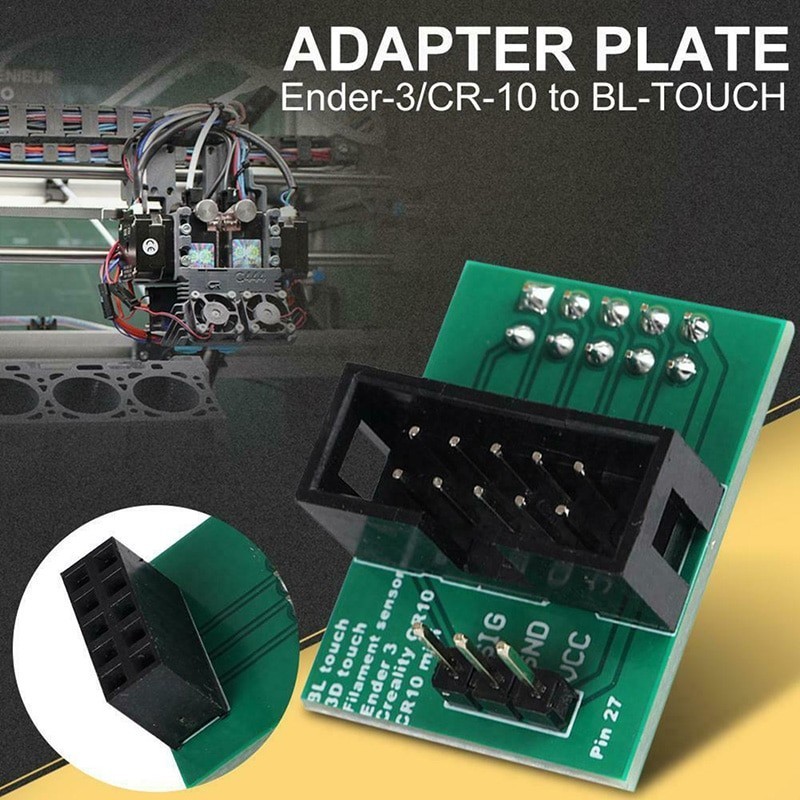

Name: for Ender-3/CR-10 BL-TOUCH Adapter Plate

Applicable to for Ender-3/cr-10 to BL TOUCH

Compatible: for Ender3/Ender 3 Pro/Ender5/CR-10 Mini/CR-10

Not compatible with: for ANET A8/Ender2/Ender4/CR-8

Color: green

Packing list:

1*Adapter plate

Note:

The pin 27 plate makes it quick and easy to install a bltouch or filament sensor.

Usually you need to cut the ribbon cable and solder it to pin 27,

But the board should be able to plug and unplug. (after firmware update)

Be sure to check the wire configuration on the bltouch or filament sensor.

The new bltouch sensor should be plugged directly into the board without disengaging the connector.

From left to right: brown ground, red -5v, yellow / orange signal

Disconnect the LCD ribbon ext1 on the control board

Connect Ext1 to pin 27 board

Connect bltouch to the 3 pins on the pin 27 board. From left to right: brown ground, red -5v, yellow signal

Connect pin 27 to the motherboard. Be sure to align the plug pins on plug 27 with the motherboard.
