Shipping List:

1pcs* MKS PWC

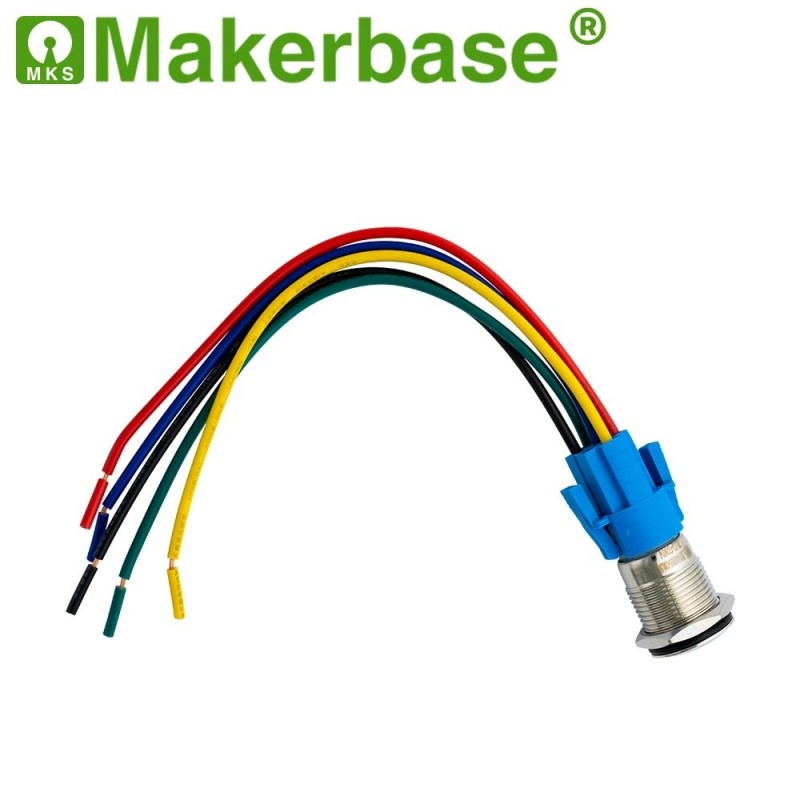

1pcs* Power switch (with cable)

3pcs* power cable (1pcs* black cable 2pcs* red cable)

2pcs* 3pin cable

1pcs* Non-self-locking pushbutton switch

Notice:

The bottom of MKS PWC module shall be far way from water,metal and other conductors. Do not touch the wire and MKS PWC module to prevent electric shock.

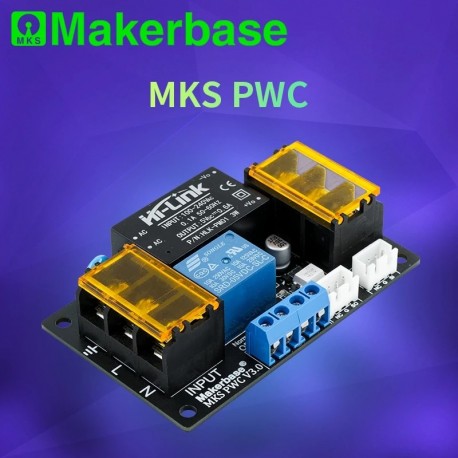

Overview:

MKS PWC can achieve power continued to play, automatically turning off after the printing finished, the software control the power off, monitor the power status and other functions. It can help to achieve interactive printing, and to help in the cases like the unexpected power off or you have to leave during the printing, and other similar issues, considered to be one of the most useful features in 3D printers.

Parameter:

1. Ac input voltage:85v/ac-265v/ac
2. Logic input voltage:3.3v-5v
3. Support auto power off
4. Support power outage detection,achieve power continued to play
5. Work with:motherboard+mks tft series,or only mks robin nano/robin2

Size:

Wiring:

MKS PWC + MKS TFT35 + MKS Robin E3D:

MKS PWC + MKS TFT35 + MKS SGEN_L:

MKS PWC + MKS TFT35 + MKS GEN_L V2.1:

MKS PWC + LCD12864 +MKS Robin E3D:

MKS PWC + LCD12864 +MKS SGEN_L:

MKS PWC + LCD12864 +MKS GEN_L V2.1:

Robin Series Board:
