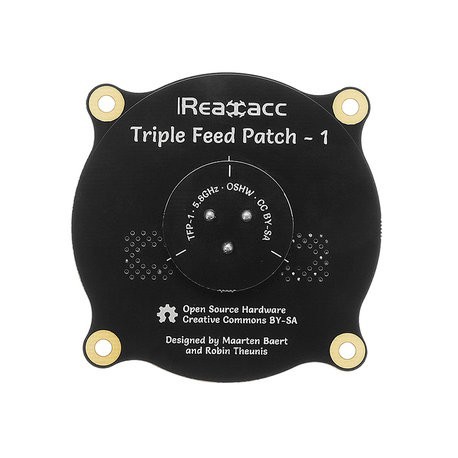

Realacc Triple Feed Patch-1 5.8GHz 9.4dBi Directional Circular Polarized FPV Pagoda Antenna
Realacc Triple Feed Patch-1 5.8GHz 9.4dBi Directional Circular Polarized FPV Pagoda Antenna
In stock
More info

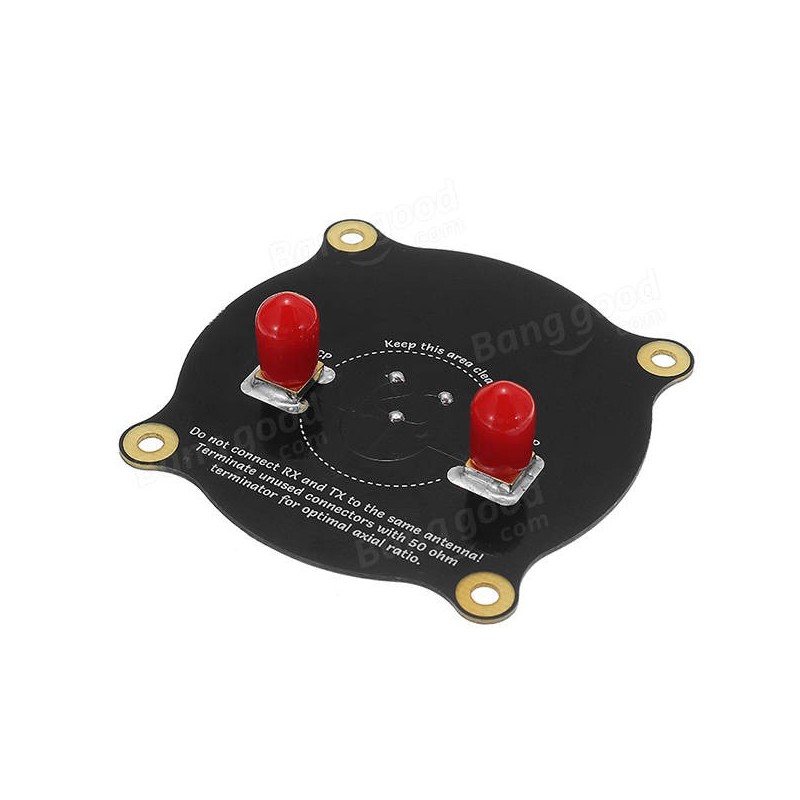

Note:Terminator is not included,you can purchase it separately
he Triple Feed Patch antenna is a directional circularly polarized antenna
Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.
Good axial ratio, not just directly perpendicular to the patch but also off-center.
Measurements:
Specifications:
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 9.4 dBi
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%Features:
Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz
Good axial ratio, not just directly perpendicular to the patch but also off-center

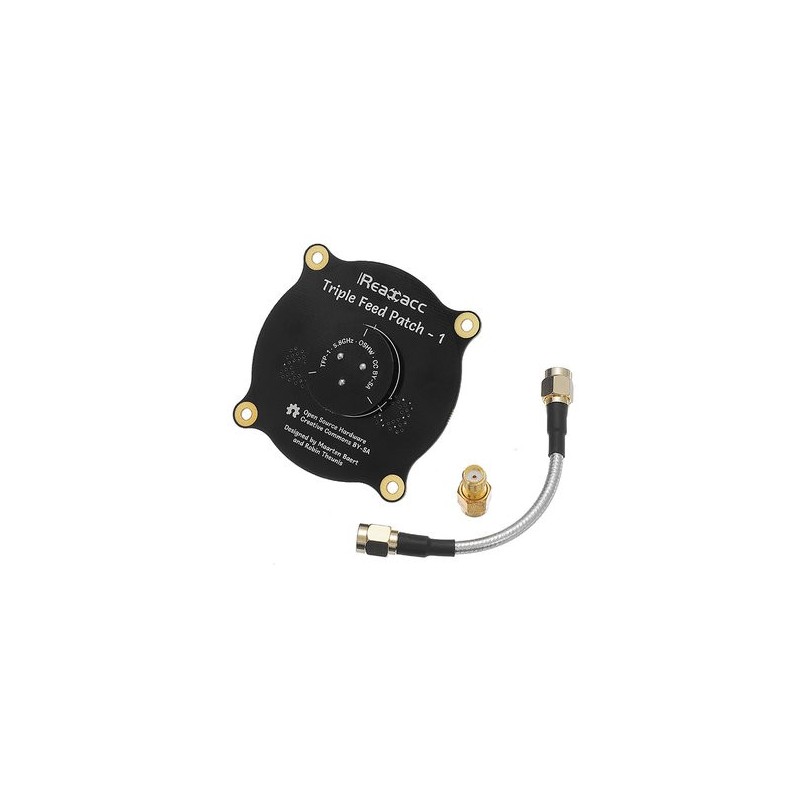

Package included:
1 x Realacc Triple Feed Patch-1 5.8GHz 9.4dBi Directional Circular Polarized FPV Antenna
1 x Extended cable
2 x SMA Feamale to RP-SMA Male adapter connector
