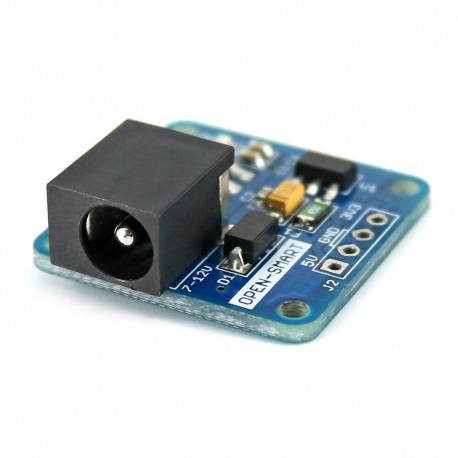

DC Jack Power 7~12V to DC5V/3.3V Step Down Converter Voltage Regulator Power Supply Module for Breadboad OPEN-SMART

Reference: (SKU): E37107/012260

More details

In stock

More info

Description:

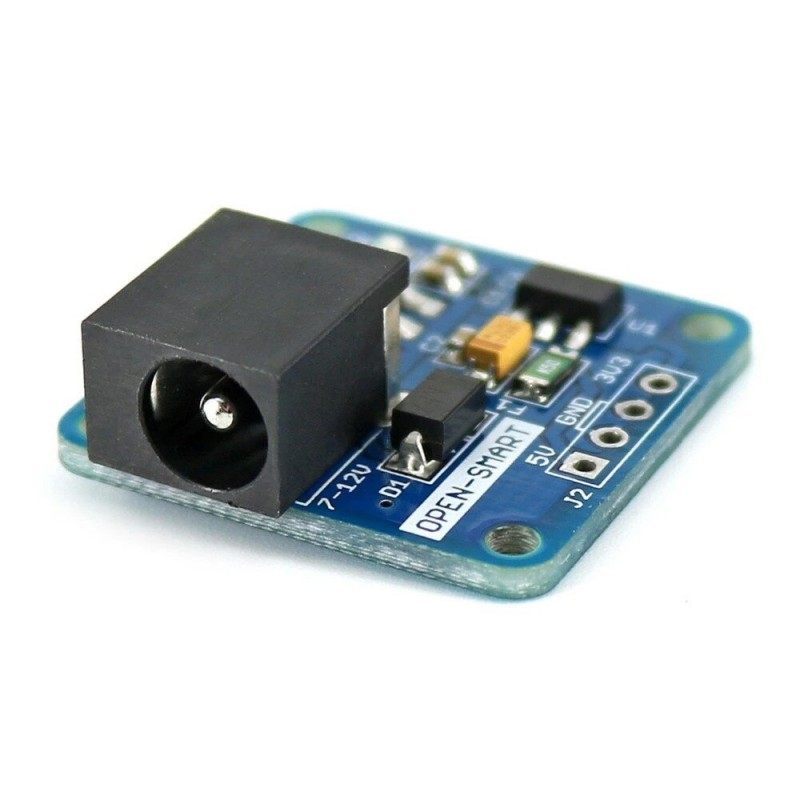

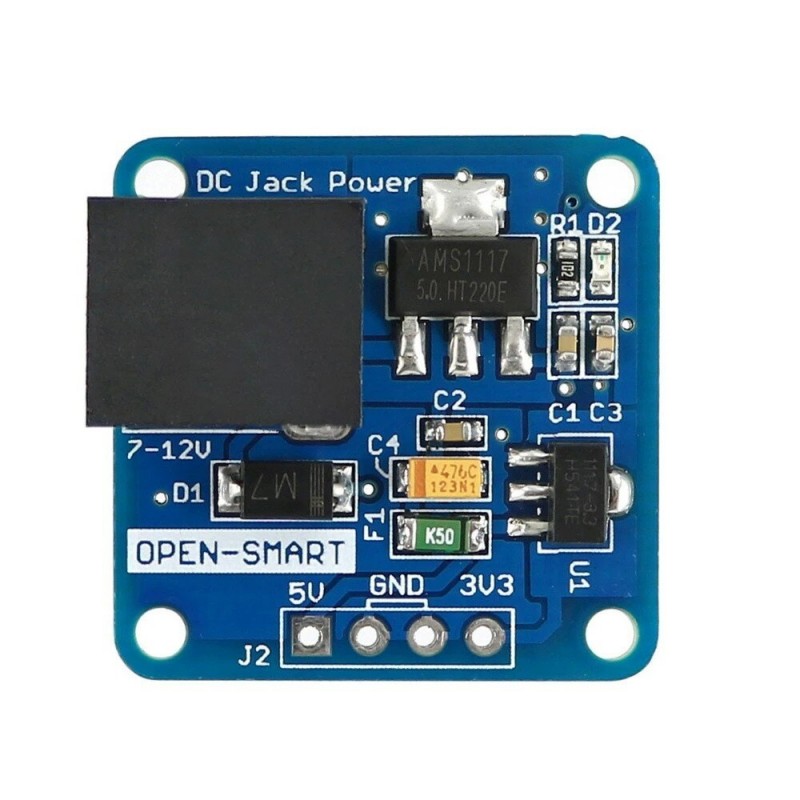

This is a mini LDO step-down power module based on AMS1117-5.0 and AMS1117-3.3, and it output fixed 5V / 3.3V.

It is a small size, lightweight, especially for model airplanes, smart cars, DIY and other items, PCB experiment board project design, breadboard project design.

Features:

- Module type: LDO step-down module;

- Onboard 500mA resettable fuse to protect the power supply from the USB port and the DC jack at the same time.

- Onboard 5V and 3.3V voltage regulator circuit

- Onboard DC jack socket and it can be powered by an external battery so it allows you to show your projects outdoor without the PC.

- Pins package: 2.54mm pin headers are available;

- Input voltage: 7-12VDC

- Output voltage: 5VDC ± 2%, 3.3VDC ± 2% (dual-channel output)

- No-load current: small, 0.1mA

- Output current: 500mA

- Continuous Current: 400mA (when the input voltage is 7V)

- Conversion efficiency: up to 80%

Package includes:

1 x Power supply module
(The breadboard is not included)
