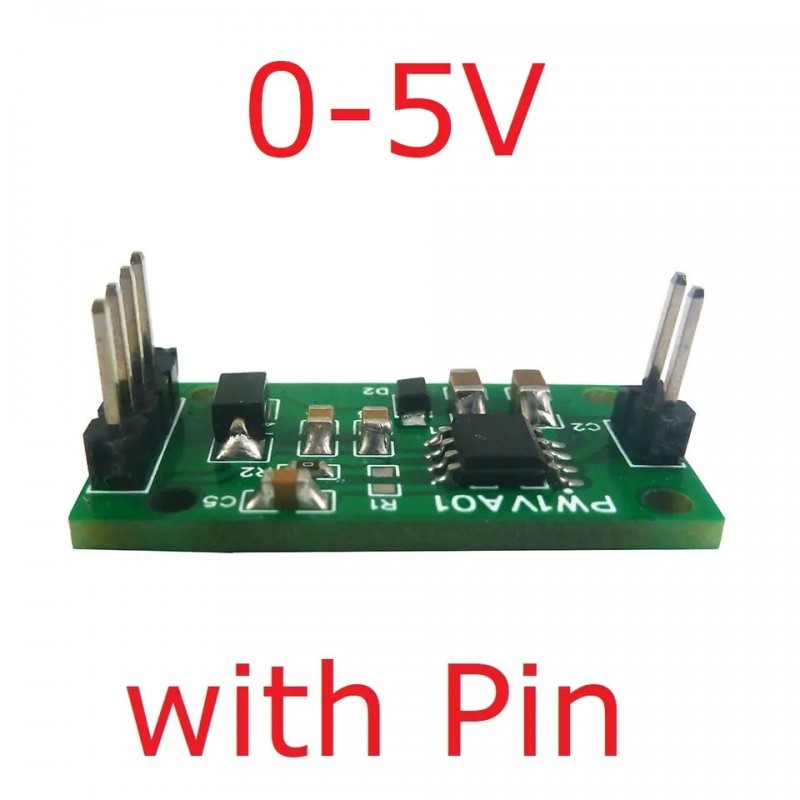

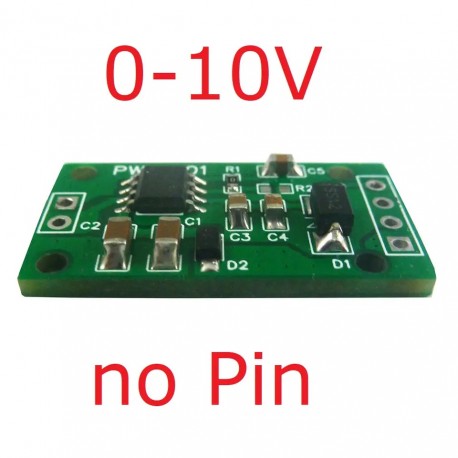

1 PCS 0%-100% PWM to 0-5V/0-10V Converter(Please choose the version you need)

Features:



Working voltage: 10V-30V (recommended 12V/24V)

Working current: <2mA

PWM Duty cycle: 0%-100%

PWM Frequency: 50Hz to 50KHz

PWM Level: 3.3V / 5V

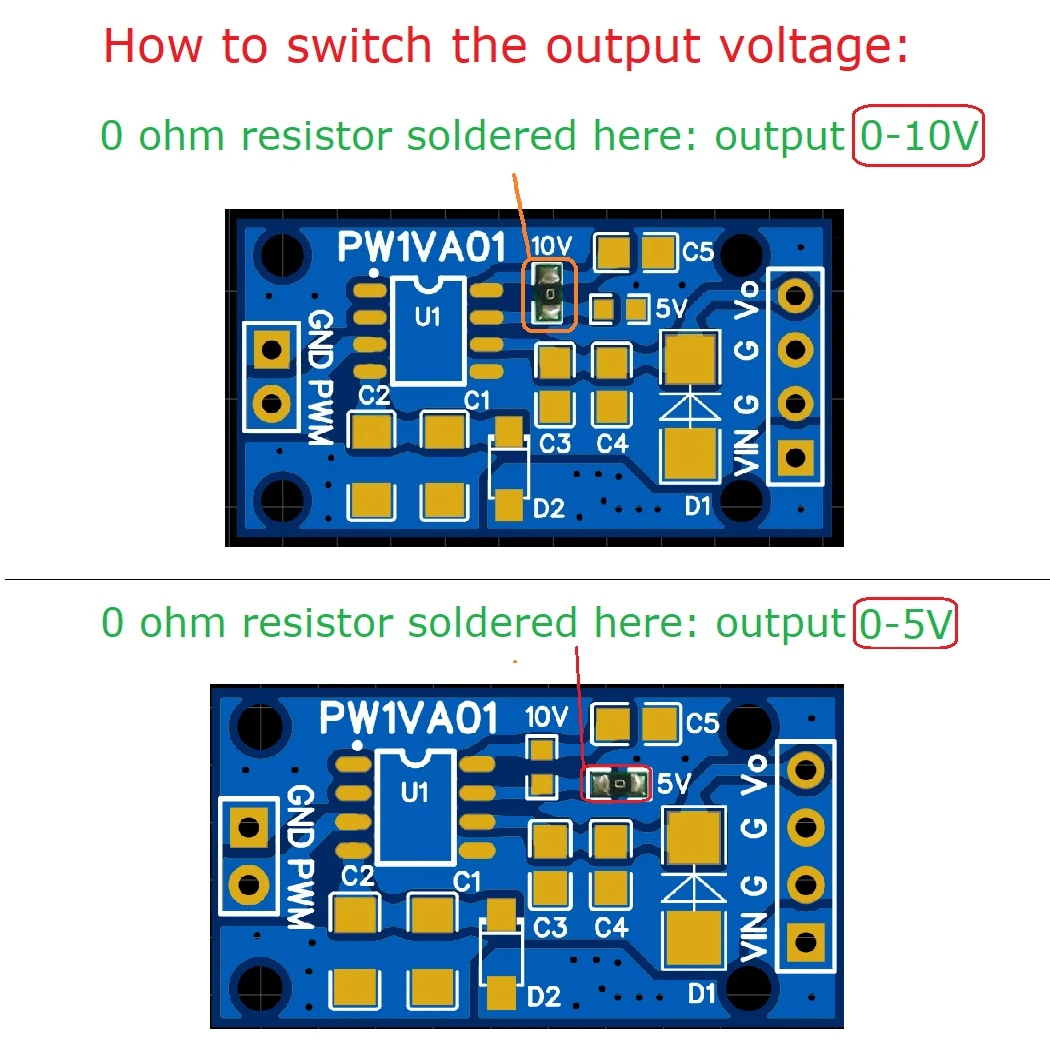

Output voltage range: 0-5V/0-10V

Output voltage error: < 1%

Output voltage linearity error <0.5%

Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V)

Startup time: <2ms

Operating temperature: -40°C to 85°C

Size : 28 x 15 x 6mm

Weight: about 2.1g



Typical Application:



PWM to 0-5V/0-10V Output

for Arduiuo for UNO MEGA PRO DUE

for Raspberr Pi 2 3B+

PLC Industrial control equipment

Motor speed regulation, LED dimming

Inverter, power supply

Industrial analog signal isolation



PW1VA01 input PWM signal with 0%-100% duty cycle, and linearly convert it into 0-5V or 0-10V analog voltage output.

Example 1: If a 50% duty cycle PWM signal is input, PW1VA0 outputs 2.5V (0-5V version)/outputs 5V (0-10V version)

Example 2: If output duty cycle 75% PWM signal, PW1VA0 output 3.75V (0-5V version) / output 7.5V (0-10V version)



Pin description:

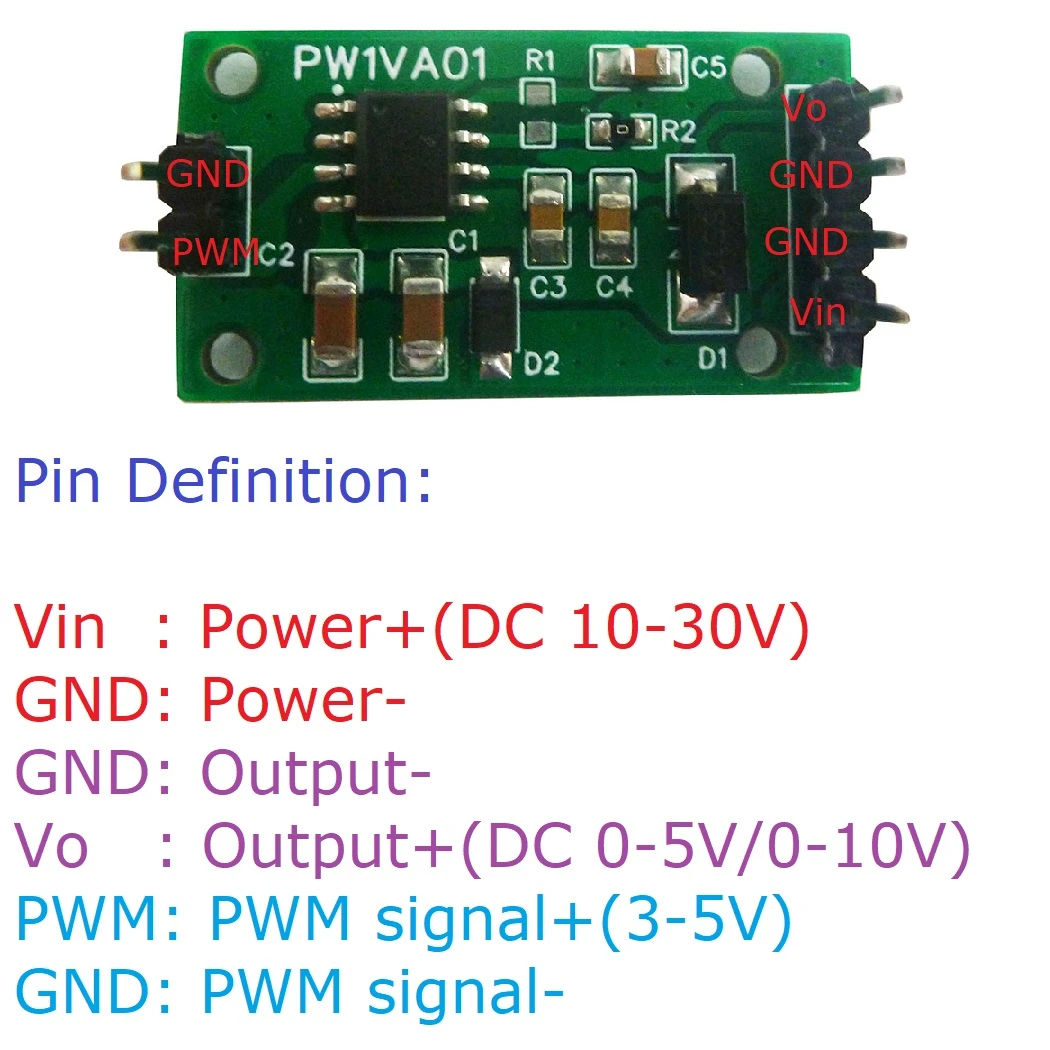

Vin : Power+

GND: Power-

GND: Output-

Vo : Output+

PWM: PWM signal+

GND: PWM signal-

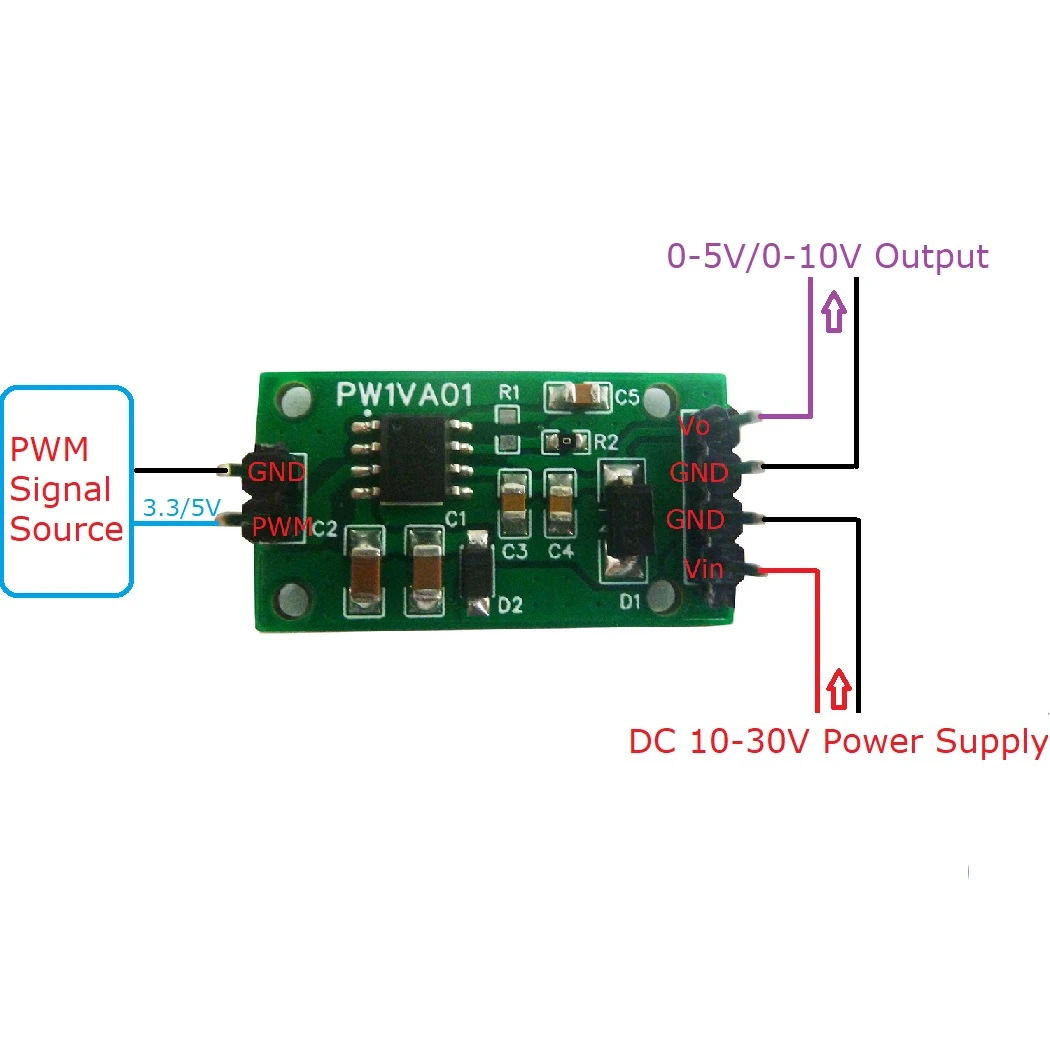

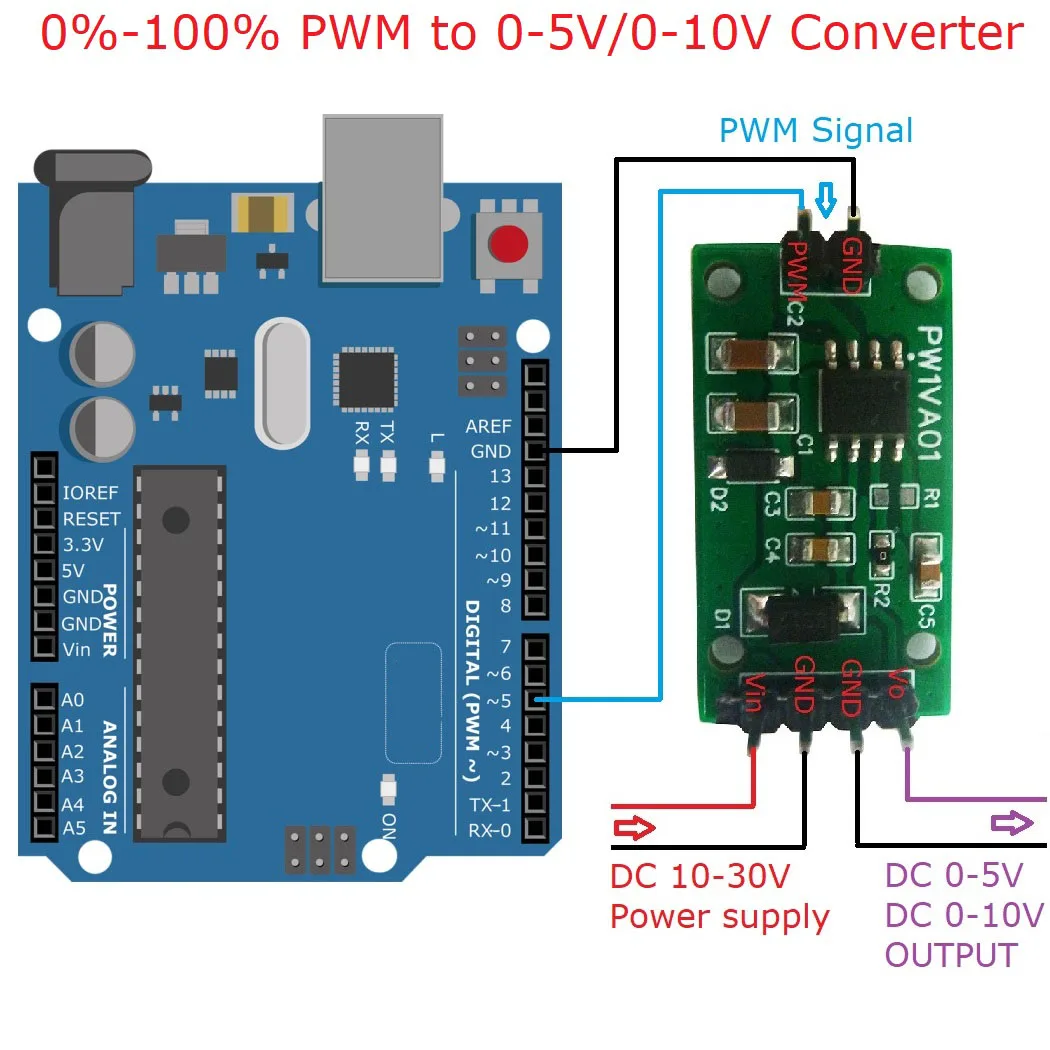

Wiring diagram:

Specifications:
Working Voltage: 10V-30V (recommended 12V/24V)
Working Current: <2mA
PWM Duty Cycle: 0%-100%
PWM Frequency: 50Hz to 50KHz
Output Voltage Range: 0-5V/0-10V
Output Voltage Error: < 1%
Output Voltage Linearity Error <0.5%
Maximum Drive Current Capability: 15MA (DC 12V), 20MA (DC 24V)
Startup Time: <2ms
Operating Temperature: -40°C to 85°C
Size: 28 x 15 x 6mm
Weight: about 2.1g
