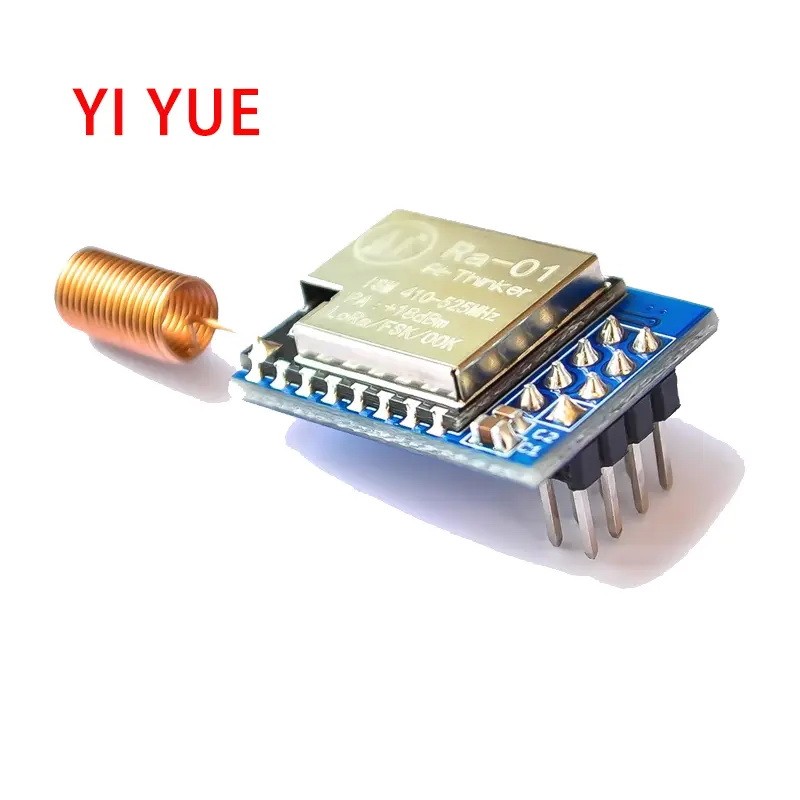

SX1278 LoRa spread spectrum wireless module/433MHz/SPI interface/Anxinke Ra-01 View larger

SX1278 LoRa spread spectrum wireless module/433MHz/SPI interface/Ra-01/Ra-02

SX1278 LoRa spread spectrum wireless module/433MHz/SPI interface/Ra-01/Ra-02

More details

In stock

12,00 € tax incl.

More info

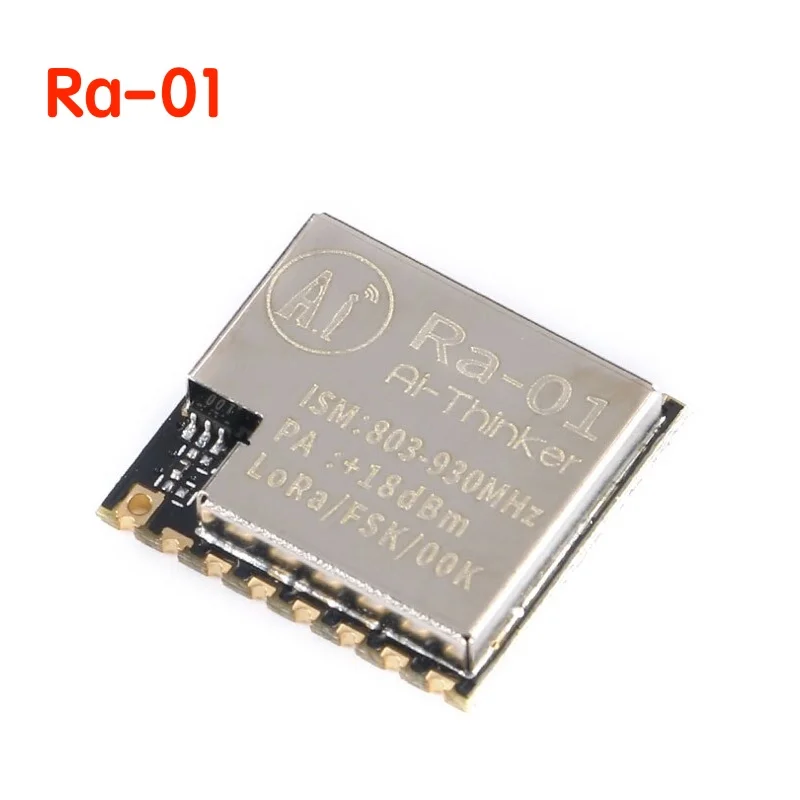

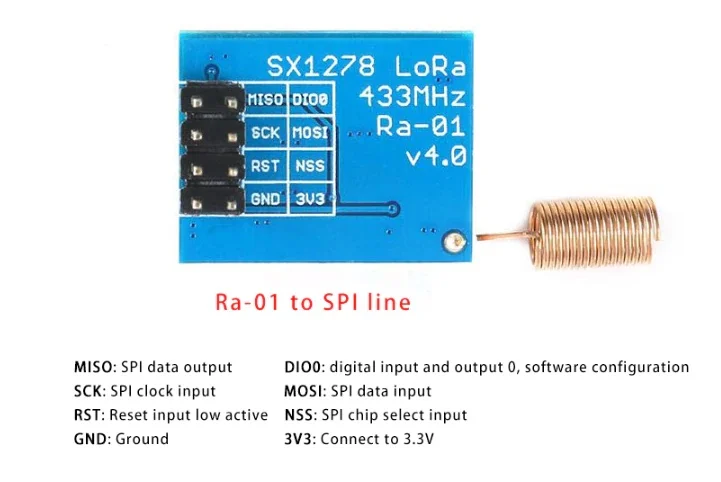

Ra-01

The Ra-01H mainly uses LoRaTM remote modem for ultra long-distance spread spectrum communication, which has strong anti-interference ability and can minimize current consumption. At the same time, the module is compatible with FSK remote modulation and demodulation, which solves the problem that traditional design solutions cannot simultaneously The problem of distance, anti-interference and power consumption.

Parameter:

Support interface: SPI interface
Programmable bit rate: up to 300kbps
Spectrum range: 803- 930MHz
Antenna form: spring antenna
Working voltage: 3.3V
Average operating current (unit: mA): 868MHz:
TX: 103mA Rx: 12.15mA Standby: 1.6mA915MHZ:
TX: 105mA Rx: 12. 15mA Standby: 1. 5mA
Working temperature: -30 ° C ~ 85 ° C
Storage temperature: -40C^ 90°C, <90%RH


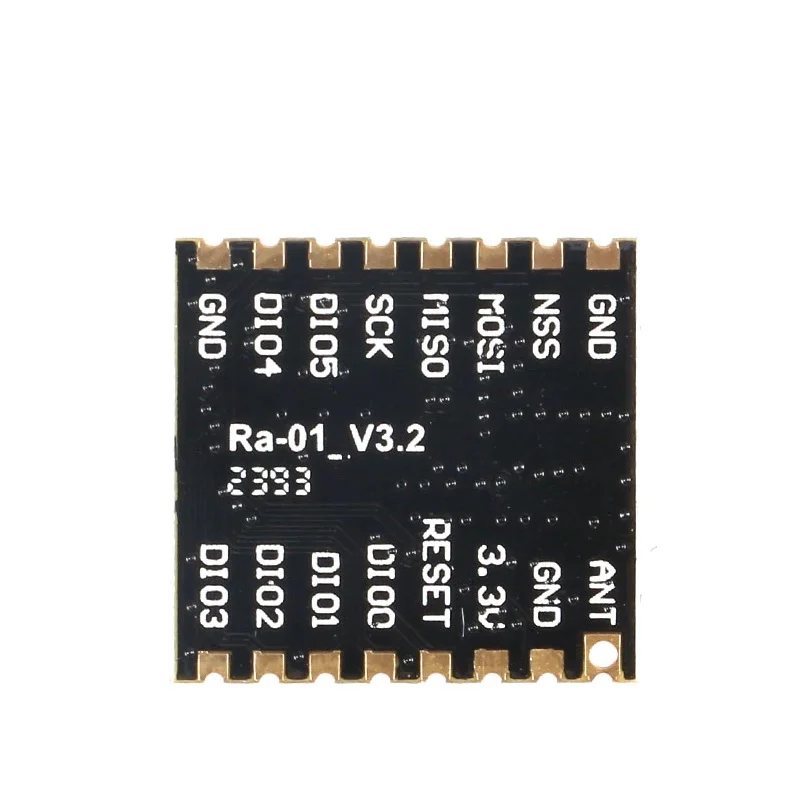

Sf1648c1d56be46dcb8a1aac31be7710dw.jpgS3c146f77866f46c2bbb7d9ae1e0c8cf9f.jpgS0b74254d5f8145a38eda6d702e1b89e4r.jpg

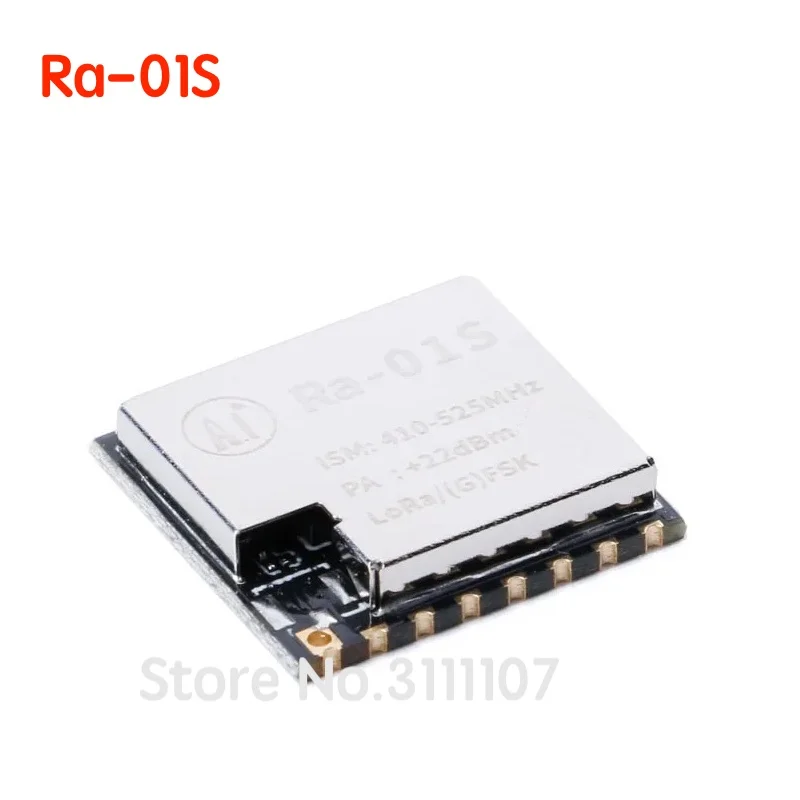

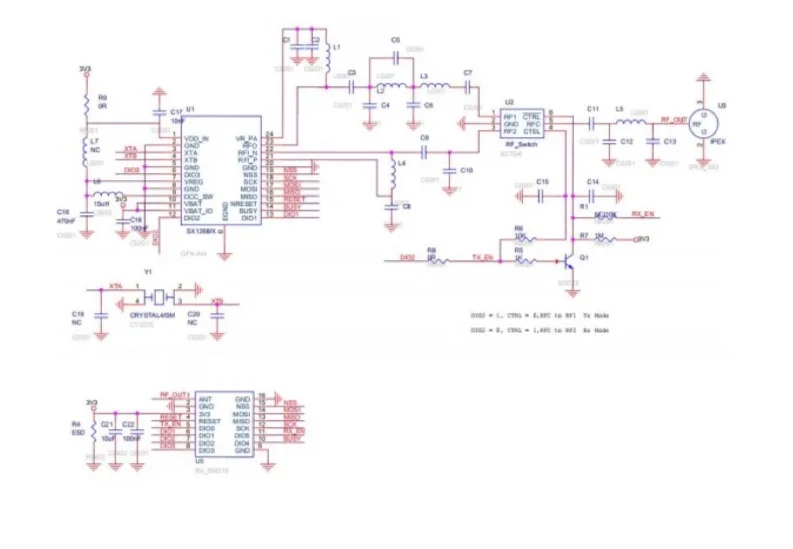

Module model: Ra-01S
Package: SMD16

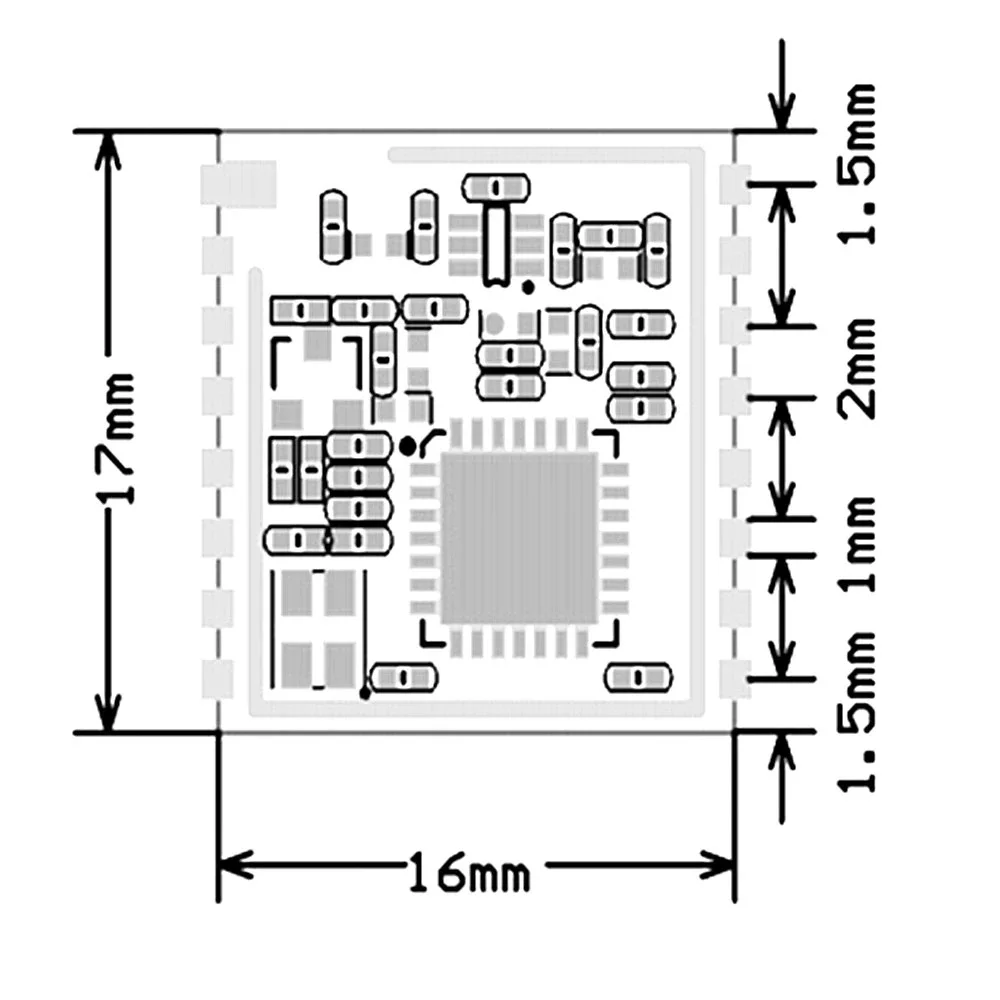

Size: 17*16*3.2(±0.2)MM
Antenna form: Compatible with half-hole pads/through-hole pads (antennas need to be soldered)/IPEX holder
Spectrum range: 410MHz~525MHz
Working temperature: -40 ℃ ~ 85 ℃
Storage environment: -40 ℃ ~ 125 ℃, <90%RH
Power supply range: 2.7~3.6V, typical value 3.3V, current greater than 200mA
Support interface: SPI
Programmable bit rate up to: 300kbp

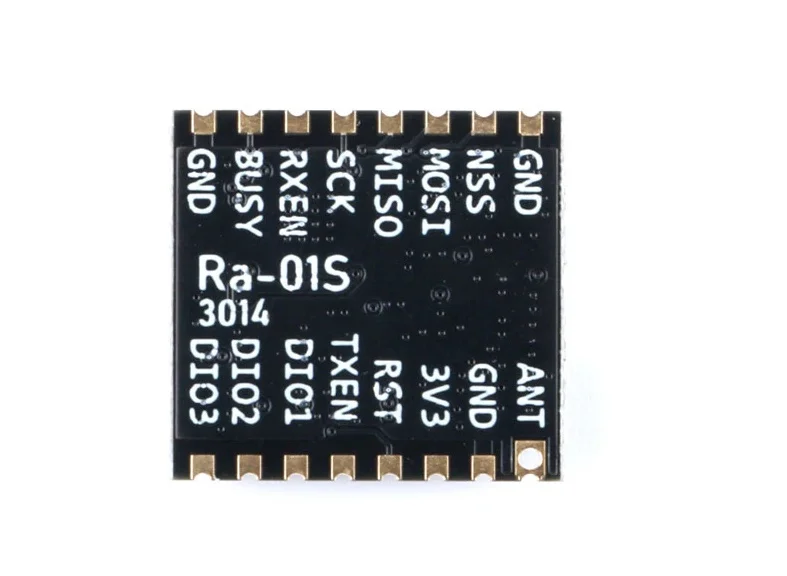

Pin Description:
1. ANT: Connect the antenna
2. GND: Ground
3. 3.3V: Typical 3.3V power supply
4. RESET: Reset pin
5. TXEN: RF control port
6. DIO1: Digital IO1 software configuration
7. DIO2: Digital IO2 software configuration
8. DIO3: Digital IO3 software configuration
9. GND: Ground
10. BUSY: Status indication pin
11. RXEN: RF control port
12. SCK: SPI clock input
13. MISO: SPI data output
14. MOSI: SPI data input
15. NSS: SPI chip select input
16. GND: Ground


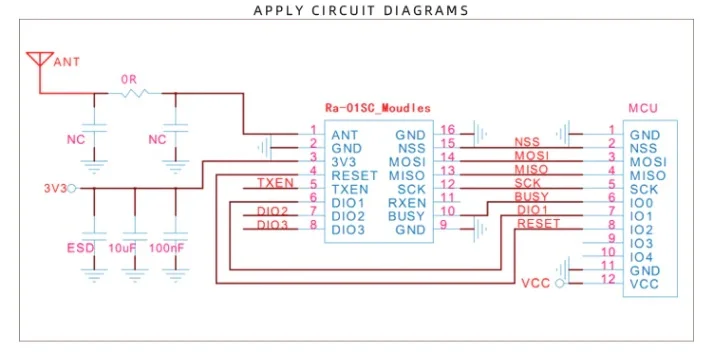

Ra-01SC

Features: Based on LLCC68 chip development, LLCC68 has a high of over -123dBm

Sensitivity, +22dBm power output, long transmission distance and high reliability. Ra-01SC module

The group is mainly used for ultra-long-distance spread spectrum communication, compatible with FSK remote modulation and demodulation technology, solving

The wireless design plan of the transmission can not take into account the problems of transmission distance, anti-interference line, and low power consumption at the same time.

o Suitable for wireless meter reading. Scenes such as building automation and security systems

Module model: Ra 01SC

Package: SMD 16

Size (mm): 17*16*3.2 (±0.2) mm

Communication interface: SPI

Programmable bit rate: up to 300Kbps

Spectrum range: 410-525MHZ

Antenna form: compatible with half-hole/through-hole pads (antennas need to be soldered)/IPCX holder

Maximum transmit power: +22dBm

Power supply range: 2.7V-3.6V, typical value 3.3V, current greater than 200mA

Working temperature: 40°C~85°C

Storage environment: 40℃~125℃, <90%RH

Transmission distance: open field with spring antenna, measured 2.8km

Crystal frequency: 32MHz


The Ra-01H mainly uses LoRaTM remote modem for ultra long-distance spread spectrum communication, which has strong anti-interference ability and can minimize current consumption. At the same time, the module is compatible with FSK remote modulation and demodulation, which solves the problem that traditional design solutions cannot simultaneously The problem of distance, anti-interference and power consumption.

Parameter:

Support interface: SPI interface
Programmable bit rate: up to 300kbps
Spectrum range: 803- 930MHz
Antenna form: spring antenna
Working voltage: 3.3V
Average operating current (unit: mA): 868MHz:
TX: 103mA Rx: 12.15mA Standby: 1.6mA915MHZ:
TX: 105mA Rx: 12. 15mA Standby: 1. 5mA
Working temperature: -30 ° C ~ 85 ° C
Storage temperature: -40C^ 90°C, <90%RH



Description:
Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa  modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa  modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.
Feature:
LoRa Spread Spectrum modulation technology
Constant RF power output at + 20dBm-100mW voltage change
High sensitivity: down to -148dBm
Half-duplex SPI communication
Programmable bit rates up to 300kbps
Supports FSK, GFSK, MSK, GMSK, LoRa  and OOK modulation modes
127dB RSSI dynamic range
Automatic RF signal detection, CAD mode and very high speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
Spring Antenna
Package Included:

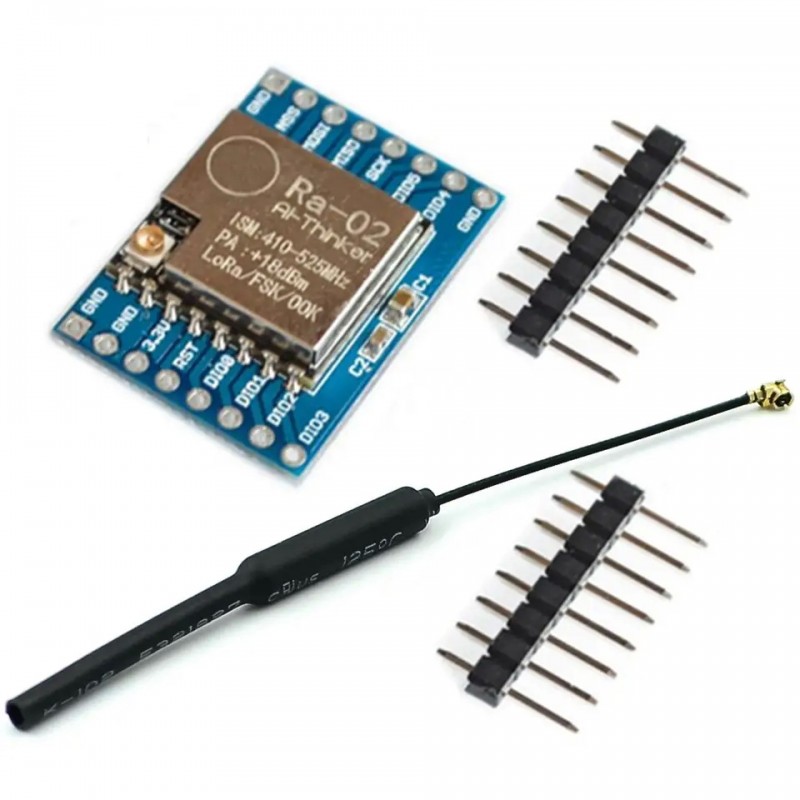

1 * LoRa Ra-02 SX1278 433M Wireless Module
