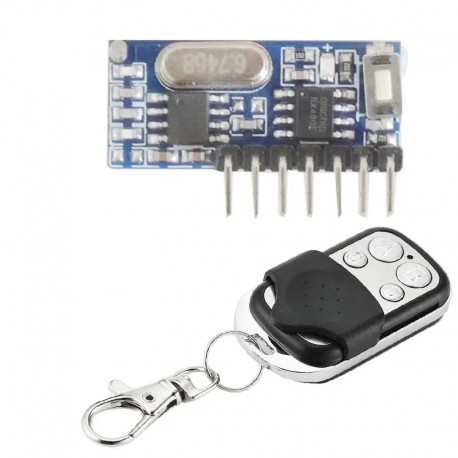

433Mhz RF Universal Remote Control Mini Relay Receiver Decoding Module and 4 button Transmitter Wireless 4CH View larger
Previous Next

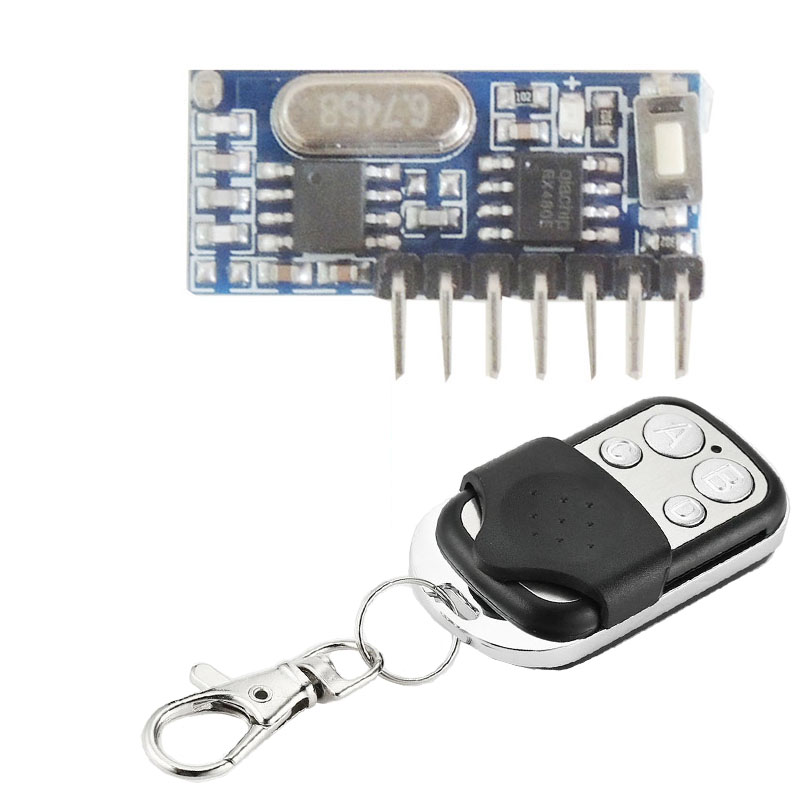

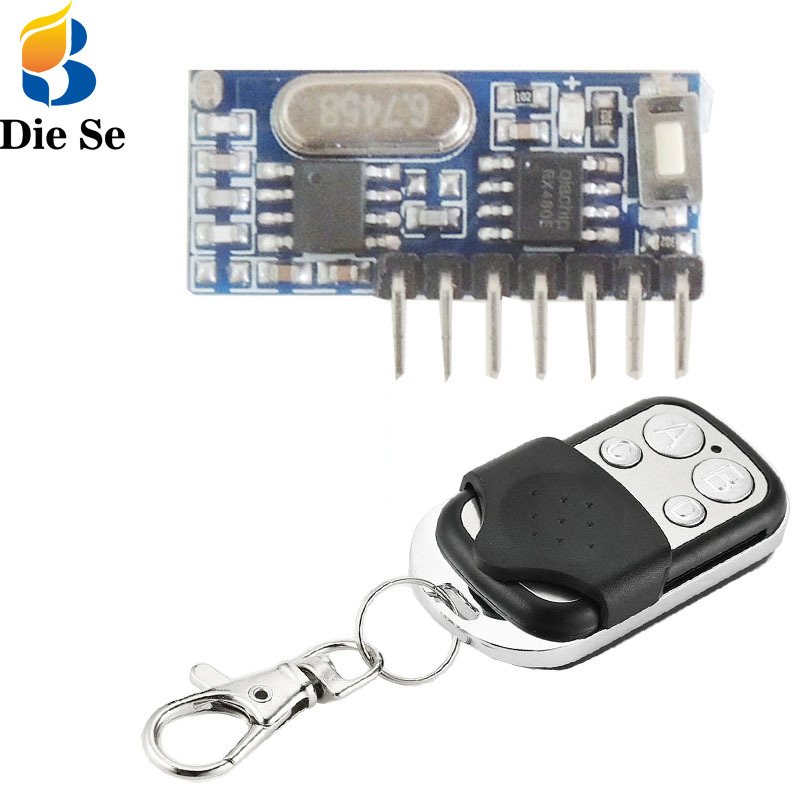

433Mhz RF Universal Remote Control Mini Relay Receiver Decoding Module and 4 button Transmitter Wireless 4CH

433Mhz RF Universal Remote Control Mini Relay Receiver Decoding Module and 4 button Transmitter Wireless 4CH

More details

In stock

15,00 € tax incl.

More info

433Mhz Wireless Transmitter and Receiver Module Learning Code EV1527 Decoding Module 4CH output With Learning Button DIY remote



 Product Features
Receiver module(RX480E)

  • Working voltage  :  DC 3.3~5V

  • Quiescent Current  :  less than 5MA

  • Output current  :  10mA

  • Channels  :  4 Channels

  • RF frequency  :  433MHz

  • Frequency band  :  +0.2MHz, -0.2MHz

  • Working temperature  :  -25~+75 degrees

  • Receiving Sensitivity  :  -108dB

  • Amount of storage remote controls  :  25 pieces

  • Support encoding  :  EV1527 Leaning code

  • RF Operating mode   : ASK superheterodyne wireless reception

  • Size  :  28*12.3*6 (mm)

  • Receiving range  :  above 15 meters (Open space)

  • Remote operating mode  :  Momentary Mode / Toggle Mode / Latched Mode

HTB1rRZdRpzqK1RjSZFoq6zfcXXav.jpg?width=
Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output(When any pin of D0-D3 outputs the level signal, VT is output synchronously; VT is usually used as the output indicator.)

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
HTB1IPMiRpzqK1RjSZFvq6AB7VXay.jpg?width=
Application example

HTB1wV.iRwHqK1RjSZJnq6zNLpXaP.jpg?width=

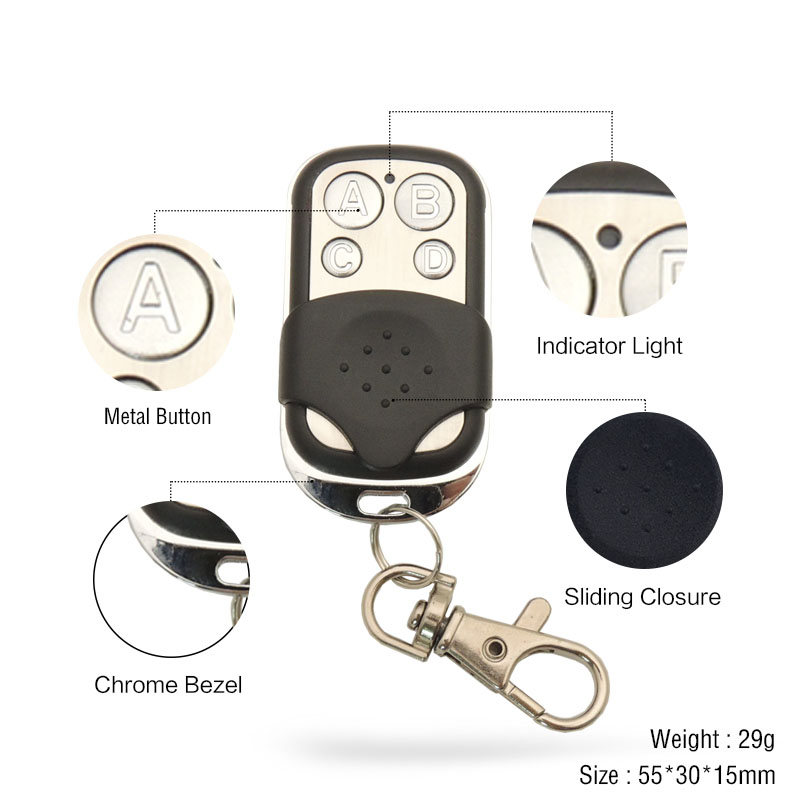

Transmitter
Note:
This one is not for clone! It is used for linking the receiever.
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only have the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don't offer retail package, but we will pack it well before shipped out.

  • support encoding : Learning code (1527 encoding )

  • Transmitting distance : Open space is more than 50 meters

  • Battery : One 27A/12V Battery

  • RF frequency : 433MHz

  • Shell : Plastic


H855416eb4e9d4177876b430426c261c8A.jpg?w

  Package include
As the options show.


  Operating Mode

You can match the Remote Control with the Receiver Switch Module in 3 modes.

Momentary Mode:

1. Press and hold one button, relay "1" will turn on;

2. Release the button, this relay "1" will turn off.

Toggle Mode:

1. Press button "A", relay "1" will turn on;

2. Press button "A" again, this relay "1" will turn off.

Latched mode:

1. Press button "A", relay "1" will turn on;

2. Press button "B", relay "2" will turn on, at the same time relay "1" will turn off.


  Reset

1.Delete the existing data about operating modes

Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

HTB1XvZgRq6qK1RjSZFmq6x0PFXa3.jpg?width=


2.Set up

Set up(Momentary)

1. Press the learning button(on the Receiver) once. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds. Succeed.

Set up(Toggle)

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;

2. Press one button "A" on the remote control. Wait for 3 seconds. Succeed.

Set up(Latched)

1. Press the learning button(on the Receiver) triple. Wait for 3 seconds;

2. Press button "A" on the remote control. Wait for 3 seconds. Succeed.

Package Included (The 3 options are as follows):


1)  Receiving Module and Remote Control

RX480E-4 Receiver Module  x1 PCS
KT16-4 Remote control         x1 PCS (H26adea1b842d414983c43ad92e4cf1cdp.jpg?w

2)  Receiving Module and Remote Control


RX480E-4 Receiver Module      x1 PCS
KT1527-4 Remote control         x1 PCS
Hf3540c11be6b4daa970adffcd389928fn.jpg?w

3)  Receiving Module and Remote Control


RX480E-4 Receiver Module           x1 PCS
KT02-117S-4 Remote control         x1 PCS
H97e43339eef74bbfa3928f1f656f630en.jpg?w
Note:
*The package Included different products because you choose a different package.*
H3007ea337f6043afb8d43576a87c7f5fX.jpg?w
Compatible transmitter encoding type: EV1527
If your transmitters are not using the  encoding EV1527,
they will not be connection to the receiver.,



Application environment:

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

[Transmitter]
Note:
1.This remote control only support the learning code (1527) of the receiver
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don't offer retail package, but we will pack it well before shipped out.



Product Description:

[Receiver module] Product Model:    RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current :  Less than 5mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode: inching, self-locking, interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.
H40093b42fd0349ad9c893833fe6ccee0H.jpg?w

Pins Instruction

GND : ground or negative pole
+V    : DC3.3~5V input
D0    : Data output
D1    : Data output
D2    : Data output
D3    : Data output
VT    : LED and Learning button Output


H7d2e5a2bbe2340fbb1f0a5087497b0e5W.jpg?w

Hd013c1b53d0146ccac6e31322600b0061.jpg?w

H3e6ea5ffaead4d74a12a53d966133dfag.jpg?w

H3007ea337f6043afb8d43576a87c7f5fX.jpg?w
How To Programming:
1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
2. Learning remote code: press learning key once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.
Button usage (sets mode and starts pairing process):
Press once ( the button on the receiver ) : Inching mode (Momentary Mode)
Press twice     ( the button on the receiver )         : self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times ( the button on the receiver ) : interlocked mode (selected channel active and be cleared, if another channel becomes active)
(This instructions is provided by Manfred, thanks to Manfred)
Application example
H3e22b1074c4e4d30aea43dc17739f271e.jpg?w
H3a638ba6bcc841daafed9f7bf612716aj.jpg?wH2a6be893205540dfb22b90ade90ec7635.jpg?w

Hd4f7e9a5dd904183809d61933e5800b6D.jpg?wH676f4ac48fdf4a7190f05d81b2826172L.jpg?w

Specifications:
Use: Automated curtains, Electronic Gates Access Control System, Electrical Appliances Control, Universal
Encoding Type: EV1527 learning code, fixed code
Wireless Communication: RF
Receiving Sensitivity: -108dB
Working Temperature: -25~75
Output: 4 channel CMOS level signal

Features:
|Somfy Rts 4|Rf To Wifi|Rf 760|

**Versatile and User-Friendly Control**
The GERMA RF 433mhz Transmitter and Receiver Module is a versatile solution for automating various devices and systems. With its universal compatibility and support for EV1527 learning code, this kit is ideal for a wide range of applications, from controlling automated curtains to managing electronic gates and electrical appliances. The module's robust design ensures reliable performance in temperatures ranging from -25 to 75 degrees Celsius, making it suitable for both indoor and outdoor use.

**Effortless Setup and Expandable Functionality**
Setting up the GERMA RF 433mhz Transmitter and Receiver Module is a breeze, thanks to its user-friendly design and straightforward programming process. The included KT16-4 Remote Control and KT1527-4 Remote Control, both equipped with batteries, are ready to use right out of the box. The module's 4 channel CMOS level signal output allows for the control of multiple devices simultaneously, making it a perfect fit for complex systems requiring synchronized operation.

**Reliable and Secure Communication**
The GERMA RF 433mhz Transmitter and Receiver Module boasts a high receiving sensitivity of -108dB, ensuring reliable communication even from a distance. The fixed code and learning code options provide flexibility in system security, allowing users to choose between a pre-programmed setup or a customizable learning code for added peace of mind. Whether you're managing a garage door access control system or controlling lighting in your home, this kit offers a secure and efficient solution for your automation needs.
