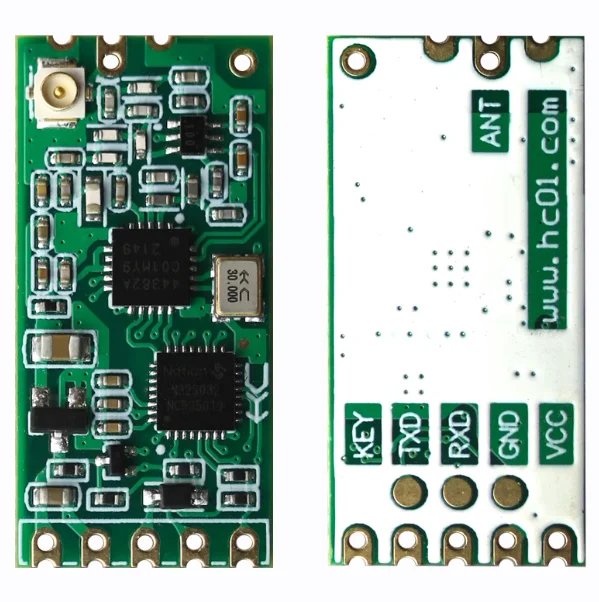

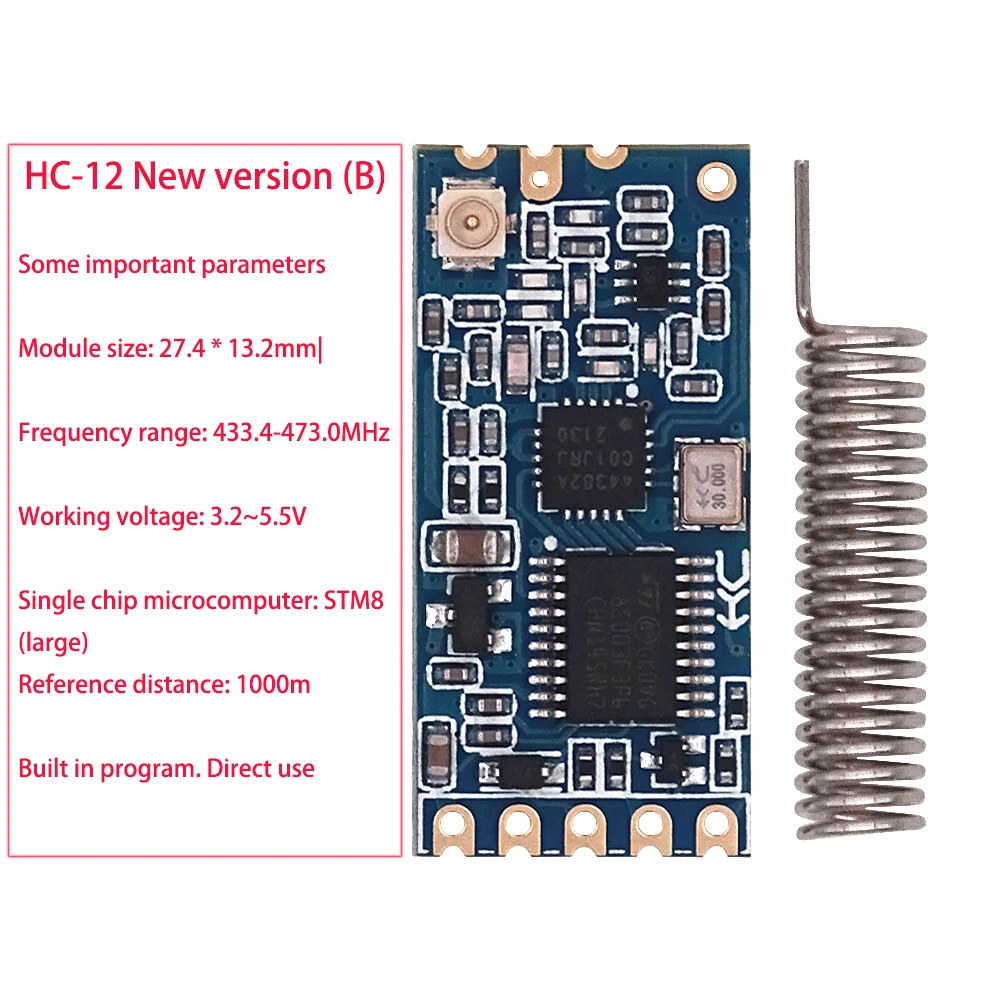

• HC-12 New Version V3.0

• Important parameters in version V3.0

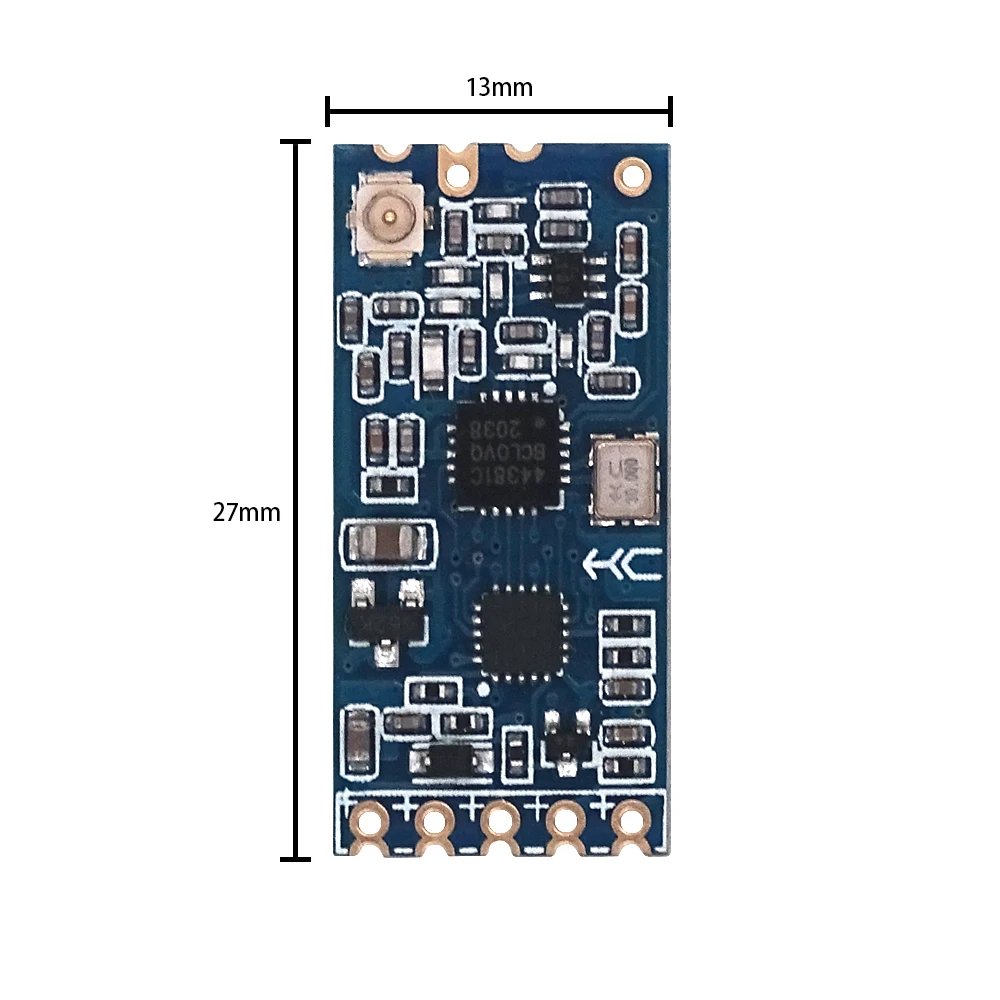

• Module size: 27.4 * 13.2mm

• Frequency range: 433.4~473.0MHz

• Working voltage: 3.2-5.5V

• Single chip computer: N32S032

• Reference distance: 1000 meters

• Built in firmware, self connect when powered on

• At least 2 modules are required for interconnection

•

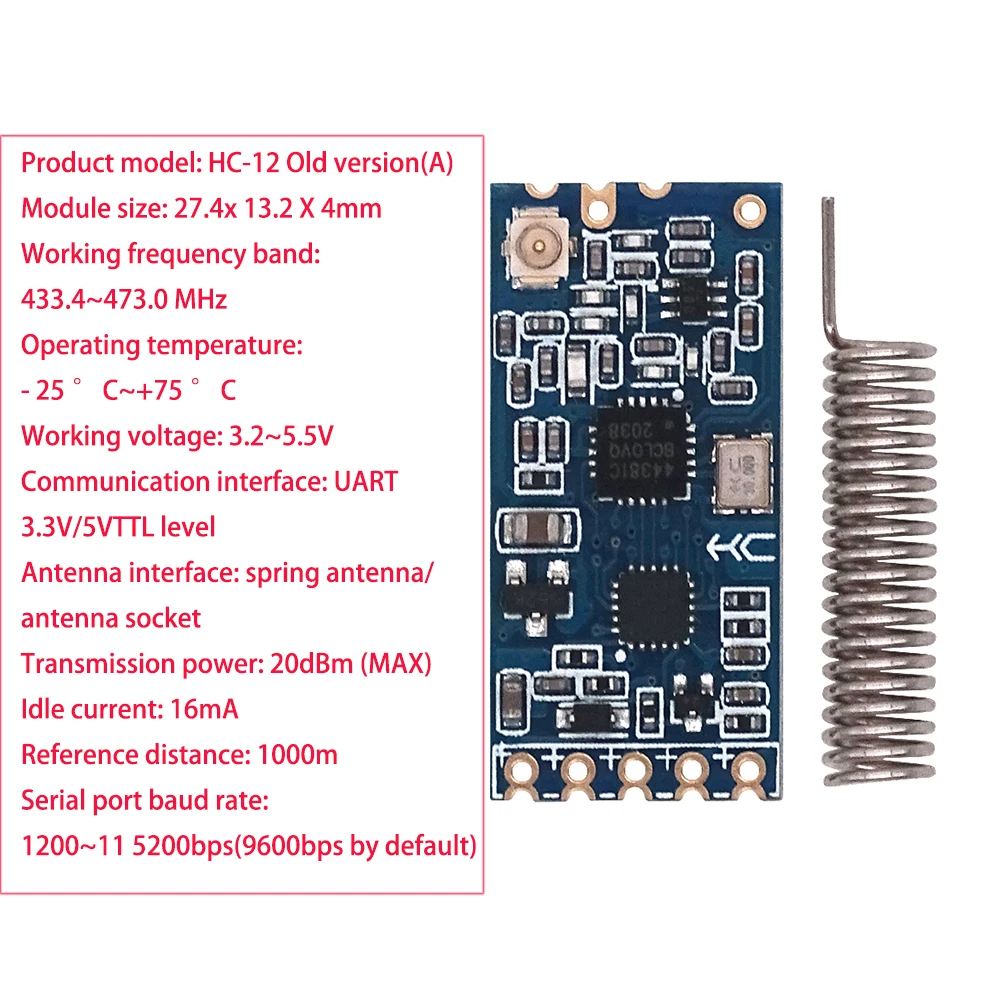

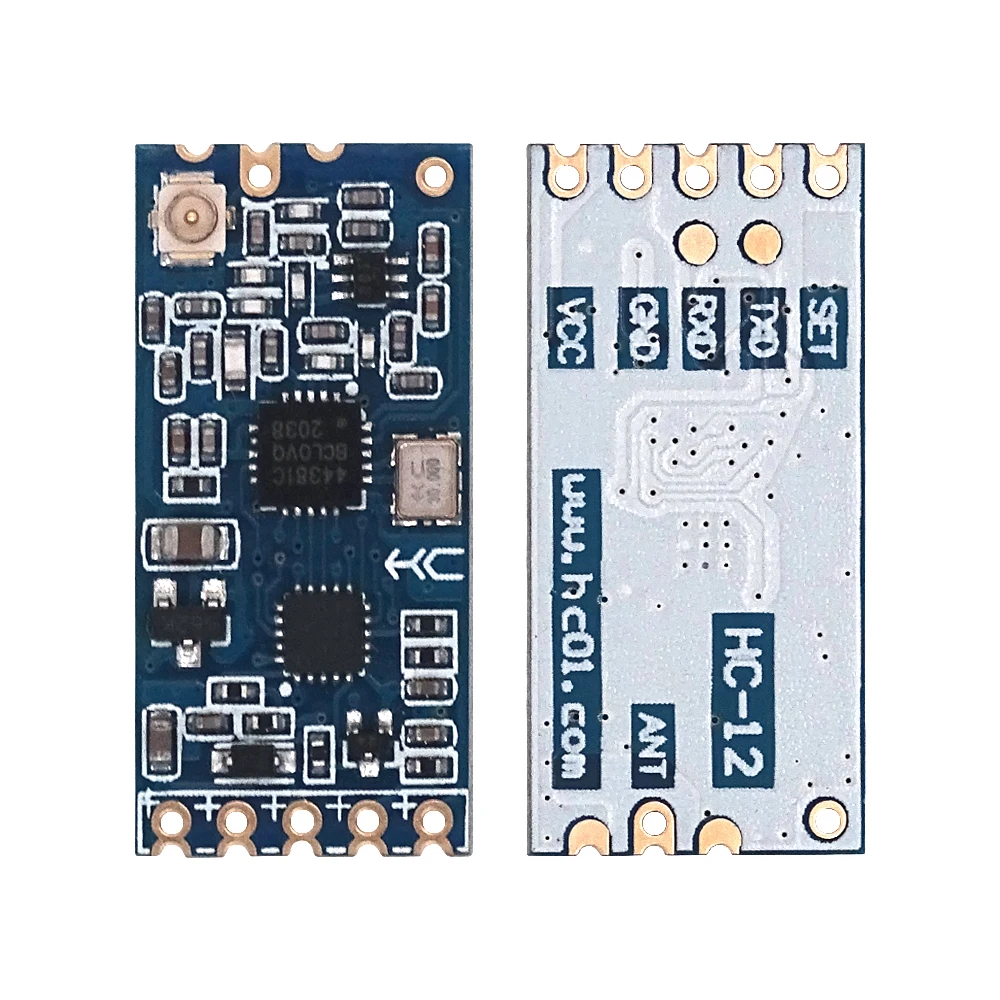

• HC-12 Old Version V2.6

• Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)

     Power supply voltage : 3.2 V -- 5.5 V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)

     Default communication distance : about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).

     Default idle current: 16 ma (modules in different working mode of different current).

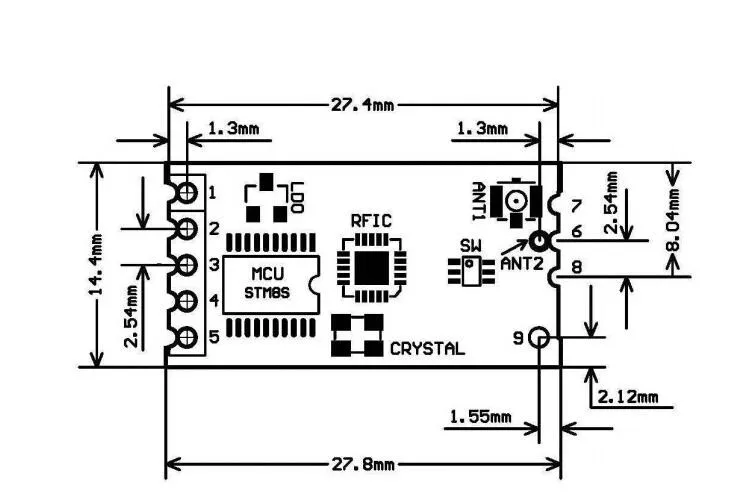

     Module size: 27.8mm*14.4mm*4m

     1pcs HC-12 Module

  • Description:

  •

  • CFsunbird

Package Included:

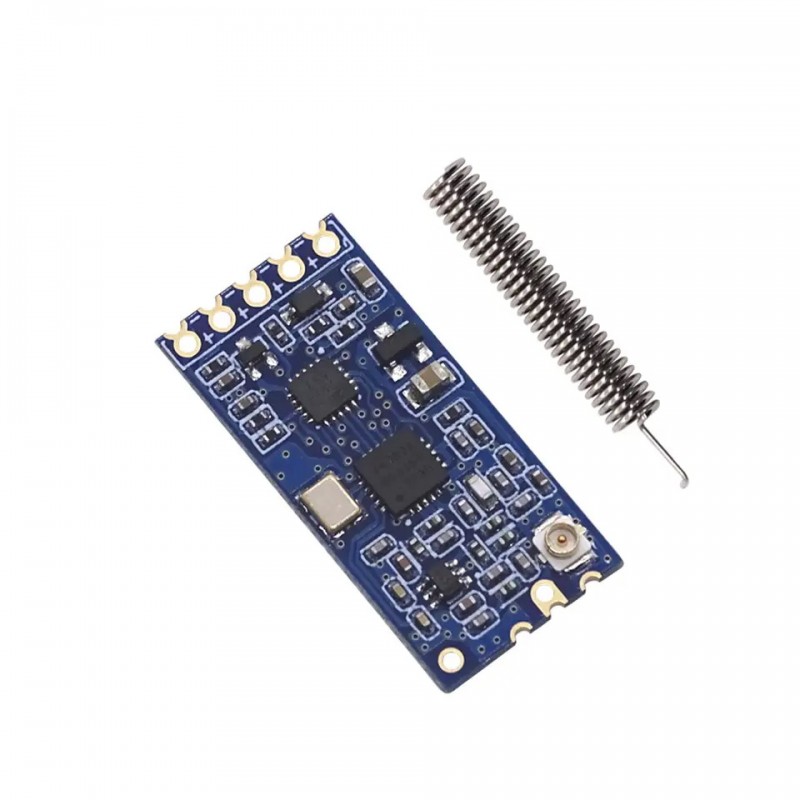

1 x 433Mhz HC-12 SI4463 Wireless Serial Port Module
