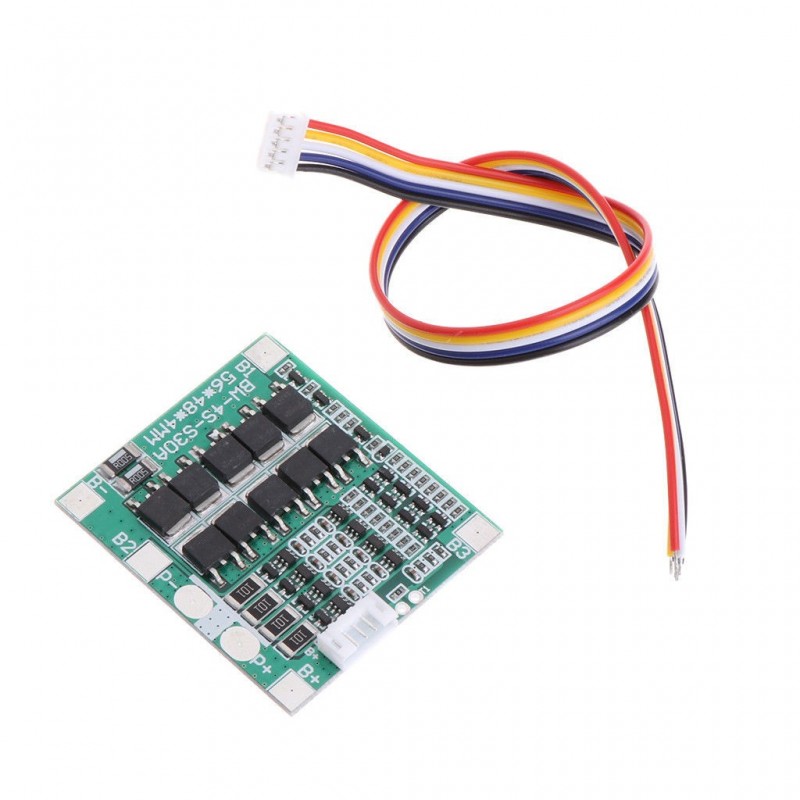

4S 14.8V 30A PCB BMS Protection Board For 18650 Li-ion Lithium Battery Cell View larger

4S 14.8V 30A PCB BMS Protection Board For 18650 Li-ion Lithium Battery Cell

(SKU): BW-4S-S30A/HX-4S-F30A

4S 14.8V 30A PCB BMS Protection Board For 18650 Li-ion Lithium Battery Cell

More details

In stock

7,00 € tax incl.

More info

  • 4S 14.8V 30A
  • Name:Protection board
    Specifications
    Over charge detection voltage: 4.28+ 0.05 V
    Over charging voltage: 4.095-4.195V
    Over discharge voltage: 2.55±0.08
    Over charge detection delay time 0.1s
    Temperature range -30-80
    Short circuit detection delay time: 100ms
    Over current detection delay time: 500 ms
    Balanced current: 60mA
    Working current: 30A
    Over current: 60A
    Short circuit protection function: there is, disconnect the load can be self recovery.
    Size:4.5* 5.9cm

    Main function:
    Over charge protection, over discharge protection function, short circuit protection
    function, over current protection function, balance.

    Interface definition:
    Charging port of the plate and the discharge port is the same, both positive and B- connecting
    battery"-", P- charging port and port on the negative electrode;
    B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm;
    The battery charging detection interface with DC output in the form of needle. Do the same mouth
    when the N- is not wiring.
