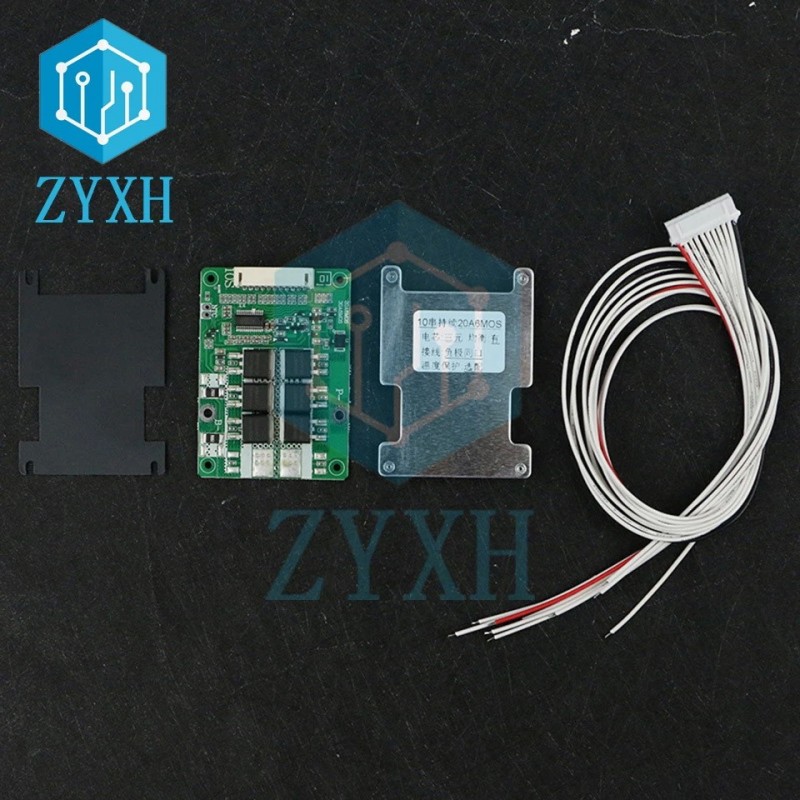

BMS 10S 36V 20A Common Port with Balance

Type: ternary lithium/10 string/36V
Connection method: negative pole-same port

Discharge
Over-discharge protection voltage: 2.7V±0.03V
Over-discharge recovery voltage: 3.0V±0.03V
Over-discharge protection delay time: 1000ms
Continuous discharge current: 20A
Overcurrent protection current: 80A±5A
Overcurrent protection delay: 1000ms
Short circuit protection delay: 300us
Over current, short circuit recovery conditions: charge recovery or disconnect the load

Recharge
Overcharge protection voltage: 4.25±0.015V
Overcharge recovery voltage: 4.15±0.015V
Overcharge protection delay time: 1000ms
Continuous charging current: 20A
Charging protection current: 40A±2.5A
Charge equalization voltage: 4.2V±0.025V
Charge equalization current: 43mA
0V start charging: Allowed (support 1.2V minimum)
Charger voltage: 10*4.3V (recommended)
Working power consumption: ≤40uA
Main circuit conduction internal resistance: ≤10mΩ
Temperature range: -40 to +80°C
Disconnection protection: Yes
Size: 69*50*9.5MM
