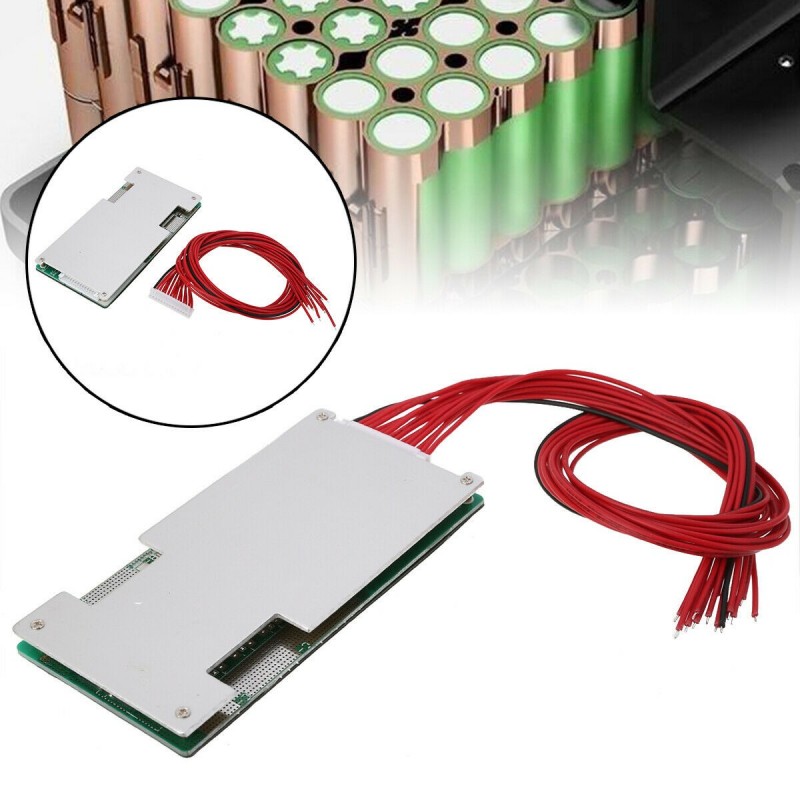

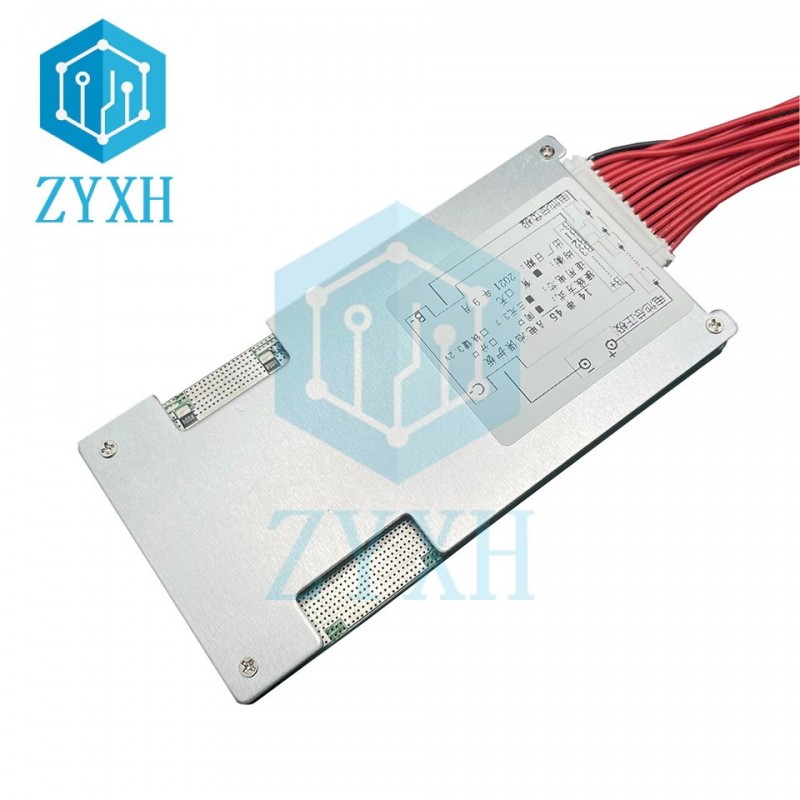

BMS 14S 52V 45A 3.6V 3.7V 18650 Li-ion Battery Packs Balancer Charge Board Common Port Short Circuit Protection For Escooter

Reference: (SKU): HW0002405

14S 45A 50.4V Lithium Li-Ion Battery Protection Board With Balance BMS PCB

In stock

Specification:

Discharge	Continuous Discharging Current	45 A
Discharge	Instantaneous Discharge Current	120 A
Charge	Charging Voltage	58.8 V
Charge	Charging Current	45 A
Overcharge Protect	Over-charge Detect	4.28±0.05 V
	Protect Delay	100 mS
	Over-charge release	4.08±0.05 V
Balance	Detect Voltage	4.2±0.025 V
	Release Voltage	4.2±0.05 V
	Balance Current	60±5 mA
Over-discharge Protect	Over-discharge Detect	2.55±0.08 V
	Over-discharge Detect delay	50 mS
	Release Voltage	2.9±0.1 V
Over-current Protect	Detect Voltage	150 mV
	Detect Delay	15 mS
	Current Detect	130±10 A
	Release Condition	Cut Load
Short-circuit Protect	Protect Condition	Cut Load
	Detect Delay	200 uS
	Release Condition	Cut Load
Temperature Protect	Temperature Protect	/ ℃
Resistance	Inner	≤15 mΩ
Self-Consumption	Working Current	≤60 uA
Self-Consumption	Sleep Current (when Over-discharge)	≤10 uA
Working Temperature	Range	-30/+80 ℃

Attention When Connecting:

When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage ≦0.05V, IR≦15 mΩ, capacity≦30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series.

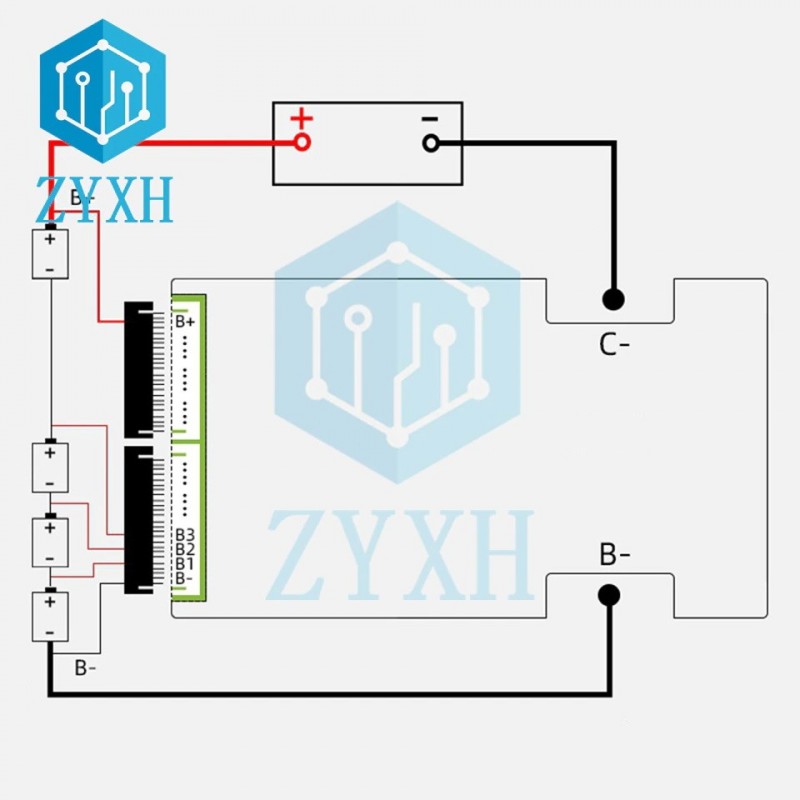

Connection:

1. Connect charging /discharging wire, battery pack negative wire.
2. After confirm the wires are connected OK, plug the connector cable in the BMS
Do not plug connector cable in the BMS before connect wire.
Attention, ESD protection during work.
