Description:
OOTDTY

- 3 model( Forward/Brake/Reverse running mode) fits for various vehicles.
- High efficiency design, light weight, reliable and very affordable.quality Water-proof and dust-proof,suitable for different Situations.
- Compact size, suitable for various car chassis.

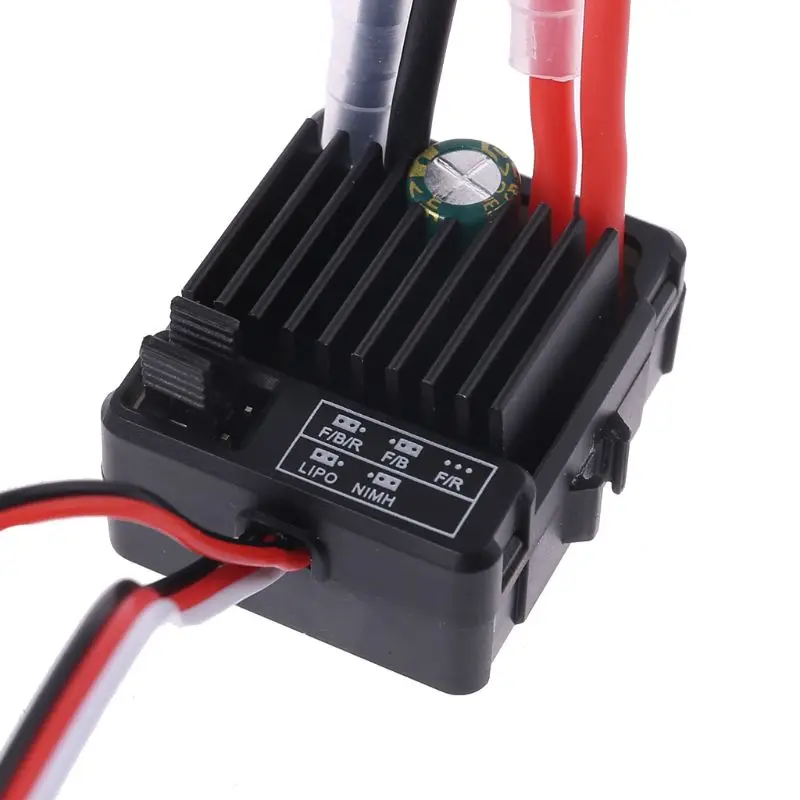

- Easy to set and easy to use the ESC parameters with jumpers and automatic throttle range calibration.
- Great current endurance capability and Great built-in BEC output capacity.

Specification:
- Small size with built-in capacitor module.
- Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
- Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
- (Fwd =Forward, Br=Brake, Rev=Reverse)
- Fwd. Cont. / Peak Current: 60A /360A
- Rev. Cont. / Peak Current: 30A /180A
- Voltage Range: 2-3S Lipo or 5-9 NiMH

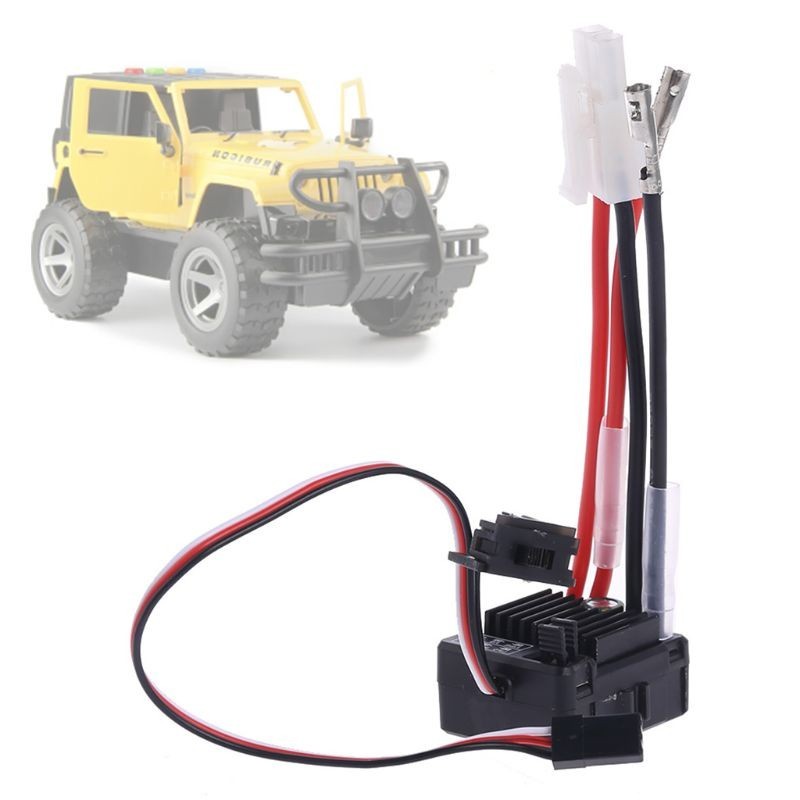

- Cars Applicable: 1/10: Car, Buggy, Short Course Monster, Truggy, Rock Crawler and Tank

- Motor Limit:
- 2S Lipo or 6 NiMH
- 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
- 3S Lipo or 9 NiMH
- 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
- 4S Lipo or 12 NiMH
- Not Available
- Resistance: Fwd 0.001Ω, Rev 0.002Ω
- BEC Output: 2A/5V (Linear Mode)
- PWM Frequency: 1KHz
- Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
- Net Weight: 36g
Size Chart:
Size:34x28x22mm/1.3x1.1x0.9inch

Package Includes:
1 piece ESC

Note:
Current and Voltage should perfectly match the machine,over the Peak will make damage to your machine
