Description:

Item Brand:Flipsky

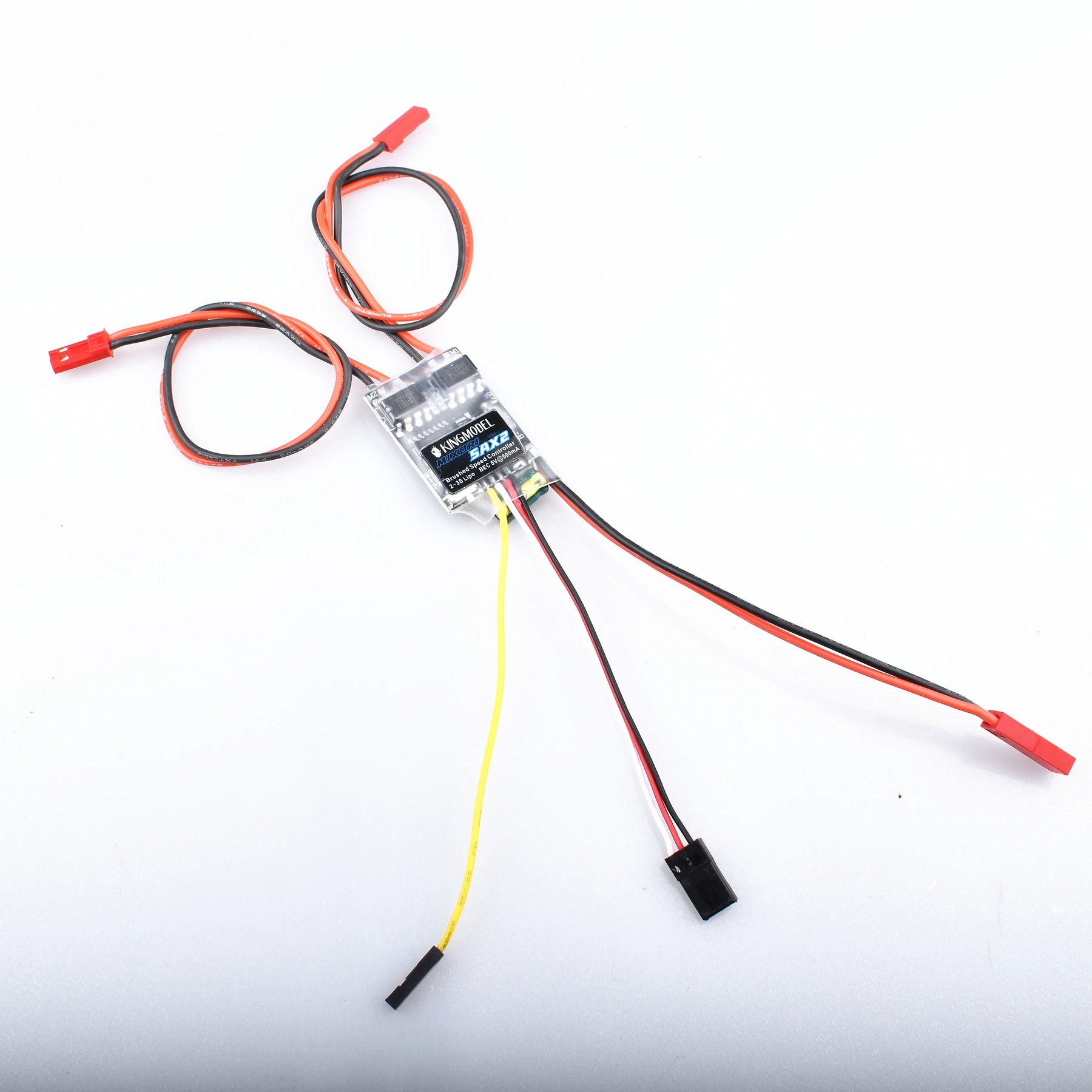

Item Name:5AX2 brushed esc

Material:Metal and other parts

Color:As shown

Product Size:24*45mm(board size is 24*33mm)

Product Weight:

Compatible With:RC car vehicles airplane models

Specification:

Rating voltage: 6V-14V (safe for 2 / 3S lithium battery)

Output current: single channel 5A (single channel previous 13A)

Control signal: PPM signal

Features:

There is a power-on prompt

You will hear a beep from the motor, prompting you to power on

Start at the centre position

Throttle channel 1 is 1500, you will hear the motor beep, and the ESC will start

Out of control protection

If the signal is lost, the throttle needs to be returned to the center and unlocked again for safety and motor protection.

The signal is abnormal : PPM1 signal is greater than 2.1MS or less than 0.9MS, abnormal signal is equivalent to signal loss.

Over current protection

130 degree overheat protection, and hardware over current protection

Power-off protection

Power supply voltage is lower than 4V, ESC restart protection

This ESC has three modes, choose it before before power on(toggle switch)

Mixed control (differential speed) control mode by toggling switch inward

The two outputs are controlled by two PPM signals to achieve differential speed control, and a differential remote control is required.

Two-way synchronous control mode (switch inward)

The output power of the two channels is the same (only connected to PPM1, not connected to PPM2), and also forward and reverse.

Two independent control modes (switch extension)

MC1 is consistent with PPM1, and MC2 is consistent with PPM2

Instructions for use:

Use HGL-YK01(it not included in the package) as the remote controller for operation instructions.

PPM0 is connected to ESC PPM1, and PPM1 is connected to ESC PPM2

Package Included:
1X 5AX2 Brushed ESC
