1PCS Upgraded Version 3-6S 110A Bidirectional Brushed ESC 12V 24V Cooling Fan Two-way Speed Controller for Children Kids RC Car

Remark: this is upgraded version

Specification:

- Item name: bidirectional brushed ESC

- Working voltage: 12V-24V ( 3S-6S )

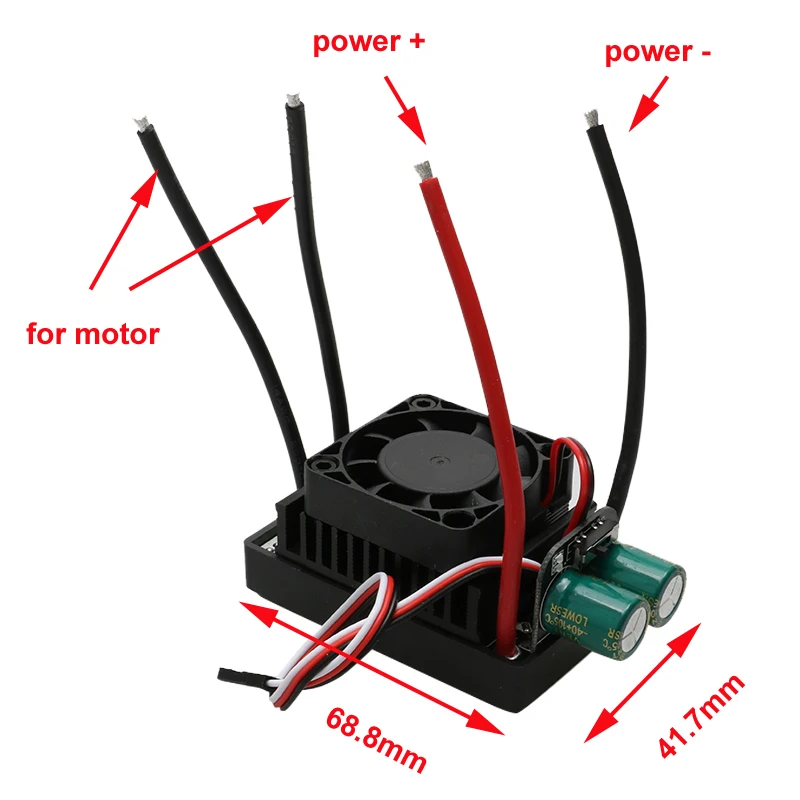

- Size ( length x width x height ): 68.8x41.7x37mm

- Used for rc bait boat, for diy model car ,for children kid rc model car

- Peak Current ( forward/backward): 110A

- Rated Power: 1000W

- Remote control signal PWM: 800us-2200us

- Neutral point: 1500us

- Build in 28PCS MOS FET

- With cooling fan

- "H" bridge structure

- Motor Limit:

Drive ability at the same time at 12V: 3PCS 540, 3PCS 550, 2PCS 775, 2PCS 795, 1PCS 895 or 1PCS 997 Motors

Drive ability at the same time at 24V: 2PCS 775, 2PCS 795, 1PCS 895 or 1PCS 997 Motors

Description:

- Automatically to find the neutral point, No throttle rang calibration required.

- Build in 5V/3A UBEC, it can drive 2PCS 25kg servos.

- The ESC is not waterproofed

- Do Not equip with power supply plug

Application:

- Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, tank etc.

- Suitable for 540, 550, 775, 795, 895, 997 brush motor.

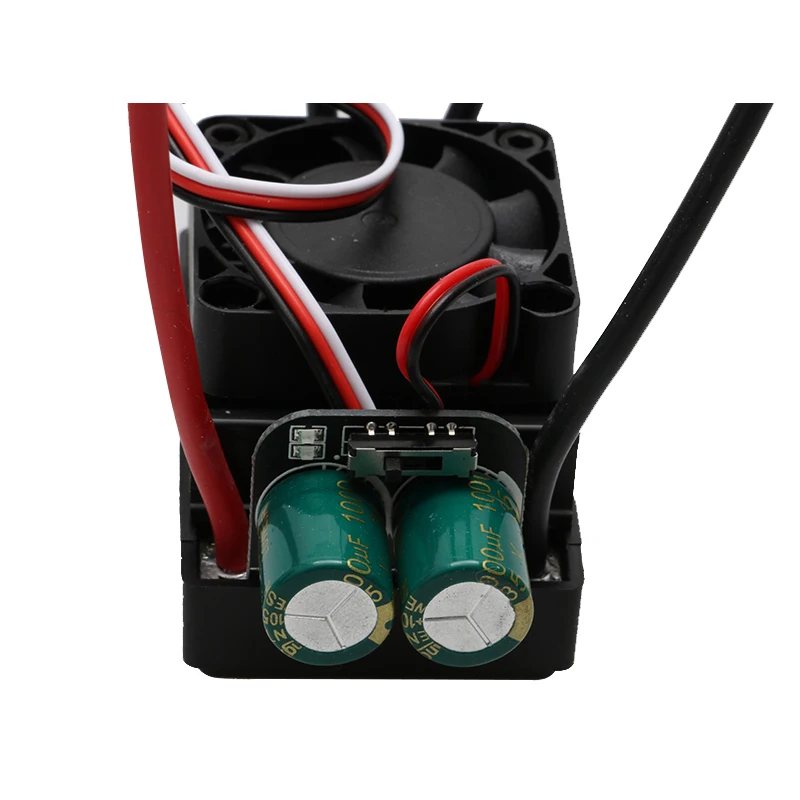

Three Working modes (Be set by switch)

Mode 0: Forward/ Backward Model.

Mode 1: Forward/Brake/Backward (neutral point brake)

Mode 2: Forward/Brake/Backward (Throttle stick move back brake)

- Mode 0: no brake

- Mode 1: The throttle stick move back to the neutral postion, the motor braked to a stop. When the motor is forward rotation, pull back the throttle, motor reverses immediately.

- Mode 2: The throttle stick move back across the neutral postion, the motor braked to a stop,At this time, if you want to reverse the motor, you must move the throttle stick to the neutral ponit first.

LED indicator:

LED on-- Working normally

LED flash-- The throttle stick is not at the neutral point

LED flash fast-- Signal lost

How to use:

- Connect with receiver,motor,battery correctly.

- Turn on the power of ECS, If the transmitter is off, LED will flash fast.

- Push the throttle stick to the neutral point, turn on the transmitter, and adjust the throttle trim until the LED on, that means the neutral position has been confirmed.

Note:

- UBEC is a switching-Mode regulators, please don't use two ESC in parallel to power the receiver, otherwise they will be burned.

- Size is manual measurement, so there are exist errors

Package include:

1pcs x ESC
