SA11044001A3

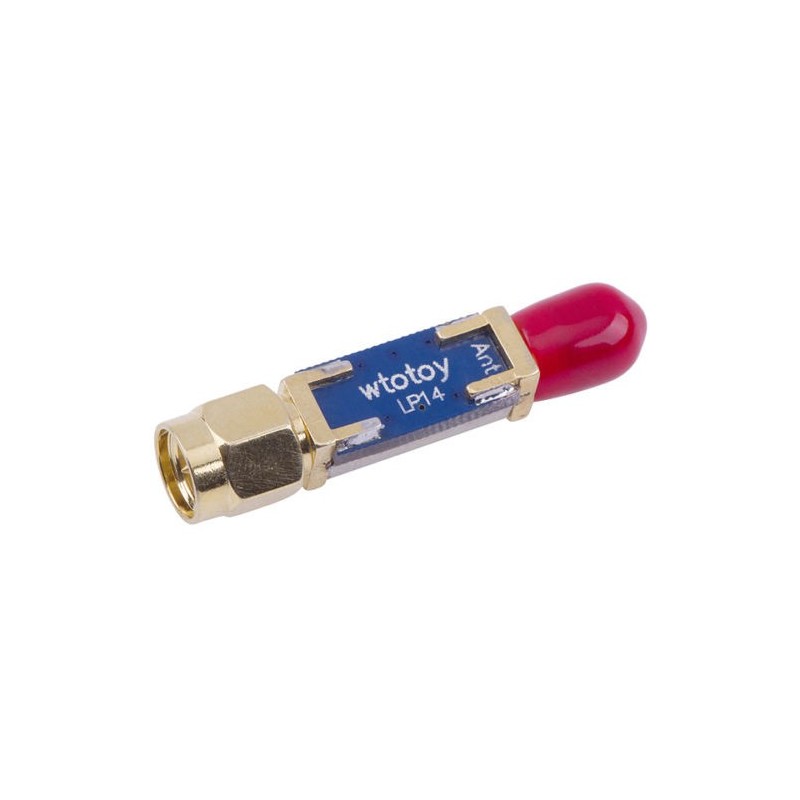

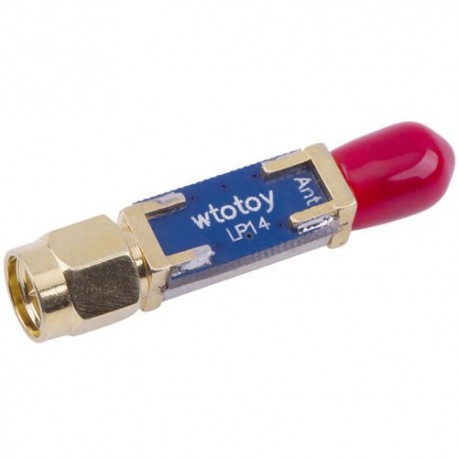

   ●1.2GHz Low Pass Filter attenuates RF noise which interferes 2.4Ghz RC receivers

   ●Helps 1.2GHz Wireless Video Transmitter to prevent unwanted RF noises

   ●12LPF 1.2G Low pass filters can reduce the interference to 2.4GHz receivers to prevent jitter servo issues.

   ●You may install it onto your receivers or transmitters, for filtering out unwanted RF noises

●Designed for 1200MHz -1390MHz wireless A/V transmitters.

●Low insertion loss, less than 0.7dB typical at 1300MHz

●Passband DC - 1425MHz (<-1.5dB loss)

●Efficient monolithic LC multi-pole topography design

●Second harmonic (> 2.4GHz) attenuation -35dB typical

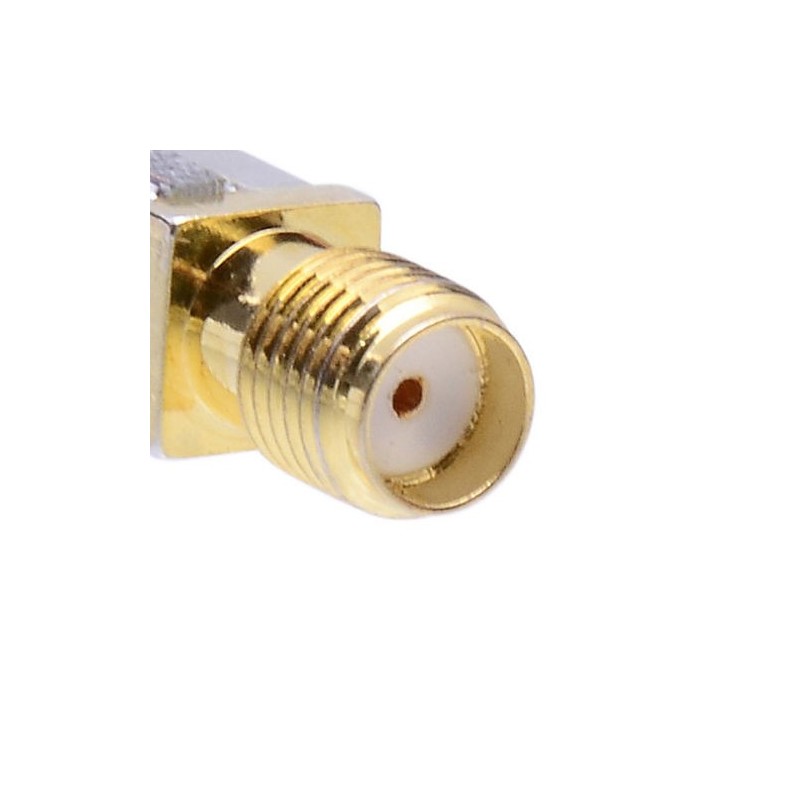

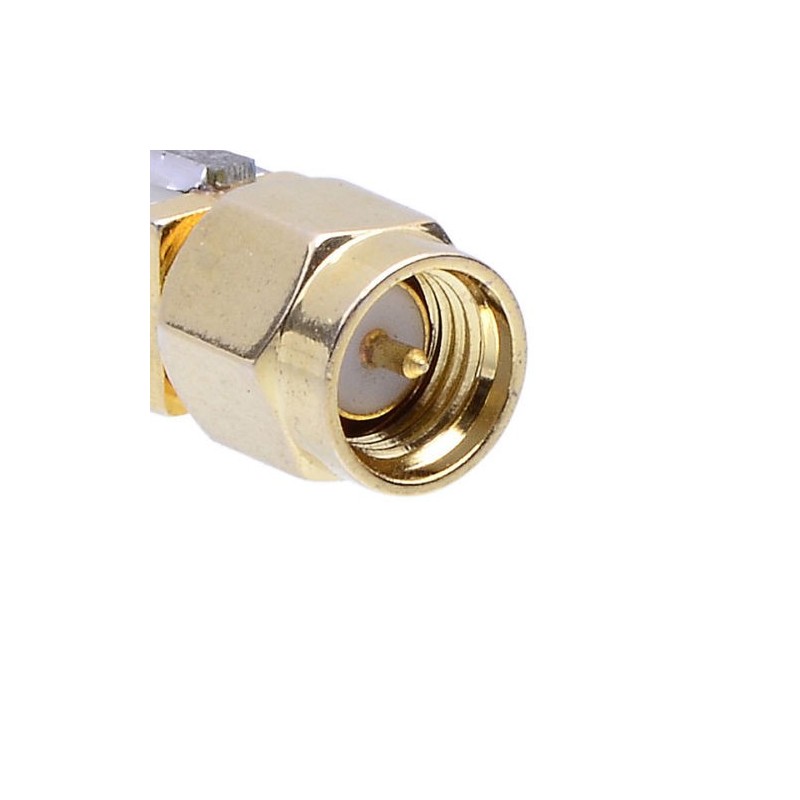

●SMA connectors (male / female).Inserts between transmitter and antenna

●Characteristic impedance 50times

●Handles RF power up to 8 watts

Specifications:

●Size: 1.45 * 0.31 * 0.25 inches (37 * 8 * 6.5 mm)

    ●Weight: 5.40g

   ●Color: Golden and Red

Package included:

1X 1.2GHz Low Pass Filter
