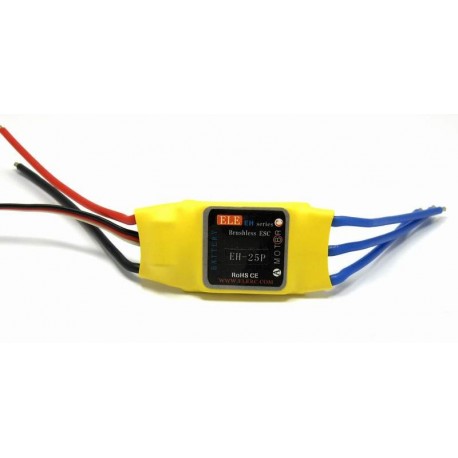

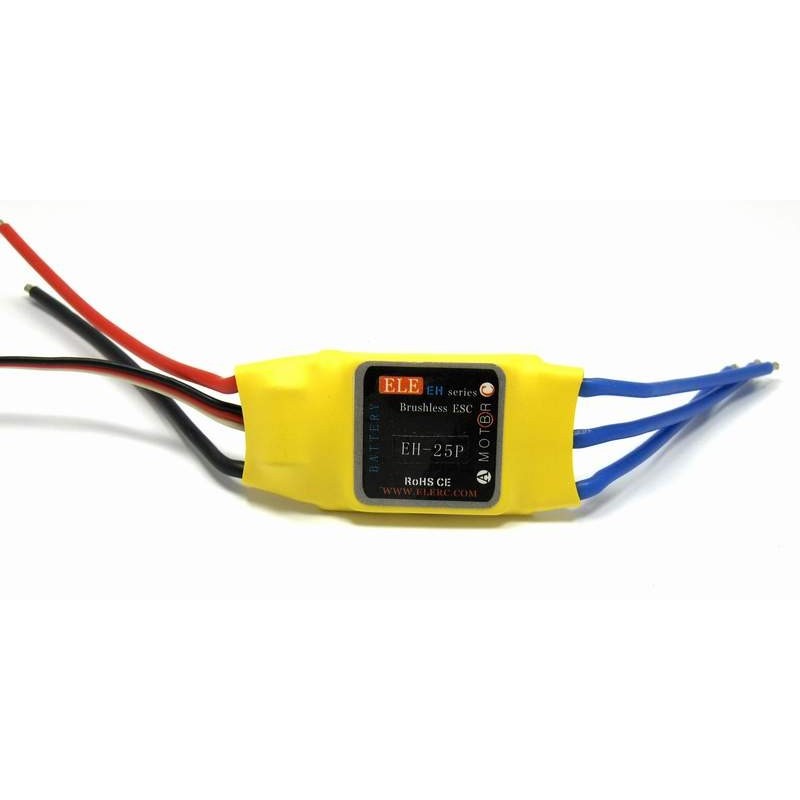

Product Details

1  Specification

1.1 Output: Continues 25A, Burst 35A up to 10 Secs.

1.2 Input Voltage: 5.6V --- 16.8V ( Lithium : 2 - 4s or NiMH/NiCd  5 -12 Cells)

1.3 BEC (Battery Elimination Circuit) Output?

    ?EH-25A? (linear mode BEC)?2A


1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)

1.5 Size?

    ?Pentium-25A?24mm*45mm*11mm(width*length*height)
       ?Pentium-25A-OPTO?24mm*45mm*11mm(width*length*height)

1.6 Weight:

       ?Pentium-25A?22g
       ?Pentium-25A-OPTO?21g

2  Features

2.1 Safety Arming Feature: Regardless the Throttle Stick position, the motor will not spin after battery connected. This will prevent any injury happened.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttling linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:

?Brake Settings?brake enabled / brake disabled, default is brake disabled

?Battery Type?Li-xx(Li-ion or Li-poly) / Ni-xx(NiMh or Nicd)?default is Li-xx.

?Low Voltage Protection Mode(Cutoff Mode) ?power reducing / power cutoff, default is power reducing.

?Low Voltage Protection Threshold(Cutoff Threshold) ?low / medium / high, default is medium cutoff voltage.

1)    For Li-xx battery?number of battery cells are judged automatically?low / medium / high cutoff voltage for each cell are: 2.6V/2.85V/3.1V. For example: 3 Cells Li-Poly, when medium cutoff voltage is set, the cutoff voltage is: 2.85*3=8.55V.

2)    For Ni-xx battery, low / medium / high cutoff voltages are 0%/45%/60% of the startup voltage (0% means the low voltage cutoff  protection function is disabled) . For example: a 10 cells NiMH battery pack, fully charged voltage is 1.44*10=14.4V, when medium cutoff voltage is set, the cutoff voltage is : 14.4*45%=6.5V.

?Startup mode: normal / soft / super-soft, default is normal startup.

?Timing: low / medium / high, default is medium timing. In normal cases, low timing can be used for most motors. But for high efficiency, we recommend the Low timing for 2 poles motor and Medium timing for 6 poles and above. For higher speed, High timing could be used.

 2.4 Full Protection Features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection.

3   Advantages

3.1 Military Standard Capacitor with extremely low resistance used on voltage input section, this will increase the ability of prevention of unwanted RF Noise/ Interference during flying.

3.2 Extreme low resistance, super current endurance.

3.3 Microprocessor and BEC use separate voltage regulator IC, with good anti-jamming capability.

3.4 Compatible with EH series Programe card.
