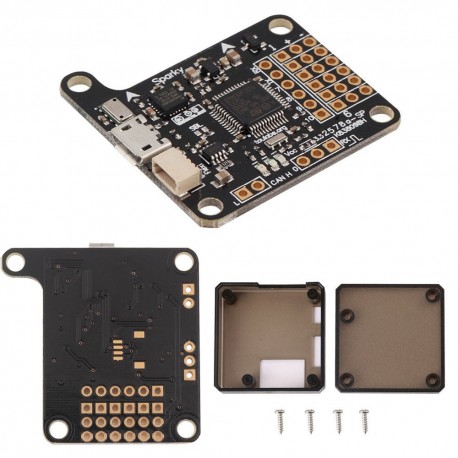

SPARKY FLIGHT CONTROLLER 1.0 V2

Improved sensors filtering for ultra clear barometer readings. Buy with confidence! The regulator and barometer on boards are the best quality on he market, in other words, business as usual.

This is a flight controller designed for Tau Labs, but can also run cleanflight! . It is designed to be small and easy to assemble, while being highly capable for acrobatic flight, altitude hold, FPV, RTH or PH.

GPS capable for functions such as RTH (Return To Home), Position Hold and Waypoint navigation in conjunction with a ground station.

Mavlink compatible for the use of telemetry radios for use with a ground station to provide location information and waypoint navigation.

Barometric pressure sensor on board for accurate altitude hold indoors or out

9dof accelerometer / gyro for the absolute quickest and most accurate angle recognition and correction

2 serial ports

PPM only – SBus Support and DSM2/x support with user selectable 3.3v or 5v setting.

Camera stabilization output for 3 axis

10 channel outputs

Up to 3 adc inputs for rssi

Very compact design, perfect for small UAV’s where space is limited. Also excellent in larger machines as well.

Weight 6.9g with right angle header pins

30mm x 30mm mounting pattern

-Taulabs ground station / firmware compatible
Vehicle compatibility options include:
Multirotor – Quad X, Quad +, Hex, Hex x, Hex Y6, Octo, Octo V, Octo Coax X, Octo Coax + Ground
Car/Truck, Motorcycle, Tank Helicopter
CCPM, FP Fixed Wing
Standard (elevator, aileron, rudder), Elevon and VTail mixing Custom – mix your own settings for almost any vehicle

For more information: www.taulabs.org

The firmware which corresponds with the GCS is always distributed together with the GCS installer. You will find the corresponding firmware in the installation directory of the GCS.

github.com/TauLabs/TauLabs/wiki

forum.taulabs.org/

more info here:
buildandcrash.blogspot.com/2013/05/sparky-testing-and-building-no-crashing.html

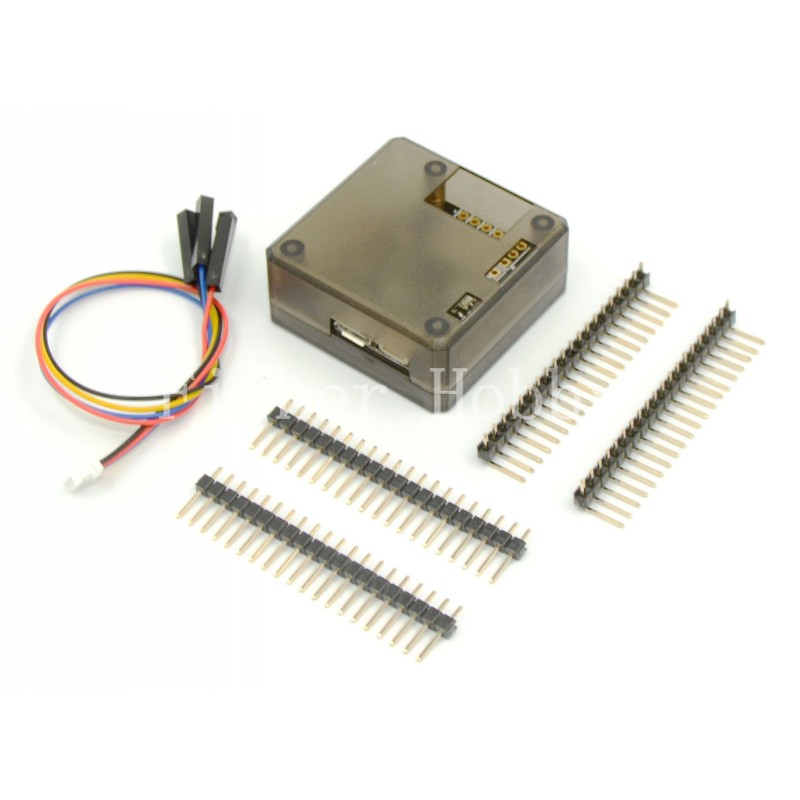

Package includes:
- 1x Sparky Flight Controller
- 1x Shell
- 1 set pins
- 1 set cables
