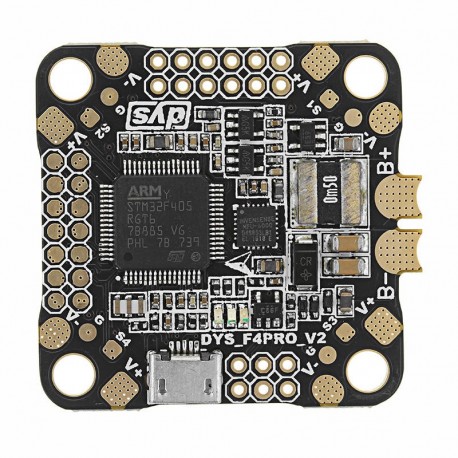

DYS 30.5x30.5mm Omnibus F4 Pro Flight Controller Integrated with OSD 5V 3.3V and Current Sensor

View larger

Display all pictures

Upgrade DYS 30.5x30.5mm F4 Pro V2 Flight Controller AIO OSD & 5V 9V 3.3V BEC & Current Sensor

Reference: (SKU): 622077

Upgrade DYS 30.5x30.5mm F4 Pro V2 Flight Controller AIO OSD & 5V 9V 3.3V BEC & Current Sensor

In stock

Print

More info

Upgrade DYS 30.5x30.5mm Omnibus F4 Pro V2 Flight Controller AIO OSD & BEC & Current Sensor

Specification:
Brand Name: DYS
Model: F4 Pro V2
Item Name: F4 Pro V2 FC AIO OSD BEC and Current Sensor
MCU: STM32F405
Gyro: MPU6000
Input Voltage: Support 3-6S Lipo
BEC Output: 5V@ 3A
: 3.3V @ 0.3A
- Also have 9V @ 1.2A
Size: 38 (L)X386(W) mm
Hole Distance: 30.5x30.5mm
Net Weight: 10.5g (not including cable)

Features:

- The refresh rate of PID and gyro up to 8K

- PCB 3OZ copper enhance current stability and cooling fast

- Exposed pad for easy soldering

- Support BF setting software to flash and debug OSD
- Integrated current sensor to monitor the real-time power consumption

- Use remote control to view flight control parameter through OSD

- Support SAMRT AUDIO, adjust the VTX by OSD

- Comes with heat resistance damping ball to upgrade the stability and operation

- 3-6s lipo input, integrated PDB, max withstand current 160A

New upgradable fucntion:

1. It can use S5,S6 motor control signal pad after updating firmware

2. Has the reverse high voltage protection circuit to the PCB board.

3. Added 9V/1.2A power output & 5V/3A one-way output

4. With 8pin socket to compatible with 4 in 1 ESC

5. Added Protection Circuit for USB Port

7. Added 8 Pin Port for 4 In 1 ESC

8. Compatible with DYS 20A / 30A 4 In 1 ESC.

Package Included:
1x DYS F4 Pro V2 Flight Controll Board
3x Cable
1x XT60 Connector
1x Manual
1x bag of Screws

,,,,,,,,,,,
