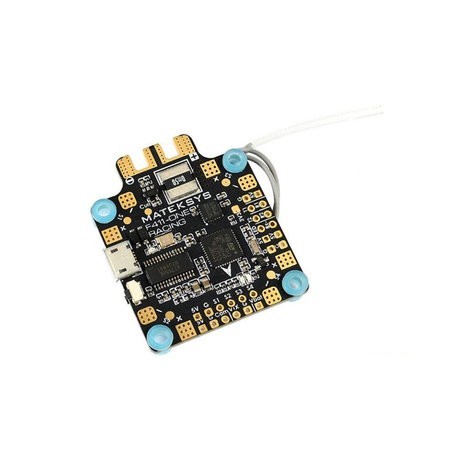

Matek System F411-One 30.5x30.5mm F4 Flight Controller AIO OSD 5V BEC Current Sensor for RC Drone

Reference: (SKU): F411-ONE

In stock

Specification:
Brand Name: Matek System
Model: F411-One
Item Name: 30.5x30.5mm F4 Flight Controller AIO OSD BEC and Current Sensor

MCU: 100MHz STM32F411CEU6

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

SPI RX: module 2500-2431, Frsky_X or Frsky_D protocol

VCP, UART1, UART2

WS2812 Led Strip : Yes

Beeper : Yes

PPM: RX2 pad

Blackbox: No

SBUS input: No

I2C1 SDA & SCL: No

Input: 6~30V (3~6S LiPo) w/TVS protection

PDB: 4x30A (Max.4x46A)

BEC: 5V 2A cont. (Max.3A)

LDO 3.3V: Max.300mA

Current Sensor 184A (Scale 179)

Battery Voltage Sensor: 1:10 (Scale 110)

Package Included:
1x F411-One F4 Flight Controller

1x Rubycon ZLH 35V/470uF (Low ESR)

6x silicon grommets M4 to M3

2x IPEX- 2.4G antenna 15cm
