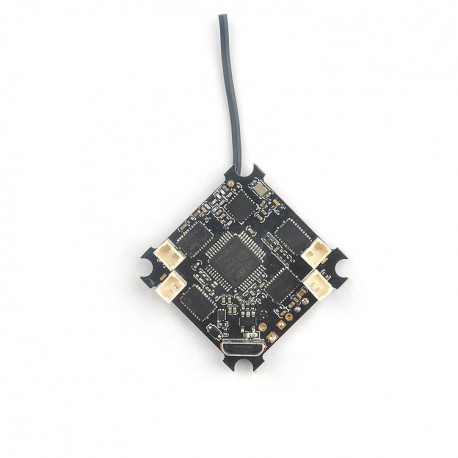

Eachine Turtlebee F3 Micro Brushed Flight Controller Built-in Receiver OSD Current Meter Support Flip Over For Inductrix Tiny Whoop E010 E010S

User Manual, Please select Download

Frsky receiver


Specifications:
Brand Name: Eachine
Item Name: Turtlebee F3 Brushed Flight controller
MCU: STM32F303CCT6
Gyro& Accelerometer: MPU6000
Working Voltage: 1S Lipo or LiHV
Firmware Target: Betaflight OMNIBUS
Motor Driver: Texas Instruments DRV8850
Continuous Current: 5A each
Peak Current: 8A each
Motor Socket: JST 1.25MM 2pin
Mounting Hole Distance: 25.45*25.45mm
Diagonal Hole Distance: 36mm
Whole Size: 29.2*29.2mm
Weight: 4g

Features:
- Support ACRO/ Stable/ Horizon/ Air multi fly mode
- Built-in Betaflight OSD
- Built-in 2.4g receiver (Frsky/Flysky/DSM2 DSMX to choose)
- Built-in voltage and current detector alarm
- Dshot150 protocol ready, support Betaflight flip over when crashed.

Receiver Option:
1. Frsky protocol D8 Mode


Compatible:
1.Frsky Receiver Support FRSKY X9D/X9D PLUS(D8 mode),and XJT (D8 Mode),DJT DFT DHT Transmitter.

Flip Over Setting:




Package Included:
1 x Turtlebee F3 Flight controller
3 x Power Cable
4 x Rubber Shock Absorber
4 x Screws
