Specifications:

Brand Name: MATEKSYS

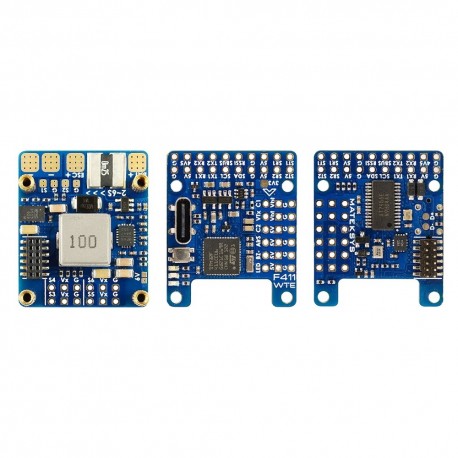

Item Name: F411-WTE

MCU: 100MHz STM32F411CEU6

IMU: BMI270 (SPI)

Baro: SPL06-001 (I2C)

OSD: AT7456E (SPI)

Blackbox: No

2x Uarts

2x Full Softserial

6x PWM outputs (2x Motors, 4x Servos)

1x I2C

4x ADC (VBAT, Current, RSSI, AirSpeed)

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

Built in inverter on UART2-RX for SBUS input

Switchable Dual Camera Inputs

Vbat power ON/OFF switchable for VTX and camera

PPM receiver: not supported

Power:

6~30V DC IN (2~6S LiPo)

132A Current Sense (Scale 250)

PDB/Current sense resistor: 90A continuous, 132A burst.

BEC 5V 1.5A for FC & Peripherals

BEC Vx 5A for servos, 5V/ 6V option

Vbat for VTX and camera (ON/OFF switchable)

LDO 3.3V 200mA

Battery Voltage Sensor: 1k:10k

FC Firmware:

INAV Target: MATEKF411TE ( INAV4.1 or newer)

Physical:

Dimensions: 31 x 26 x 16.5 mm

Mounting: 22 x 22mm, Φ2mm

Weight: 10g

Package Including:

1x FC F411-WTE

Dupont 2.54 pins  (Board is shipped unsoldered)
