Flysky X6B 2.4G 6CH i-BUS PPM PWM Receiver for AFHDS i10 i6s i6 i6x i4x Transmitter

View larger

Display all pictures

Flysky X6B 2.4G 6CH i-BUS PPM PWM Receiver for AFHDS i10 i6s i6 i6x i4x Transmitter

Reference: (SKU): 493903

More details

In stock

More info

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It's compact, easy to install and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

Description:
Brand Name: Flysky
Item: X6B i-BUS 2.4GHz 6CH Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Rotor

RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A

Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V

On-line Update: Yes(Wireless)
Range: >300m

Weight: 4.5g

Size: 36*22*7.5mm

i-BUS Port: Yes

Certificate: CE0678, FCC ID: N4ZX6B00
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X.

Flysky X6B 2.4GHz 6CH Receiver manual, Click Here

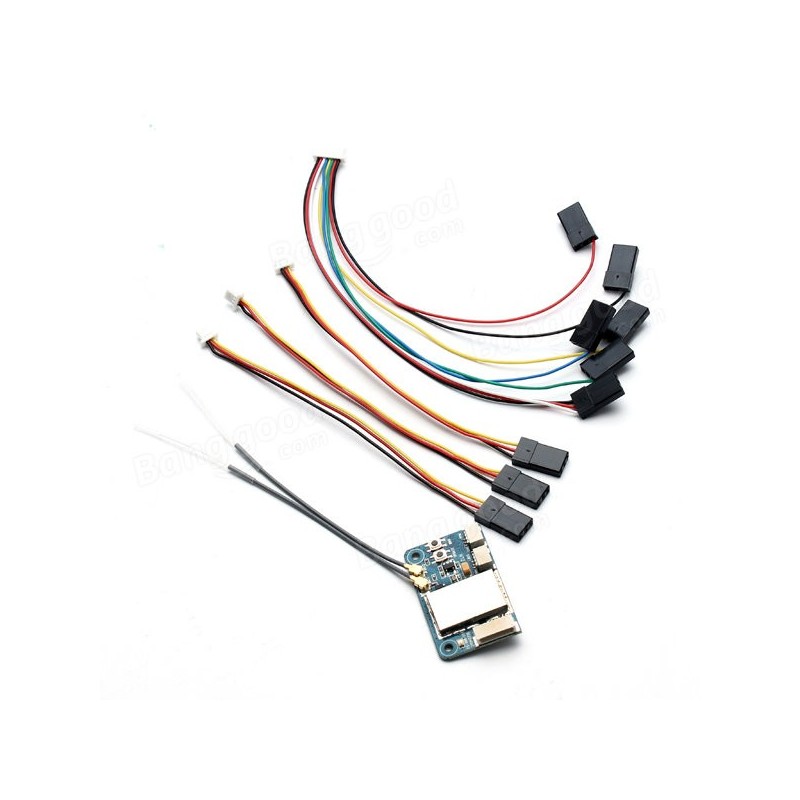

Package Included:
1X Flysky X6B 2.4GHz 6CH Receiver
