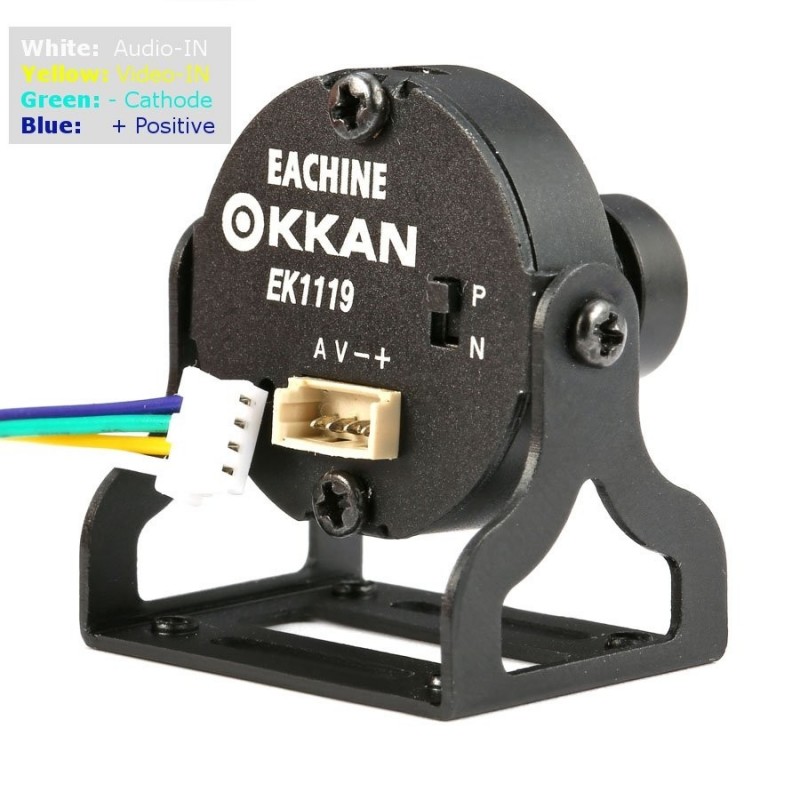

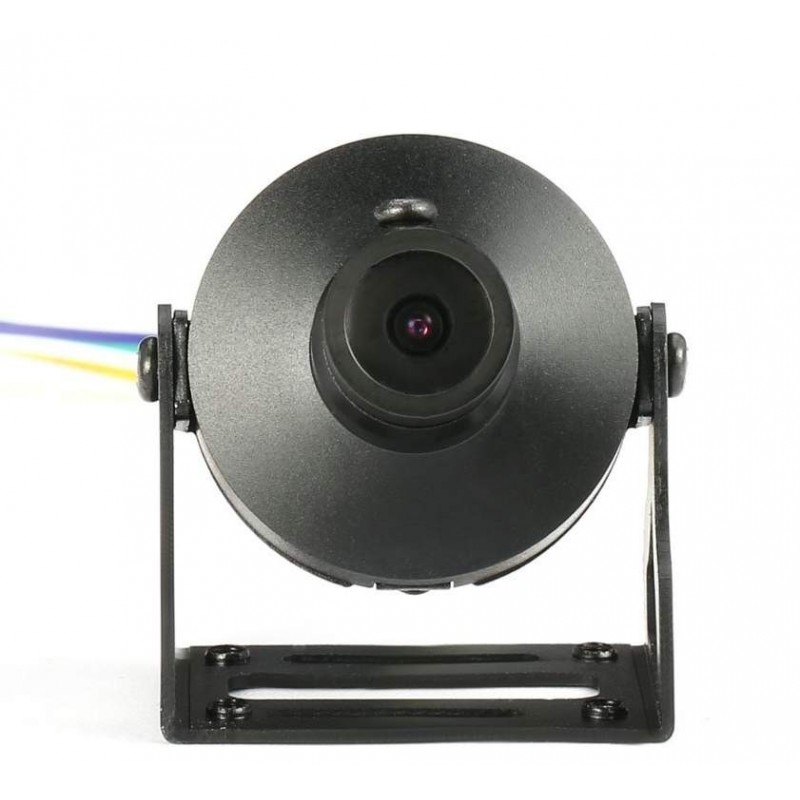

Eachine OKKAN series come with professional tuned software, to deal with fast changing lights. And new designed metal case, well-protect the cameras from crashes.  Super low weight and tiny size, make EK1119 GREAT choices for many small and bigger frames of drones.

Description:
Brand: Eachine
Name: OKKAN
Model: EK1119
Case: All Aluminum case with laser caved  information, nice designed figure, and well protect the PCBA
Voltage: Input  3.5-5.5V DC
Power Consumption: 110mA@ 5v
Illumination: 0.05Lux
Sensor: 1/3 "CCD Killer Sensor
System: NTSC/PAL (Switchable)
Resolution: Ultra High Definition 1100TVL, PAL: 976H * 582V/NTSC: 976H * 494V
Lens: 2.3mm IR coated
FOV: 150 ° M8
Operating temperature: -10 to 50°C
Camera size:  Ø24*19.8mm
Len Size: 12mm*10mm,  M8*P0.5
Net Weight: 8.2g ( Net camera)



Features:
Fast auto switch from dark and high light environment s, software specially tuned for FPV drones
practicing / racing.
With 1/3'' CCD Killer sensor, CMOS
With lens cover, well protecting the lens
With default  WRD function
Without OSD
Ultra- light weight, Super-low power consumption
Suitable for RC multi-copter, plane and car


Package Included:
1x 1100TVL FPV Camera
1x DIY Cable
1x Lens Cover
1x Rotating Aluminum Bracket
2x Screws for fasten Bracket
