FPV CAMERA

View larger

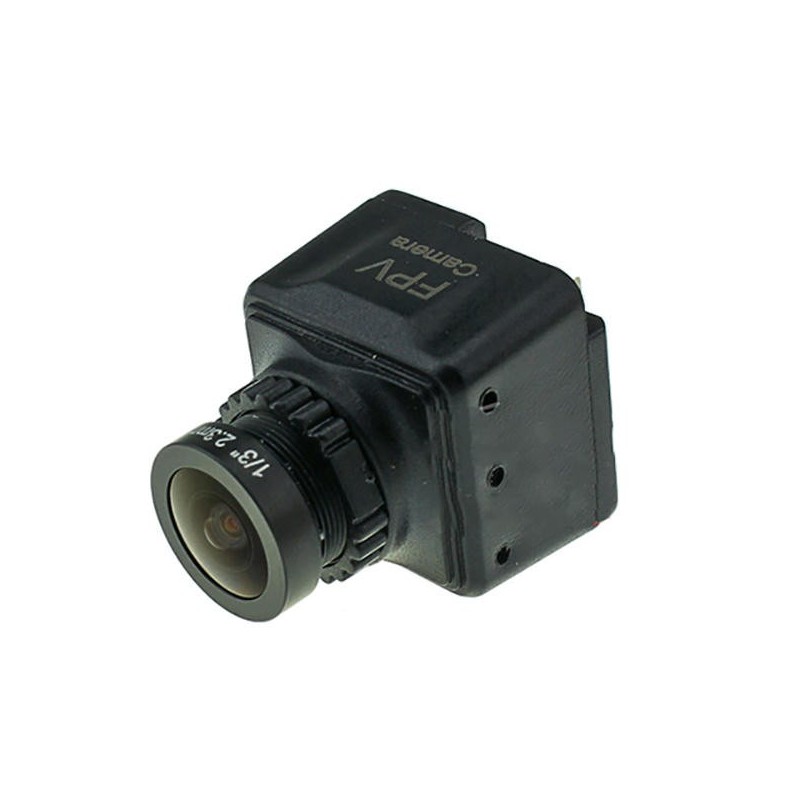

Mista 600TVL 2.5mm 1/3" CCD PAL FPV Camera w/ OSD Black

Reference: (SKU): 735775

In stock

Specification:

Image Sensor: 1/3" SONY Super HAD II CCD

Resolution: 600 tvl (b / w), 600tvl (color)

Lens: 2.1mm Lens(M8) FOV160° / 2.3mm Lens(M8) FOV145°

Signal System: PAL / NTSC

S/N Ratio >60dB(AGC OFF)

Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000

AutoGain Control(AGC): YES

Back light compensation(BLC): YES

Min.illumination: 0.01Lux/1.2F

WDR: D-WDR

DNR: 2DNR

Day/Night Color / Auto / B&W

Power: DC 5 to 36V
Operating current: 70mA

Net weight: 12g

Dimensions: 22.3mm * 22mm * 27m

OSD menu: support

Features:

- 600TVL high picture quality

- 1/3" SONY SUPER HAD II CCD

- Nextchip 2040 DSP

- Powerful OSD menu

- D-WDR (Wide Dynamic Range)

- 2D-DNR (Digital Noise Reduction)

- Low Power Consumption(70mA)

- Mirror function

- Privacy areas: 8 areas

- Low illumination: 0.01Lux

- 2.3mm 2.1MM Lens

- Low Power Consumption

- Suitable for FPV

Package included:
1 x 600TVL 2.1mm/2.3mm/2.5mm FPV Camera
