Mayatech 700TVL 2.8mm FOV 100 Degree Mini FPV Camera DC12V For QAV210 250 FPV Racing Drone RC Aircraft

Reference: (SKU): B73005-BLACK

In stock

Mayatech 700TVL 2.8mm FOV 100 Degree Mini FPV Camera DC12V For QAV210 250 FPV Racing Drone RC Aircraft

Description

Lens : 2.8mm

FOV: 100 degree

Size : 25mm*25mm*27.5mm

Weight : 11g

Pixels: PAL: 1020H×596V (61MP) NTSC: 1020H×508V (52MP)

Effective Pixels: PAL: 976H×582V (57MP) NTSC: 976H×494V (48MP)

Resolution(horizontal): 700TVL

Video output amplitude : 1.0Vp-p/75Ω

Auto Gain Control : 0.25/0.50/0.75/1.00 4 levels adjustable, max can be up to 55dB

White Balance : ON/OFF

Exposure mode : electronic exposure

Electronics Shutter : 1/50(1/60) - 1/100000 秒

Gamma Correct: 0.45/1.0

Synchronization Method: inter-sync

Workong Voltage : DC12V (wide range ,support 7V-13.5V.)

Wording Current : 70mA (low power consumption )

Operating Temp: -20℃--60℃

Humidity: 0%~98%

Cables

Black : -

Red : +

Yellow : Signal

Connector : JST-PH 2.0mm

Note : The back plate has been improved to become thicker

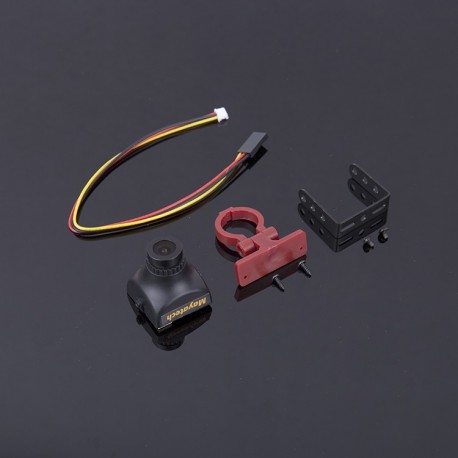

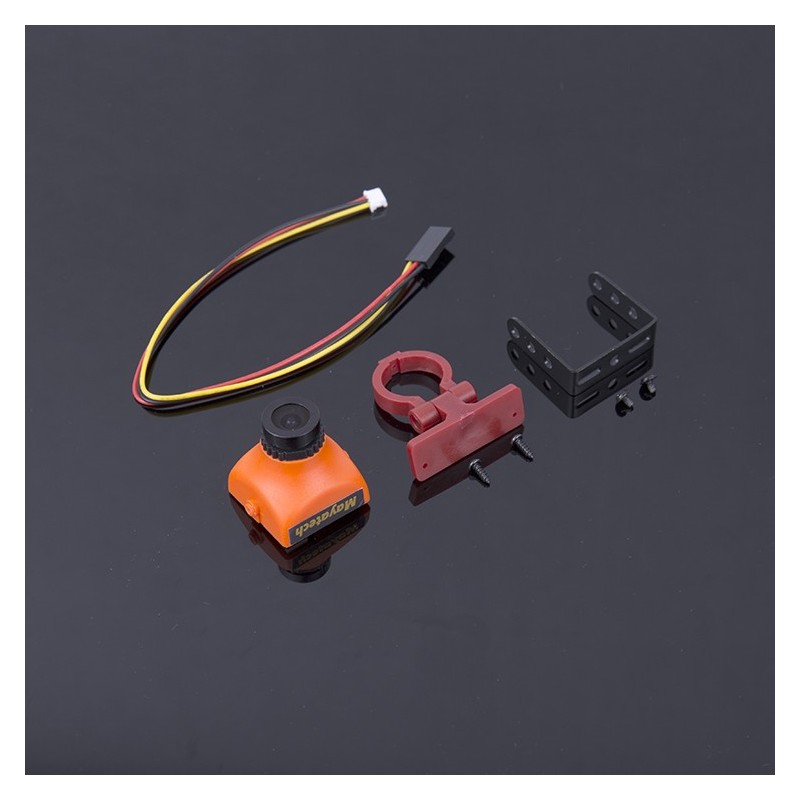

Package Included

1 x Mayatech 700TVL 2.8mm FOV 100 Degree Mini FPV Camera

1 x JST-PH 2.0mm to TJC8 AV Cable

1 x Bracket

1 x Lens Mount
