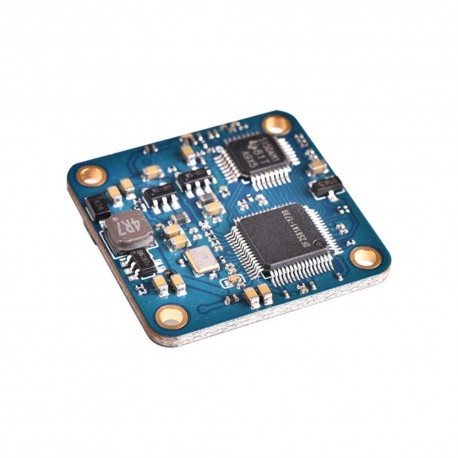

Runcam DVR01 Mini FPV DVR Module Lossless Video Output for VTX of Mini FPV Racing Drone M2 holes

View larger

Display all pictures

RunCam Mini FPV DVR Module Remote Control Version Lossless Video Output for Mini FPV Racing Drone

Reference: (SKU): A62208

More details

In stock

More info

RunCam Mini FPV DVR Module Remote Control Version Lossless Video Output for Mini FPV Racing Drone

Description:
Brand name: Runcam
Item name: Mini FPV DVR Module

Power in: DC 3.3-5.5V

Work Current: 250mA Max

Power out: DC 5V @ Max 250mA

Video in: CVBS@1Vp-p 75Ω

Video out: CVBS@1Vp-p 75Ω

Encoder: MJPEG@AVI

Resolution: VGA(640 x 480) @ 30fps(NTSC)/25fps(PAL)

Audio in: MIC

Micro SD Card: Max 32G

Dimension: 25 x 25mm @20 × 20 M2 holes

Net Weight: 3.5g

Remote Control Version

Using the Speedy Bee App to set the Remote control function, you can start/stop recording through the remote control. For example, you can bind the recording function to the ARM mode, and the DVR will start recording when the ARM mode is activated. Otherwise, the DVR will stop recording.

Method 1. Automatic association (App iOS >= 1.0.8, Android >= 1.0.7)

Method 2. Manual association

Open the App (iOS >= 1.0.8, Android >= 1.0.7)=> select the Help Center=>click RunCam DVR-S => select Telemerty Control

Features:

* Designed for Mini FPV Racing Drone! ( 25*25mm @ 20*20mm M2 holes)

* Lossless video output for VTX! (Since it has been loaded to the DVR, it needs to synchronize the video amplification output)

* Black technology! Can record high-frequency vibration motor audio without access to MIC!

Package Included:
1x Runcam Mini FPV DVR Module
