We pulled out the defibrillator and shocked some serious life in to the Dead Cat conversion! The Spider style Quad-Copter was already awesome with its optimized arm angle and layout for a propeller free FPV view. And now the much awaited progression to an integrated power and A/V distribution board and plug in power shielded.

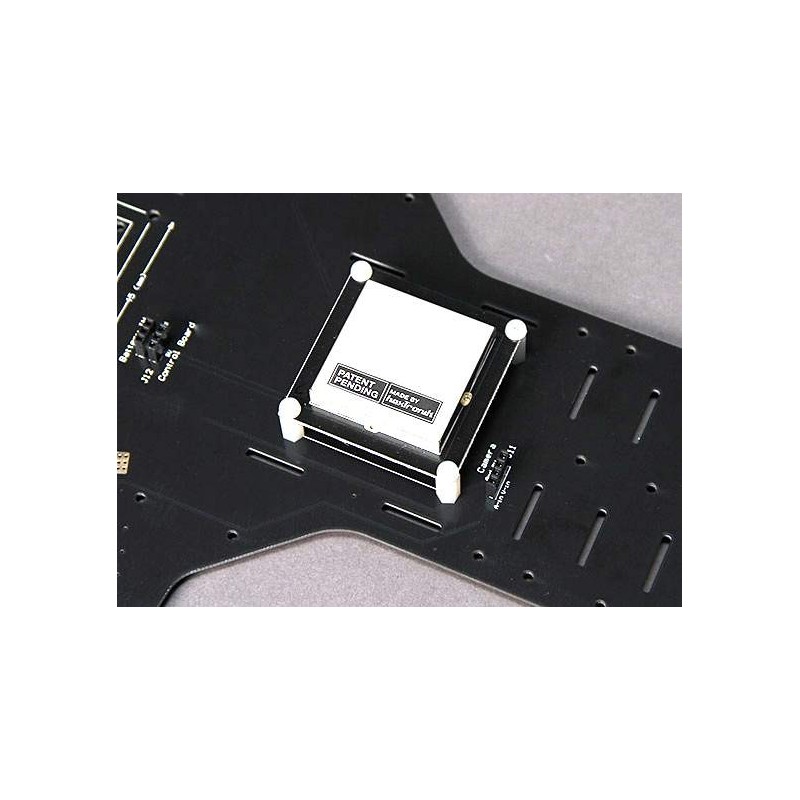

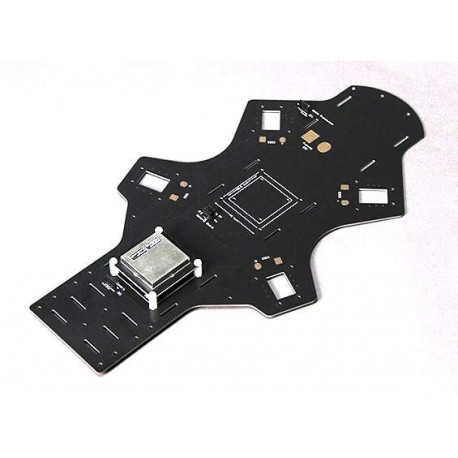

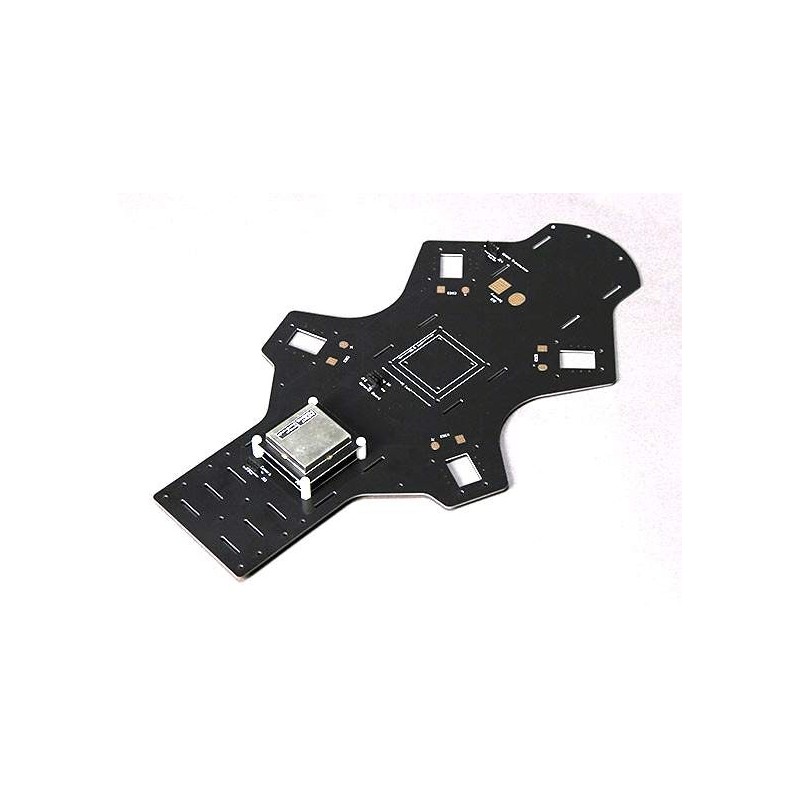

The new lower board has direct solder pads for the motor ESC power lines right at the base of the arms and power “in” pads located directly above the battery to minimize cabling. There are power connector’s at the front, back and middle for your FPV gear and flight controller, all tied to the power shield which effortlessly supply’s a regulated, filtered and RF Noise shielded 5 volts at a whopping 3 amps for the camera and flight controller and 12 volts at 1 amp for the hungriest of video transmitters. The video connectors at the front and rear also not only supply the voltage but also carry the audio and video signal from the front mounted camera to the rear mounted video transmitter. This upgrade will save you weight, clean up your layout and improve reliability by reducing connection failures. I guess this Dead Cat has 9 lives after all!

Features:
• Integrated power distribution
• Wick style solder pads
• Camera and video transmitter integrated wiring
• 3 or 4 cell input
• SMPS converter with RF noise protection shield
• Thermal Protected

Specs:
Input voltage: 8-16v (3-4 cell lipoly)
weight: 142g
output: 5V/3A and 12V/1A

* Note the dead cat Defibrillator conversion for the SK450 requires the Sk450 frame and Dead cat Conversion related below.
