FrSky Jumper Telemetry Converter Cable Pixhawk to Horus X10S X12S & Taranis X9DP QX7/X7S  Jumper T16 thru Smart Port receiver X8R/X4RSB/R-XSR

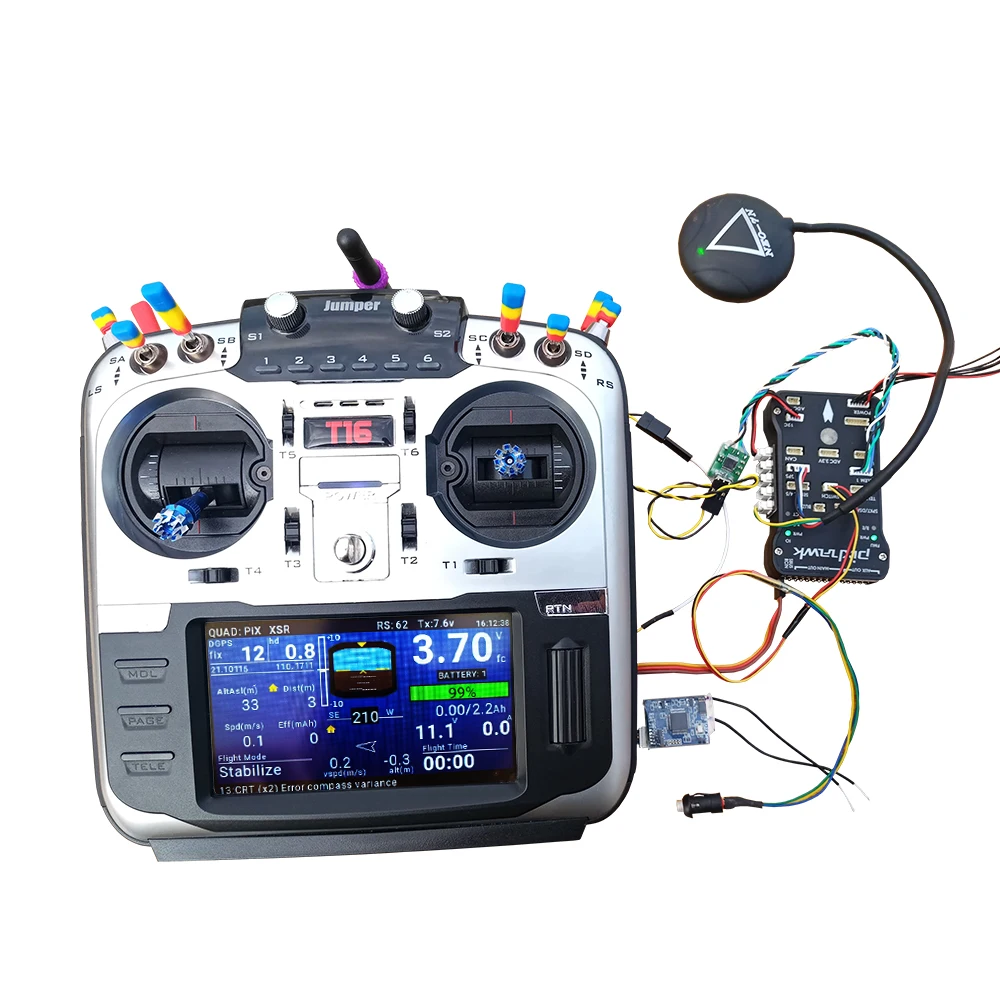

This cable can converter FrSky telemetry from your flight controller(Pixhawk1, 2, 3, 4) to the receiver (X8R/X4R/R-XSR/X6R/S8R/RX8R-PRO/X4RSB/XSR/R9/R9 Slim +/R9 mini/mm), and make you get all flight information on the display of the transmitter like Horus X10S X12S Taranis X9DP QX7/X7S Jumper T16. you can run Yaapu Frsky Telemetry Script or other scripts like FlightDeck and LuaPilott.

Reference resources:

https://github.com/yaapu/FrskyTelemetryScript

https://ilihack.github.io/LuaPilot_Taranis_Telemetry/

http://ardupilot.org/copter/docs/common-frsky-telemetry.html#common-frsky-equipment

Product name: Pixhawk-X8R/X4RSB/R-XSR Telemetry Cable Kit

Model: PX KIT-01

Size: 150 mm±20mm

Weight: 5.8 g

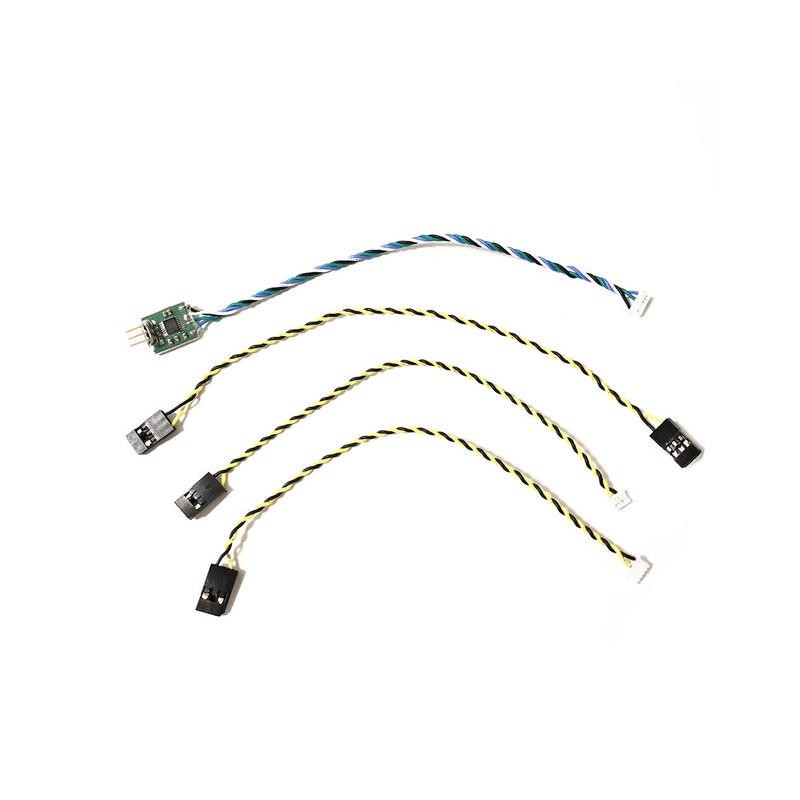

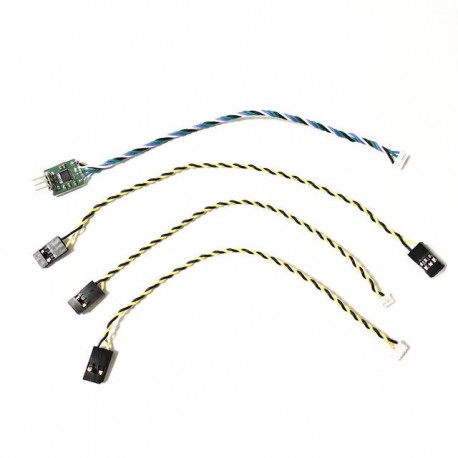

Package included:

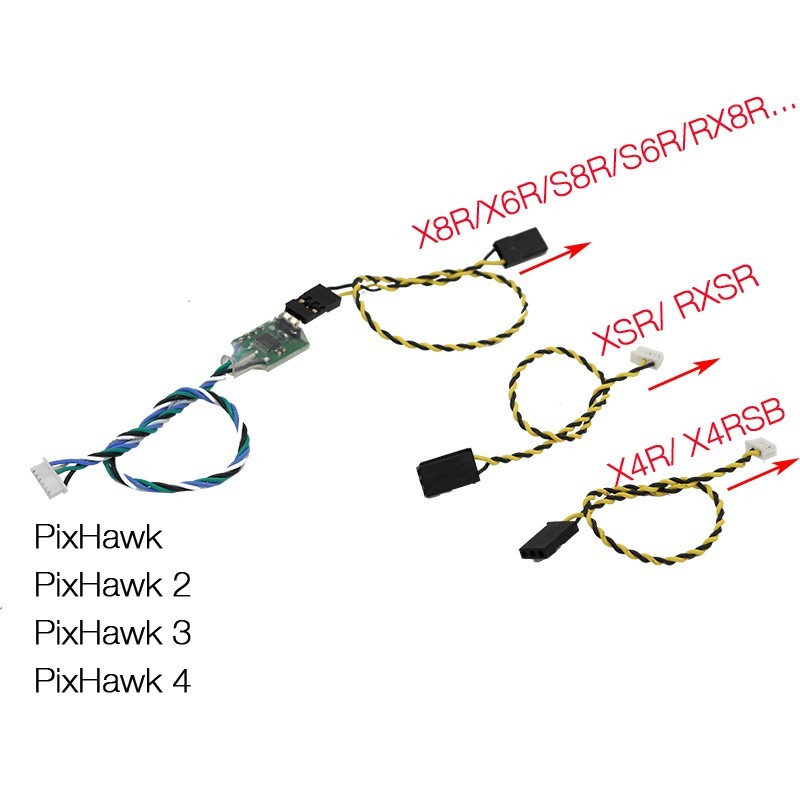

1x Telemetry cable for Pixhawk FC
1x Cable for FrSky X6R/X8R/S8R/RX8R Receiver
1x Cable for FrSky X4R/X4RSB Receiver
1x Cable for FrSky XSR/R-XSR Receiver

How to:

step1. Install script on your transmitter

step2. Set the protocol of the serial port to 10 ( passthrough FrSky telemetry) via mission planner

step3. Connect the Pixhawk and receive via this cable

step4. Discovery new sensor in your transmitter

step5. Running the Yaapu script in your transmitter
