ESC Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the

cooling fan before using this ESC in water;Clean and dry it soon after the use for

avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity

features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel

battery /Over-heat protectionThrote signal loss protection / Motor blocked

protection/
6. Easily programmed and compatible with pocket-sized program card.

ESC Specification:

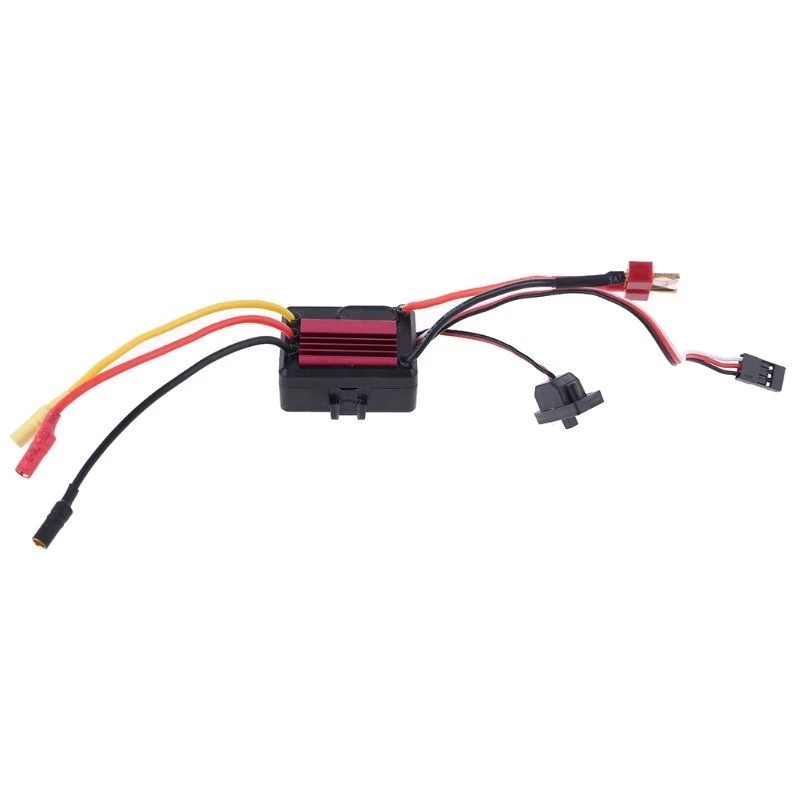

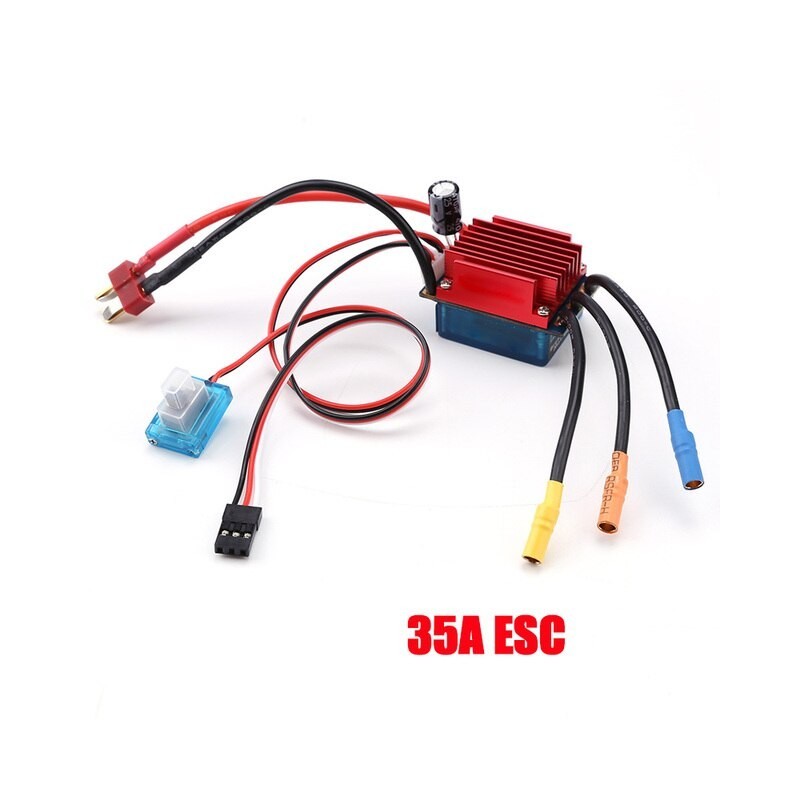

Name: 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV

<4000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV

<3000KV

Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)
Dimensions/Weight: 40x31x17mm/44g

Package Included:
1 x Waterproof 35A ESC
1 x English Manual

ESC DECLARATION:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is

very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or

maintenance of our products, we'veno liability shall be assumed nor accepted for any

damages,
losses or costs resulting from the use of the product. Any claimsarising from the

operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our

product or our workmanship.
