Features:
1.The third channel simple light control module can freely control the light by connecting the servo connector to the third channel (CH3) of the receiver

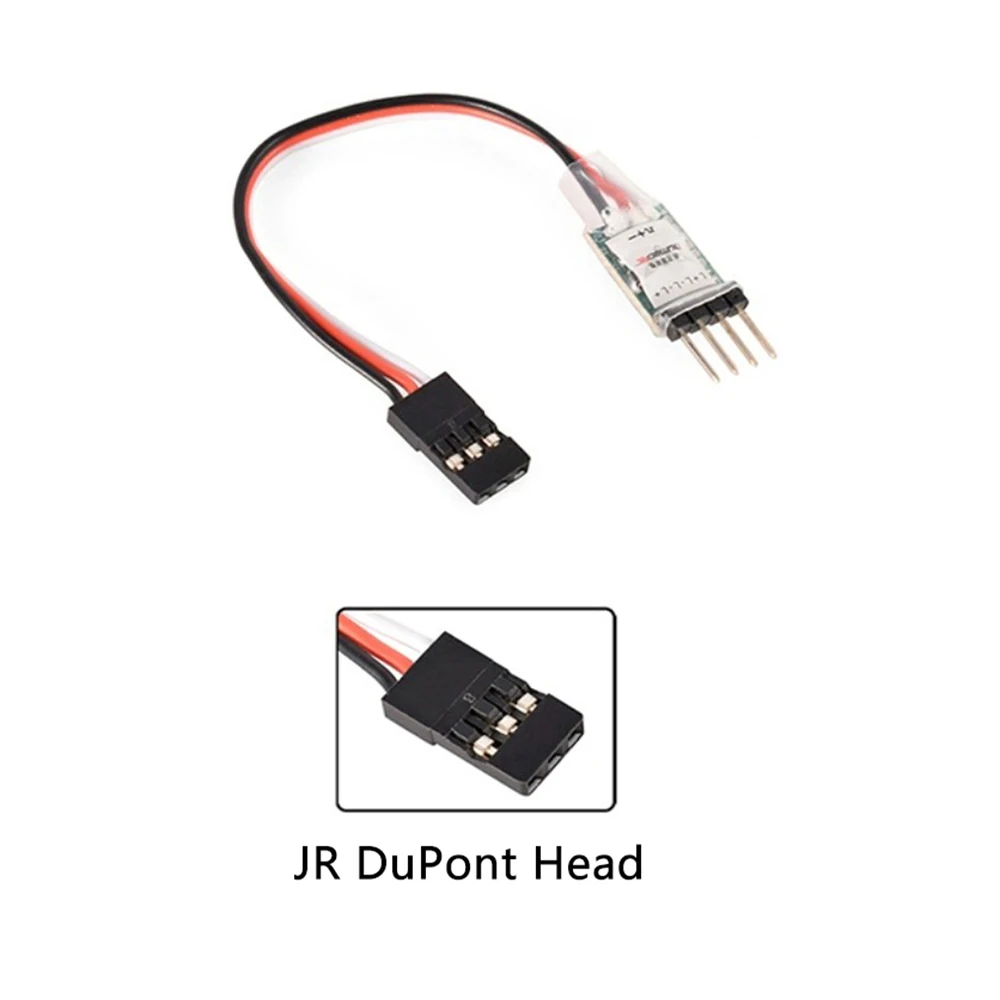

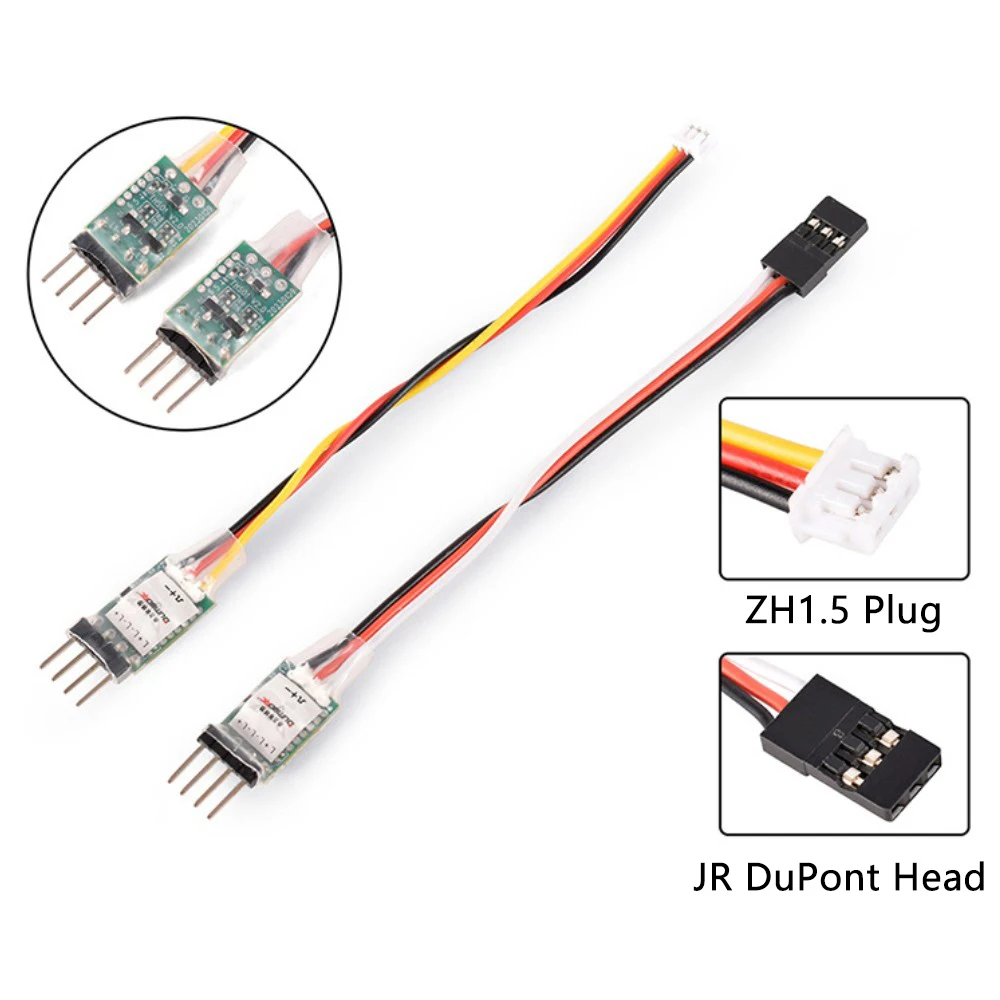

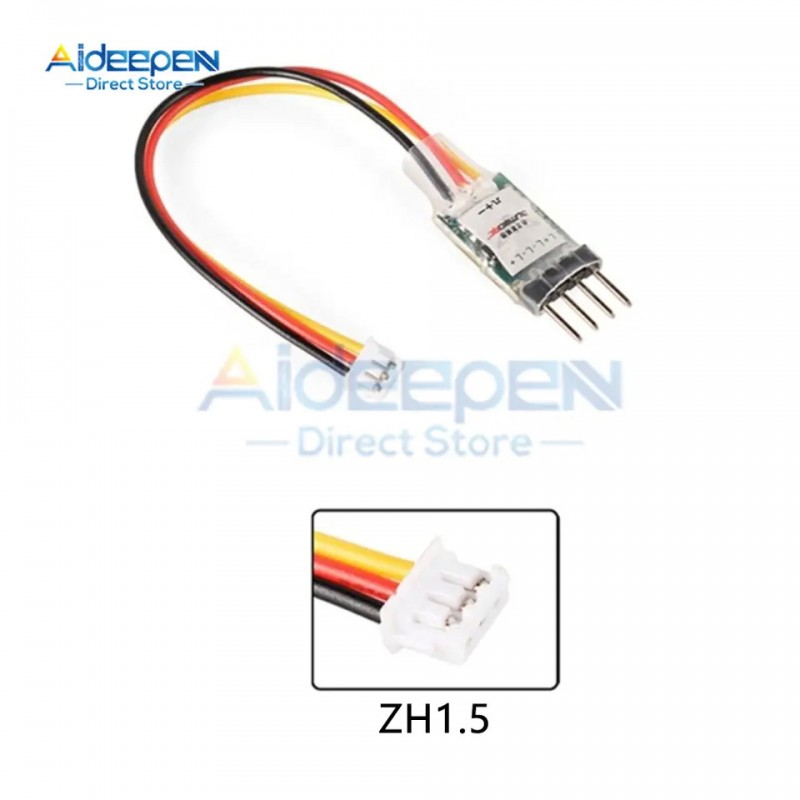

2.Optional JR DuPont head and ZH1.5 plug for remote control of car models and fixed wing aircraft
3.The control panel can be connected to one or two sets of lights
4.Lamp control effect, opening, closing, breathing, and flashing, 2-level switch, 3-level switch control, PWM signal control
5.Small size and light weight, without adding additional burden to the remote control vehicle

Description:

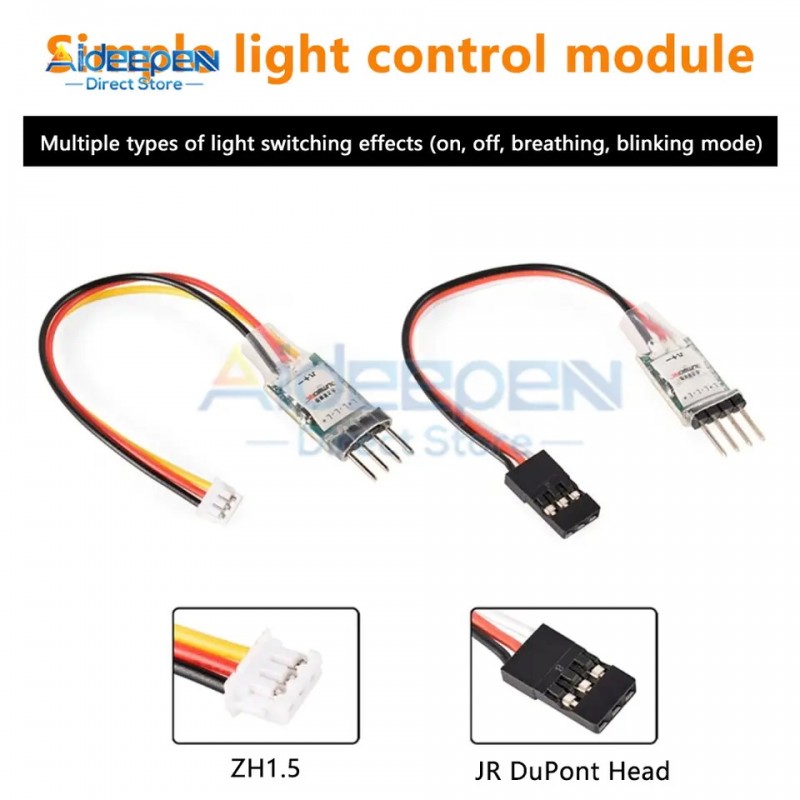

RC LED light control is used in conjunction with a remote control, which has a 3CH function button! A simple light control module with multiple light switching effects (on, off, breathing, flashing mode), simply plug the servo plug of the light control module into the third channel of the receiver to remotely control the light switch. The switch work mode: every time you quickly press the third channel to turn it on and off, the mode sequence cycles, simulating the car light control line, increasing realism, and is very suitable for hobbyists and enthusiasts.

Parameters:
Working voltage: 4.8V-6V
JR DuPont head size: 120MM
ZH1.5 size: 125MM
Material: Plastic+Components
Color: As shown in the picture
Compatible with RC vehicles
Type: RC model parts and accessories
Switch working mode: Each time the third channel switch is quickly turned twice or the third channel button is pressed twice, the following sequence of cyclic changes is followed:
2-way output off ->A-way output on, off, breathing, off ->B-way output on, off, breathing, off ->Both outputs are on, off, breathing, off, flashing, off Loop.
Mosquito car version: 1.5P connector, directly plugged into the 1.5P socket on the motherboard
Universal version: Simply plug it into the idle third channel of the receiver, very simple and practical!

Package include:
Module X1
