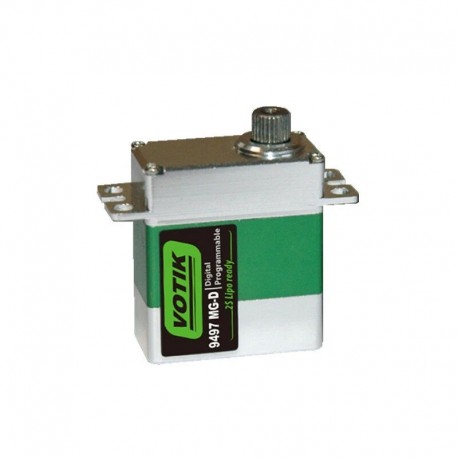

VOTIK 9497 MG-D Micro Digital Servo Metal Steering Gear Coreless Motor for RC Airplane Fixed Wing Helicopter

Reference: (SKU): D05468

In stock

Specification:

Gears : Metal

Ball bearings : 2pcs

Motor : Coreless

Weight : 19,2g / 0,68oz

Dimensions : 22.9 x 26 x 11.9 mm

Speed/Torque@ 4,8V : 5,4kg/cm - 0,11s/60°

Speed/Torque@ 6,0V : 6,8kg/cm - 0,09s/60°

Speed/Torque@ 7.4V : 8,6kg/cm - 0,08s/60°

Input Voltage : 4.8V - 8.4V

Harness length : 225mm

Compatibility : Univers'al connector

Dead band : 1μs

Features:

Power ultra high-end specially designed for use in glid'ers or any other application requiring power, prec'ision and reliability.

The 9497 MG-D is the powerful servo in its category.

Everything in this servo has been designed to offer the best performance.

Its thin enough to mount in composite glid'er wings.

Electronics, motor potentiometer and high quality.

Metal gears mounted on two bearings combine robustness, preci'sion and reliability.

Digital

Programmable (card programming will be available on PC)

2S Lipo Ready": optimized performance whether in 4.8V, 7.4V or 6V. HV for all!

Package included:

1 x VOTIK 9g Micro Metal Servo Steering Gear for RC Airplane Fixed Wing Helicopter Car
