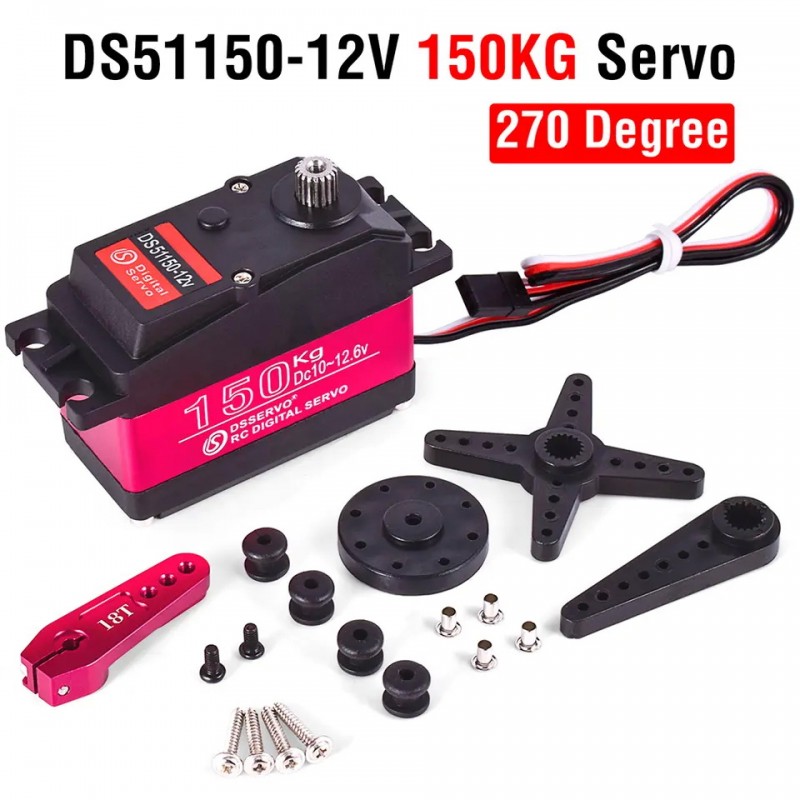

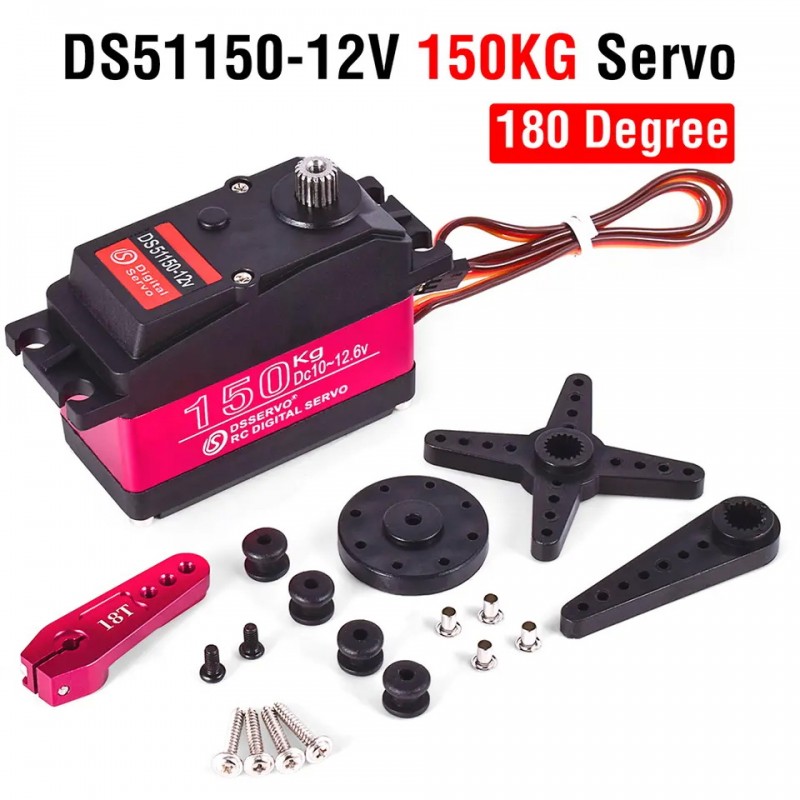

DS51150-12V

Operating Voltage: 10V-12.6V

Speed:

▶0.24sec/60 degree @10V

▶0.21sec/60 degree @12V

▶0.19sec/60 degree @12.6V

Torque:

▶150kg.cm.@10V

▶165kg.cm.@12V

▶173kg.cm.@12.6V

Item Name: Digital Servo

Rotation angle: 180 degree,270 degree optional

Connector wire length: 17.7in (450mm)

Gear ratio: 279

Pulse width range: 500～2500μsec

Dead band width Microseconds

Waterproof performance: IP67

Size: 65*30*48 mm ( 2.55x1.18x1.89 in)

Weight: 162g (5.71 oz)

Package included:

1 x Digital Servo

1 x 18T Metal Servo Arm

Note:

Only the above package content, other products are not included.
