Instructions:

CF Frame Combo Version
?Features
1.Electric power system.
2.Simple and light weight design provides awesome flight performance and extreme 3D capability.
3.Rigid carbon fiber frame design.
4.Beautiful factory painted fiberglass canopy.
5.Rotor head/tail with thrust bearings.
6.Direct-to-swash CCPM linkage.
7.Center of gravity of Battery tray designed close to the rotor head.

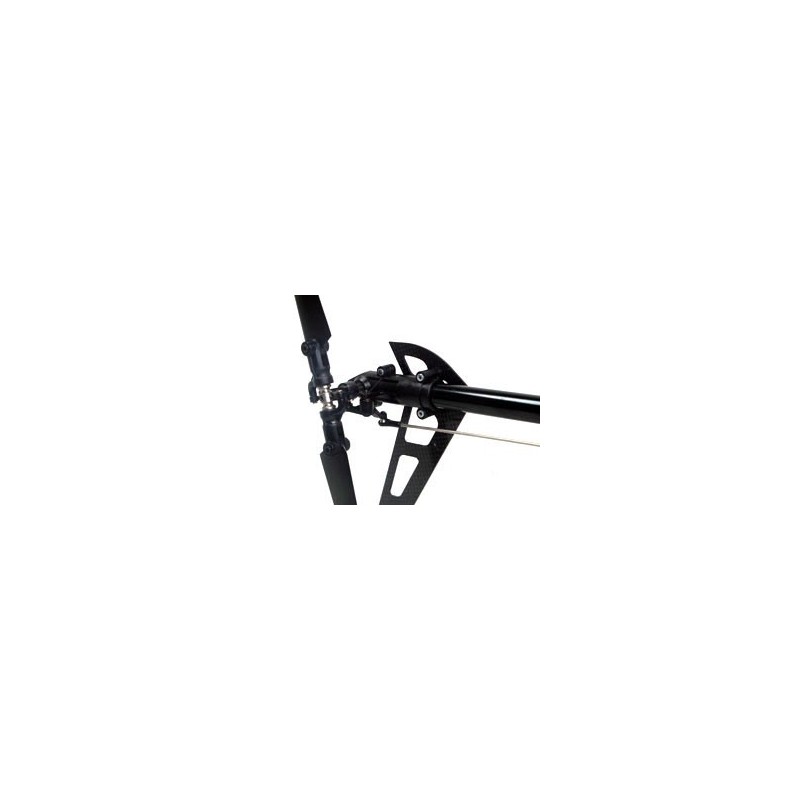

8.Tail rotor drive belt system.
9.Fully driven tail auto rotation system.
10.Tail servo boom mount.

Specification:
?Length:850mm
?Height:310mm
?Main Blade Length:425mm
?Main Rotor Diameter:970mm
?Tail Rotor Diameter:200mm
?Motor Ponion Gear:12T/13T
?Main Drive Gear:162T
?Autorotation Tail Drive Gear:145T
?Tail Drive Gear:31T
?Drive Gear Ratio:1:13.5:4.68/1:12.46:4.68
?Weight(w/o power system):935g
?Flying Weight:Approx 1700g

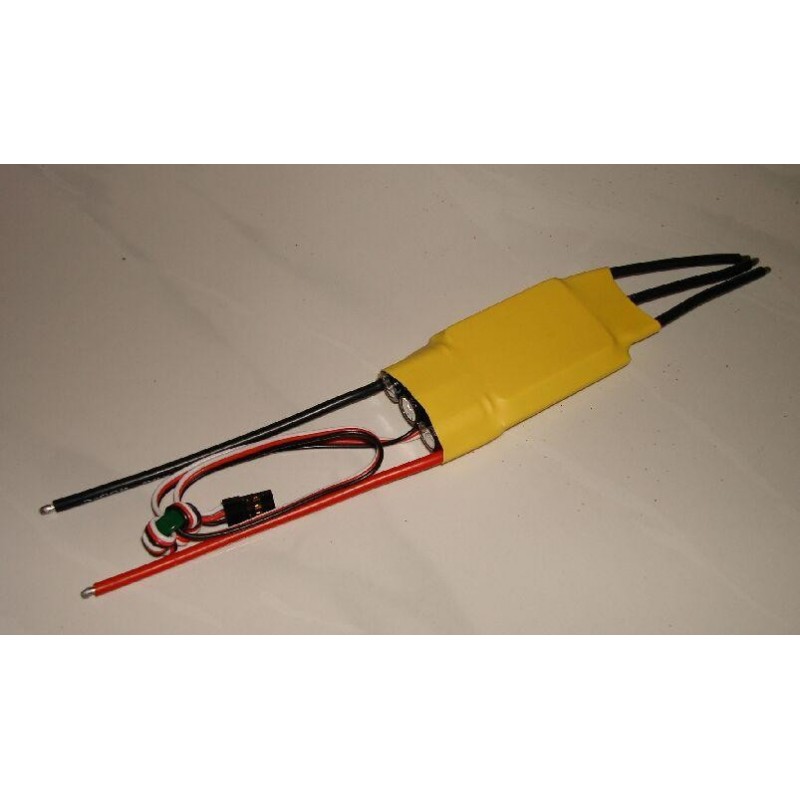

ESC

• Instantaneous maximum current  85A
• Continual maximum current     75A
• BEC Current     5.5V/4A
• Size : 73 x 39 x 13 mm
• Weight : 75 g
• Voltage : 2s- 6s

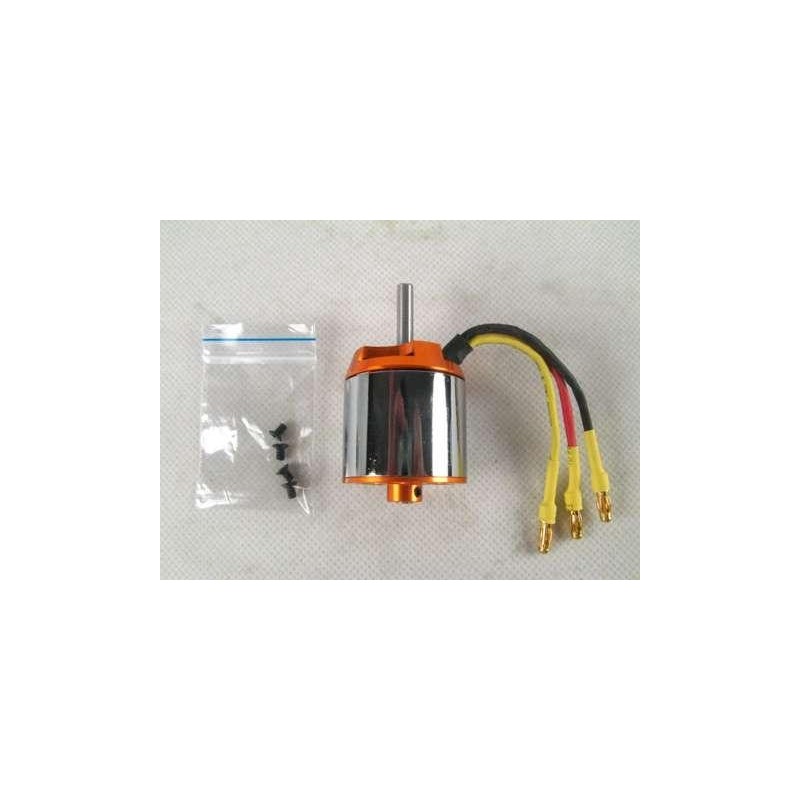

Motor

• Motor Kv: 1600
• Weight : 175 Grams
• Shaft Diameter 5 mm

---------------------------------------------------------------------------

Instructions:CF Frame Combo Version
?Features
1.Electric power system.
2.Simple and light weight design provides awesome flight performance and extreme 3D capability.
3.Rigid carbon fiber frame design.
4.Beautiful factory painted fiberglass canopy.
5.Rotor head/tail with thrust bearings.
6.Direct-to-swash CCPM linkage.
7.Center of gravity of Battery tray designed close to the rotor head.
8.Tail rotor drive belt system.
9.Fully driven tail auto rotation system.
10.Tail servo boom mount.

Specification:
?Length:850mm
?Height:310mm
?Main Blade Length:425mm
?Main Rotor Diameter:970mm
?Tail Rotor Diameter:200mm
?Motor Ponion Gear:12T/13T
?Main Drive Gear:162T
?Autorotation Tail Drive Gear:145T
?Tail Drive Gear:31T
?Drive Gear Ratio:1:13.5:4.68/1:12.46:4.68
?Weight(w/o power system):935g
?Flying Weight:Approx 1700g
?Color carton:48.3x18.7x9.8cm
?Outer carton:58x50x42cm ,12sets/ctn

Accessories:
?Tarot 500(CF) Kit SetX1 set
?Fiberglass painted canopyX1
?425 carbon fiber bladesX1
?ESC 75A Brushless ESCX1
  (Built-in 5.5V step-less adjustable BEC6A  7A Max)
?500L Brushless motor(1600KV)X1
?Motor ponion gear 12TX1
?Motor ponion gear 13TX1
