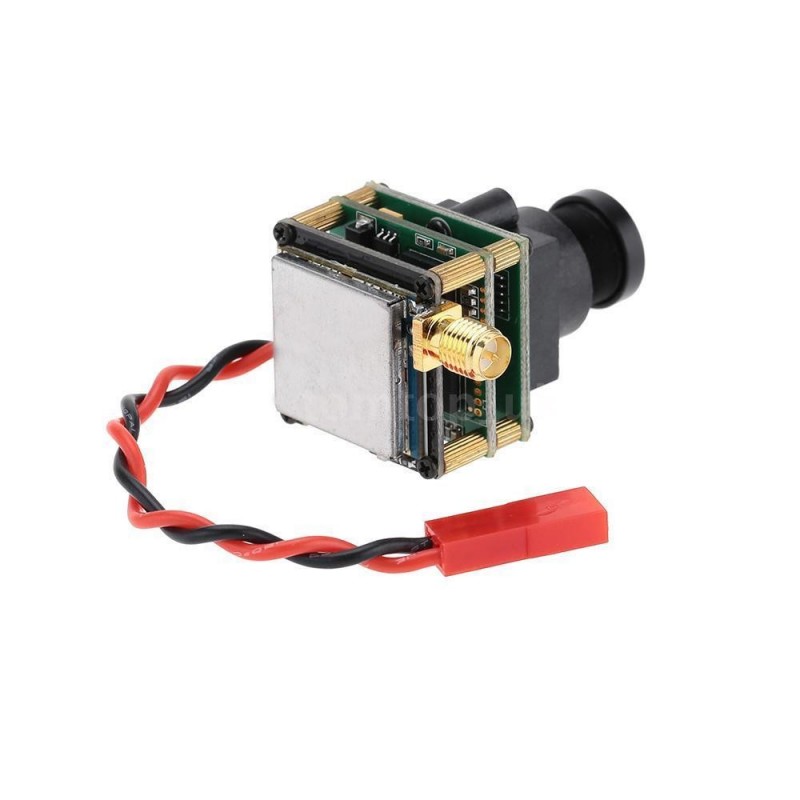

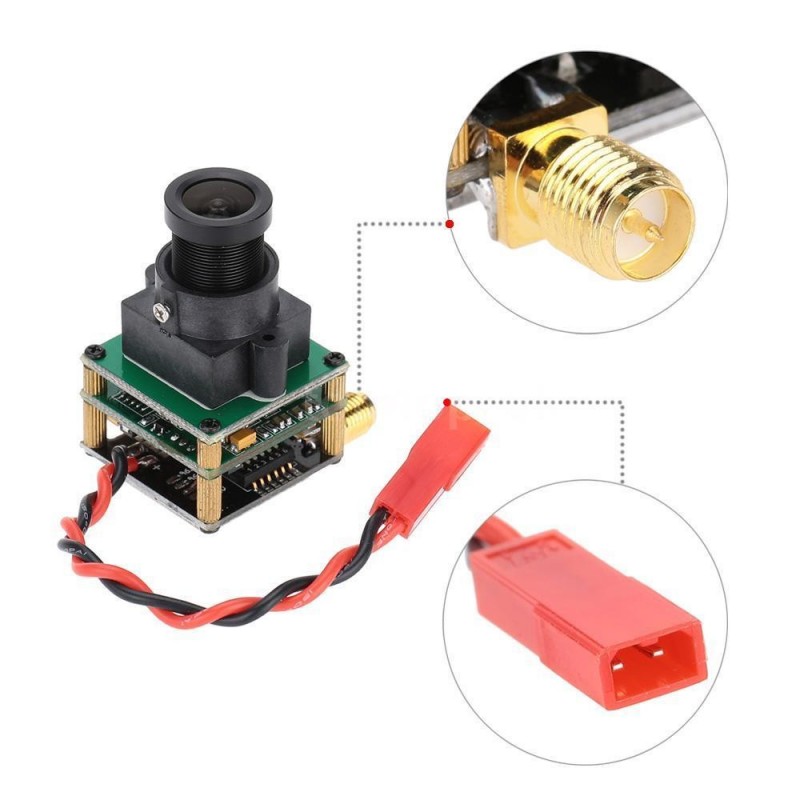

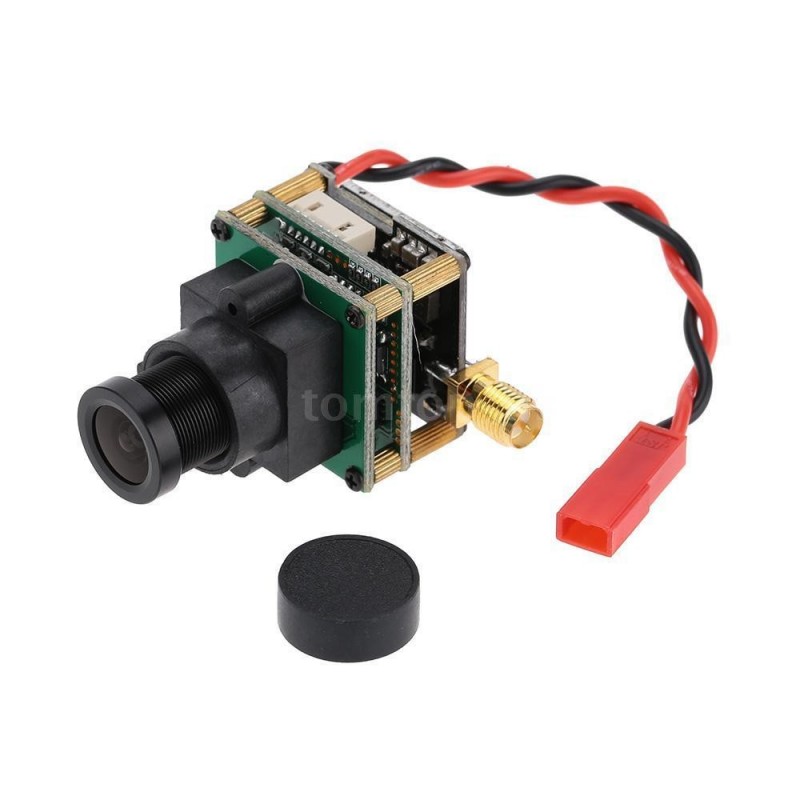

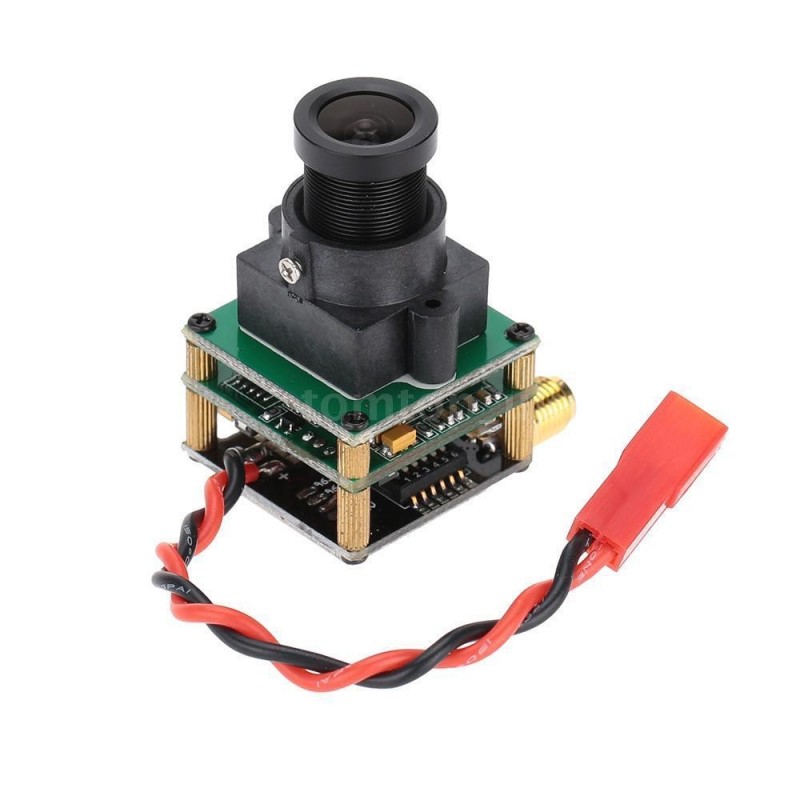

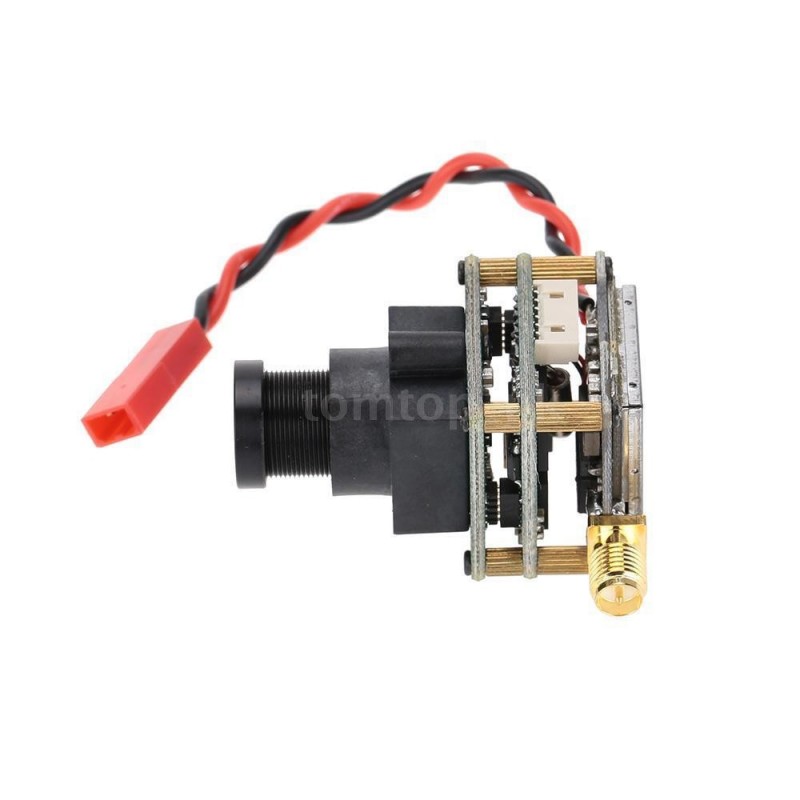

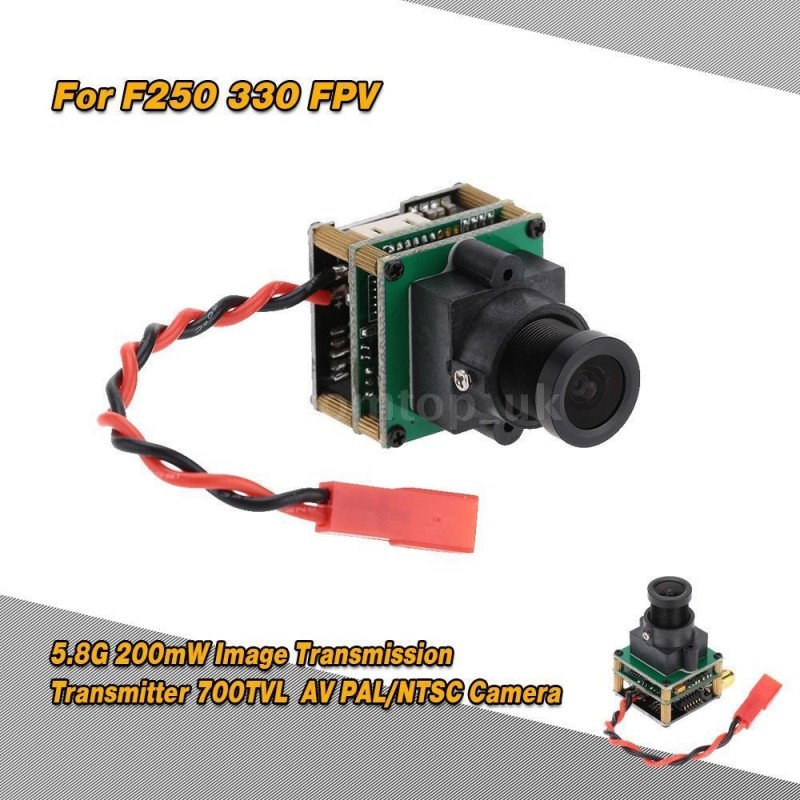

Integrated 5.8G 200mW image transmission and 700TVL AV PAL/NTSC camera for F250 330 FPV, which has made the camera and image transsion product into one,and will reduce the trouble of installation.

Features:
Frequency: 5.8G wide-band FM video/audio
Stereo audio: L/R audio channel
Transmition Power: 200mw 23dbi
Fully support PAL/NTSC video format
Hollowing out design make heat dispassion more efficient

Specifications:
Signal system: PAL/NTSC
Pixels: PAL, 1020H * 596V(610000 pixel) NTSC, 1020H * 508V(520000 pixel)
Effective Pixels: PAL, 976H * 582V(570000pixel) NTSC, 976H*494V(480000pixel)
Definition: 650/700TVL(BW), 650/700TVL(BW)
Minimum illumination: 0.01Lux/F1.2
Video Output: 1.0Vp-p75Ω
Sync: Internal Synchronization
Shutter speed: 1/50(1/60)~1/100,000(s)
AGC(automatic gain control): +18dB maximum
Gain Control : Auto
DNR (Digital Noise Reduction): 2DNR Support 0~15 16 grade adjustable
Wide dynamic: Digital wide dynamic 0-60
OSD: support
Automatic gain control: 0.25/0.50/0.75/1.00
Aperture control: yes
Backlight compensation: HLC/Backlight Compensation
Backlight compensation: Auto
SNR: 52dB(minimum) / 60dB (Maximum)(AGC automatic closing)
Gamma correction: 0.45 / 1.0
White Balance: On / OFF switch
Power: DC12V±5%
Ambient temperature: -20 ~ +60℃
Size: 25 * 25mm
Net weight: 30g

Package Information:
Package size: 9 * 7 * 4cm / 3.6 * 2.8 * 1.6in
Package weight: 29g / 1.0oz
Adhesive tape package

Package List:RM4120
1 * Integrated Transmitter and Camera
