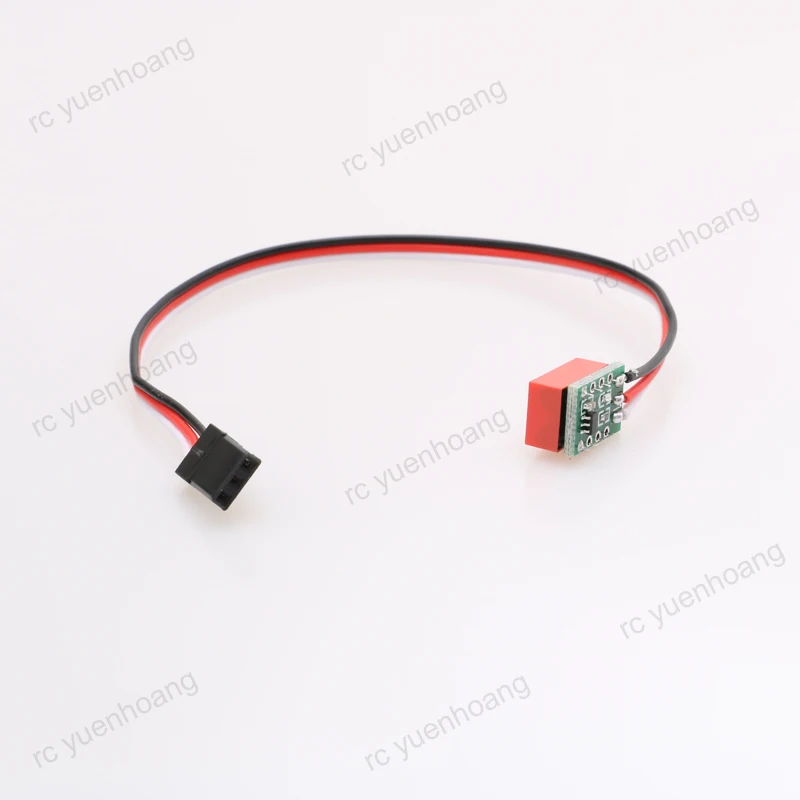

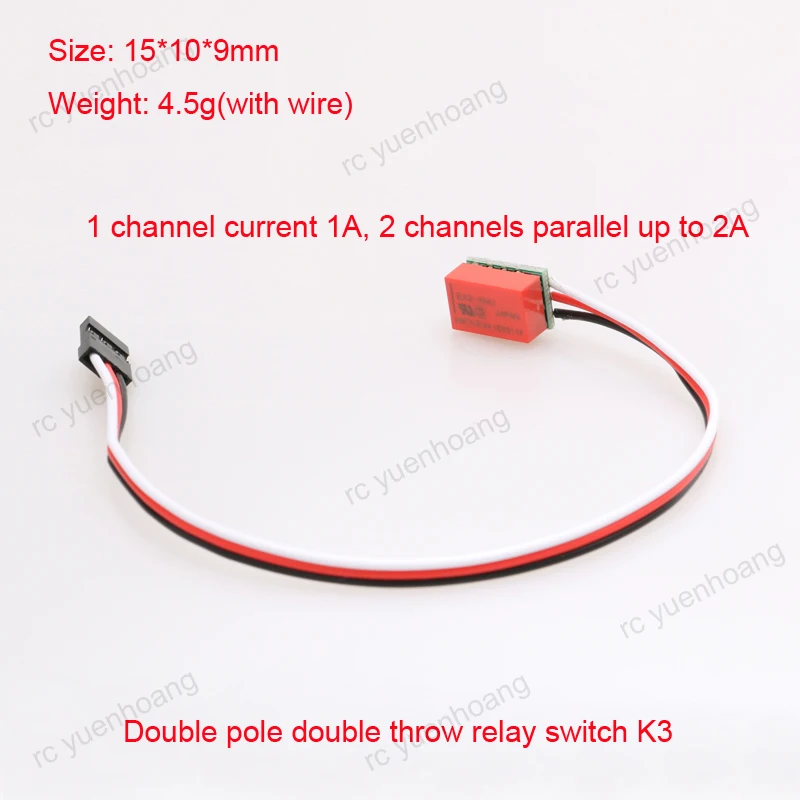

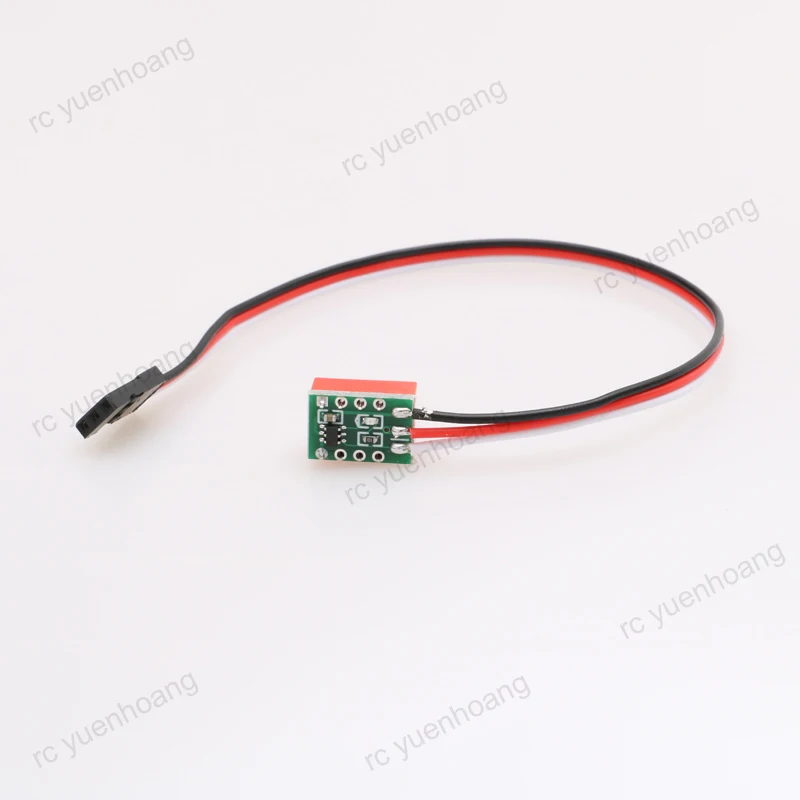

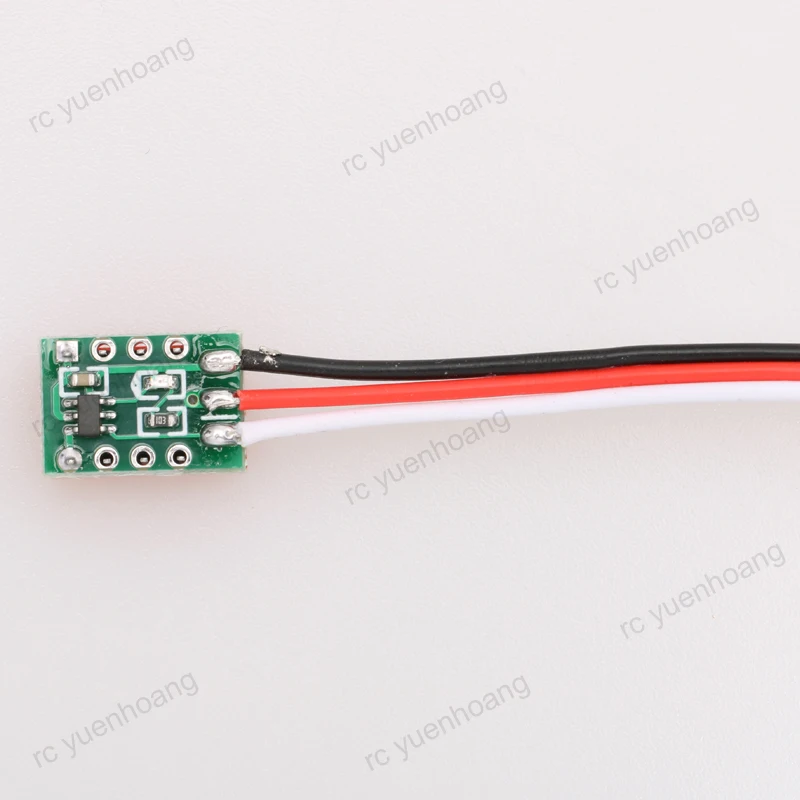

1PC Remote Control Relay 1CH K3 PWM Switch Navigation Light Controller Electronic Module Max 1A for RC UAV Drone DIY Parts

Features:

- Only 5V voltage receiver is supported, otherwise the module may be damaged. If the receiver and the servo are using a high voltage system, the module should be added with a step-down module.

- 1 channel servo signal input, control 1 relay switches

- Parallel maximum 1A current

- One way LED indicates working status

- With boot protection, easy to operate

- Input channels do not need to be calibrated, compatible with various brands of remote control devices

- Adopt transparent heat-shrinkable rubber, stylish appearance, at a glance

- Small size and light weight

Application range:

- Remote control model rocket launch

- Remote control model smoke control

- weapon system control like real machine

- Model aircraft's smoke control

- Control of various remote switch systems

- Switch the signals of two cameras

- Control the opening and closing of various electrical power sources, such as navigation lights, searchlights, strobe lights, buzzers, etc.

- Control the camera shutter or switch the camera's recording and camera mode.

Functional Description:

- The remote switch remotely controls the electrical equipment on the aircraft model through a switch channel on the remote control, and the 1-way LED dynamically demonstrates the current switch state in real time, so it can be quickly started without an operation manual.

- This device does not require calibration and can be accurately compatible with remote control devices of various brands.

Typical application:

1. Connect

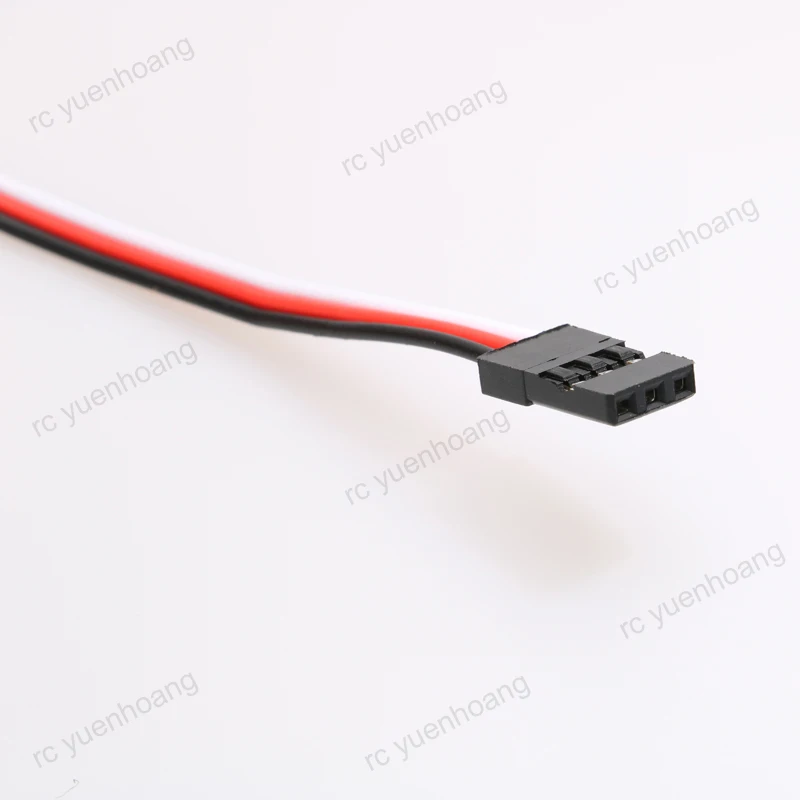

- Plug the signal input cable into an idle receiver channel that corresponds to a switch on the remote.

- The power indicator will be illuminated when connected to the receiver.

- The work indicator lights up when the switch channel is open and vice versa.

2. Working mode

- The red LED light indicates the power indicator.

- The blue LED indicates the relay's operating status.

3. Trigger

- Turn the switch on the remote control (OFF->ON), the green LED lights up and the relay starts to work.

Package included:

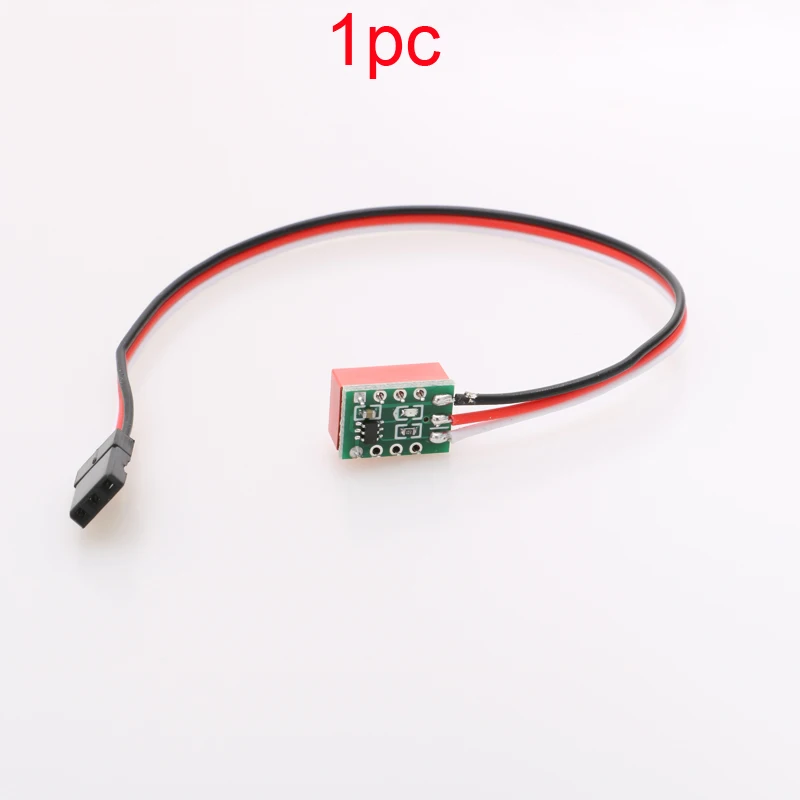

1pc x relay switch
