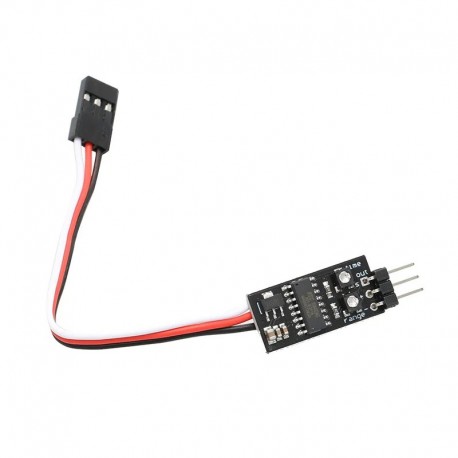

1pcs Servo Signal Converter Board Conversion Module Adjustable Angle Digital Signal Transfer Voltage 3.6-16V 50Hz for RC Model Μεγαλύτερη προβολή
Προηγούμενο Επόμενο

1pcs Servo Signal Converter Board Conversion Module Adjustable Angle Digital Signal Transfer Voltage 3.6-16V 50Hz for RC Model

(SKU): EMCT2514

1pcs Servo Signal Converter Board Conversion Module Adjustable Angle Digital Signal Transfer Voltage 3.6-16V 50Hz for RC Model

Περισσότερες λεπτομέρειες

Διαθέσιμο

18,00 € με Φ.Π.Α

Άλλες πληροφορίες

1pcs Servo Signal Converter Board Conversion Module Adjustable Angle Digital Signal Transfer Voltage 3.6-16V 50Hz for RC Model DIY Parts


Specification:
- Item name: signal converter
- Voltage: 3.6-16V
- Input voltage=Output voltage
- Output: general PWM servo signal
- Output signal frequency: 50Hz
 （if you give 300Hz signal as input, the output is also 50Hz. Generally, the remote control output servo signal is 50Hz, high frequency is used in special occasions）
- Suitable: 500-2500us 180 steering gear
- Board size: 25x12mm
- Board weight: 2g
- 3P line length: 10cm
- One side 3P cable, one side plug, compact and easy to use
- For rc model diy parts

- The difference between delay and slow speed:
  Delay: The servo does not move. After the delay time, it will execute immediately. (Maximum delay 4 seconds (the knob is full))
  Slow speed: The servo executes immediately, according to the set slow speed. (The speed can be slow enough to turn 180 degrees to take more   than 20 seconds)
- The knob is adjusted to the minimum, which can remove the function of delay or slow speed. The device is only used as a positive and negative and    rudder angle controller.

- Steps for usage:
  1.Turn the time knob to the minimum to remove the delay function (turn it counterclockwise)
  2.Insert the converter between the receiver and the steering gear
  3.Adjust the range knob and operate the remote control at the same time to confirm the front and back of the servo and the size of the rudder       angle
  4.Then increase the time knob to increase the delay

Package Include:
1pcs x signal converter

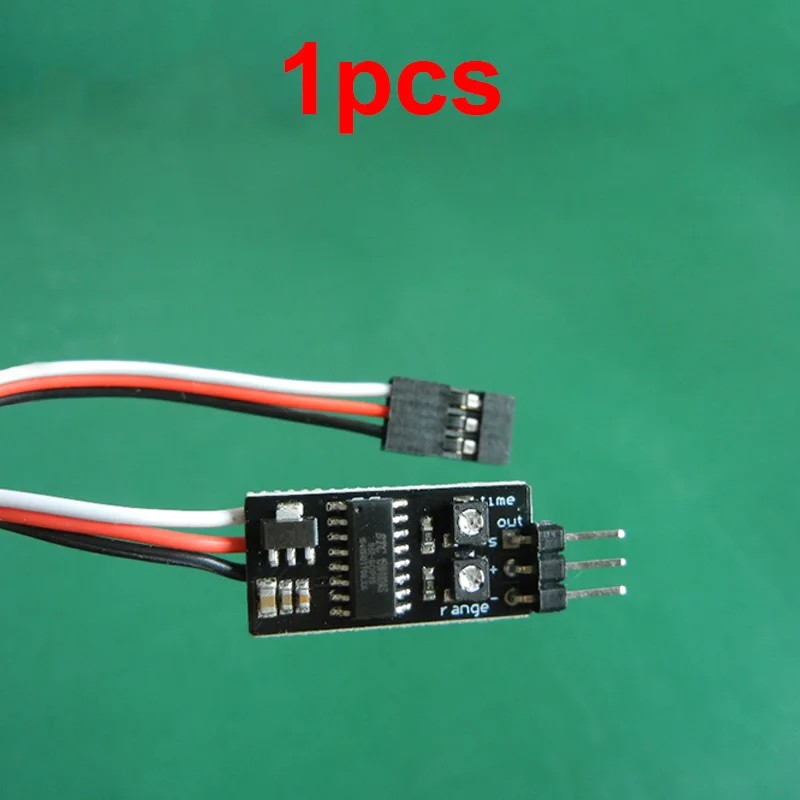

97895-
