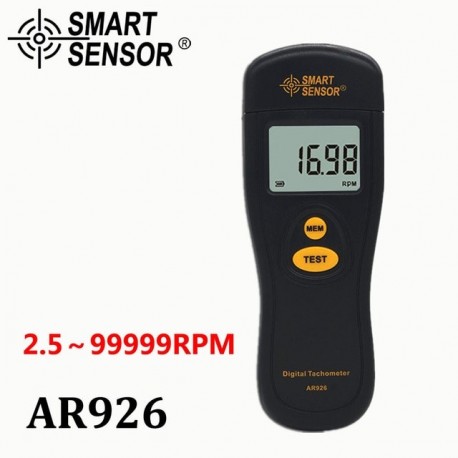

Digital Tachometer Rotational Speed Meter Contact Motor RPM Meter AR925

Μεγαλύτερη προβολή

Digital Tachometer Rotational Speed Meter Contact Motor RPM Meter AR926

Αναφορά (SKU): AR926

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

SMART SENSOR tachometer (RPM gauge) is an instrument measuring the rotation speed of a shaft or disk, as in a motor or other machine. The device usually displays the revolutions per minute (RPM) on a digital displays.Applying the MCU, photoelectricity and laser semiconductor technology, perform measurement of rotating speed Contact and Non Contact

Product Features

1. Applying the MCU, photoelectricity and laser semiconductor technology, perform measurement of rotating speed without contact

2. Wide measuring range and high resolution

3. Large LCD display

4. Automatically store the MAX,Min and LAST value

5. Low battery indication

6. ELEGANT and easy to use.

7. Solid structure built with durable electronic elements and light ABS plastic house

Technical Details

Product Specifications
Model	AR925	AR926
Measuring Range	Rotate: 0.5~19999RPM Linear: 0.05~19999.9m/min 0.2~6560 ft/min	2.5~99999RPM
Rotating Speed Resolution	0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM)	0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM)
Linear Rolling Speed Resolution:	0.01 m/min 0.05~99.99m/min) 0.1 m/min (Over 100 m/min)/ 0.1 ft (0.1~999.9 ft/min)/ 1 ft/min (Over 100 ft/min)	X
Measuring Distance:	X	50mm~500mm
Accuracy:	±(0.05%+1 digits )	±(0.05%+1 digits )
Sampling Time:	0.8 sec(Over 60RPM)	0.8 sec(Over 60RPM)
Max / Min Measuring:	V	V
Data Storage:	V	V
Memories Clear:	V	V
Range Selection:	Auto	Auto
Battery Indication:	V	V
Power:	3*1.5V AAA Battery (not include)	3*1.5V AAA Battery (not include)
Product Weight/Size	132g/1555535mm	91g/1505631mm
Package Weight/Size	125g/175.63.5cm	230g/20.511.16cm

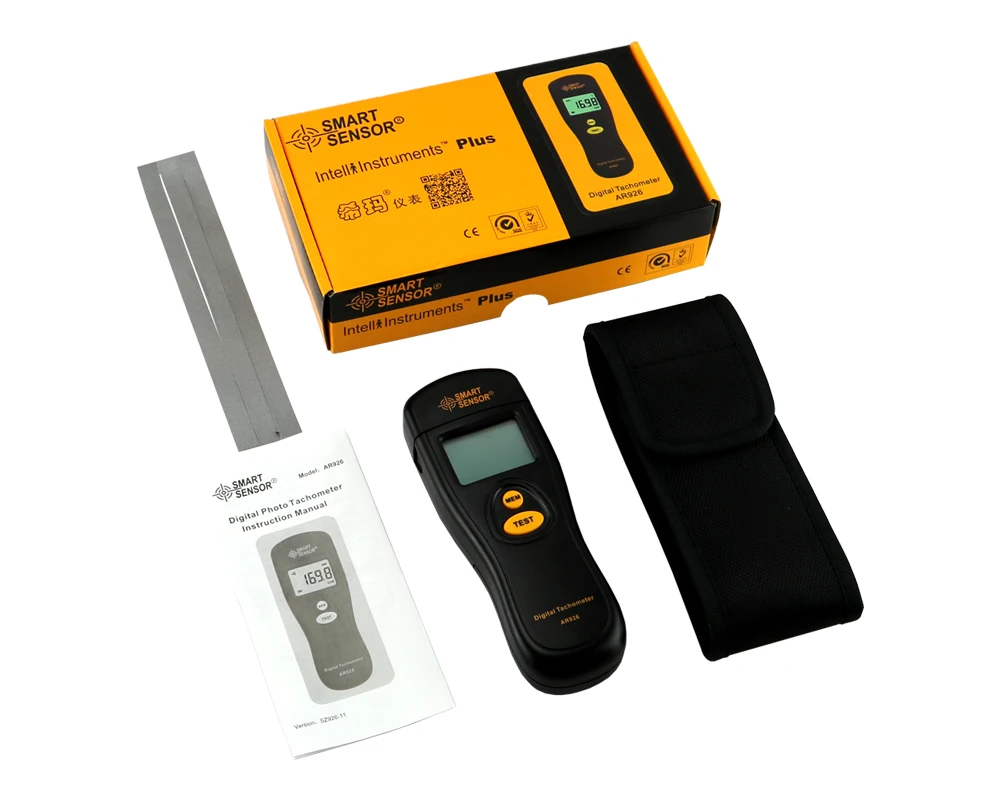

Packing Contents	1pcs Digital Tachometer 1pcs User's manual 1pc Black nylon bag 1pc Rubber tip for Linear Surface speed 3pcs Rubber tip for Rotating Speed	1pcs Digital Tachometer 1pcs User's manual 1pc Black nylon bag 1pc adhesive tape
Diagram Description

AR926		1. Laser beam 2. LCD display 3. Memory button 4. Test / Power off button

Product Photos AR926

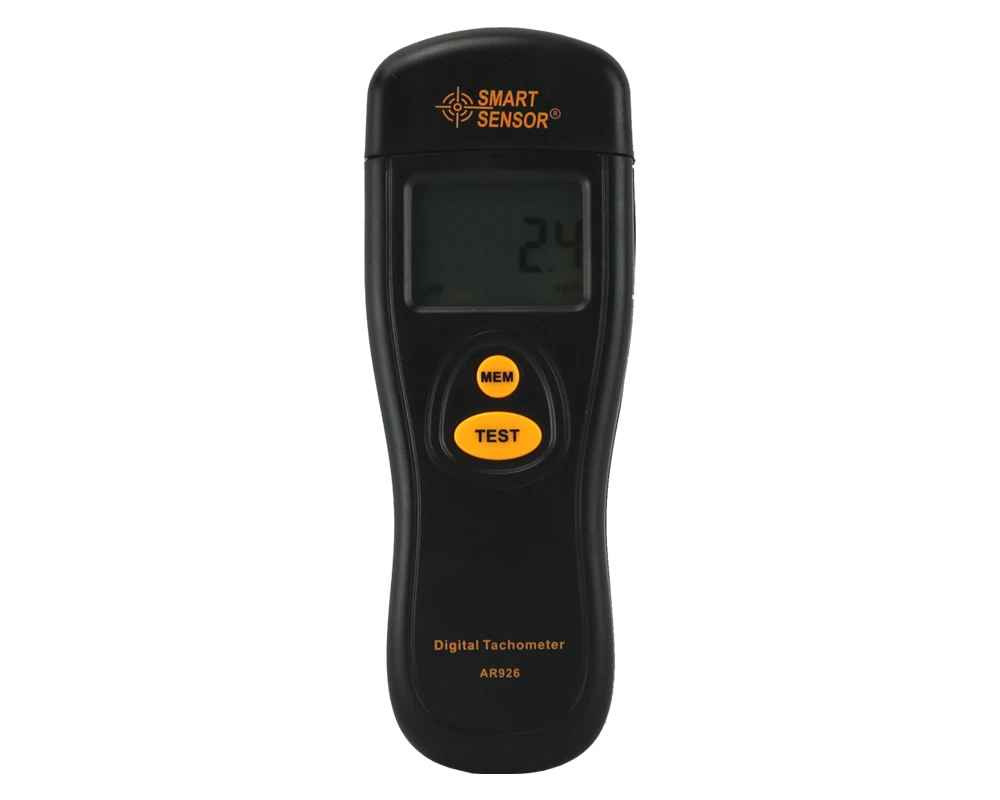

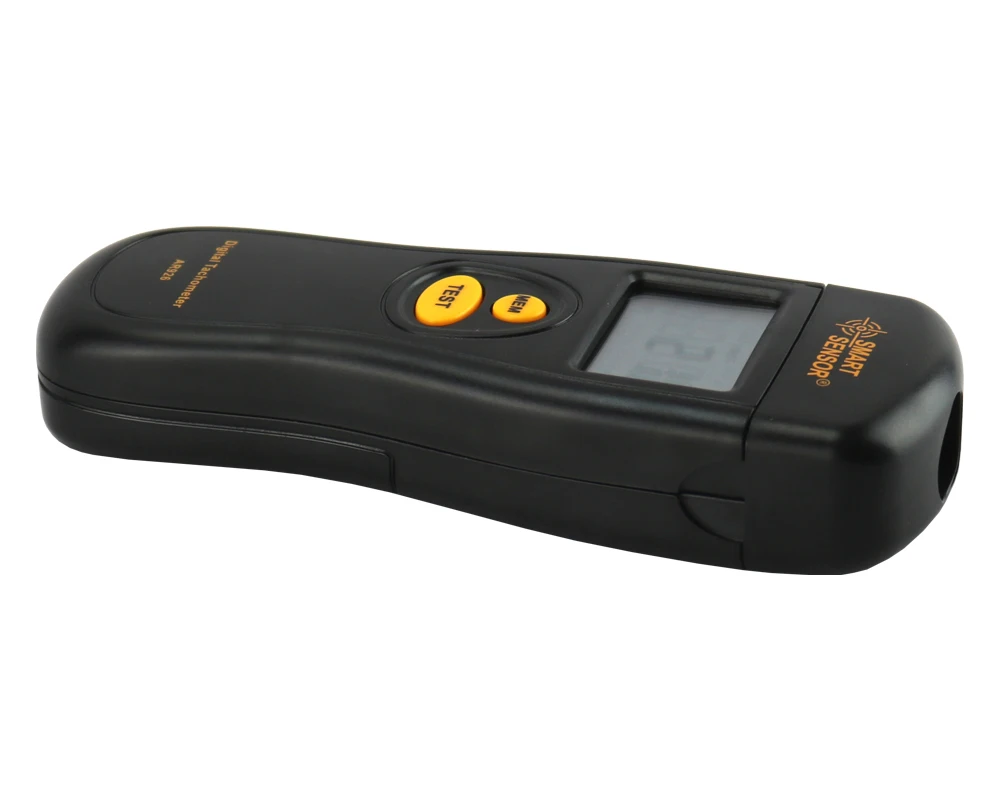

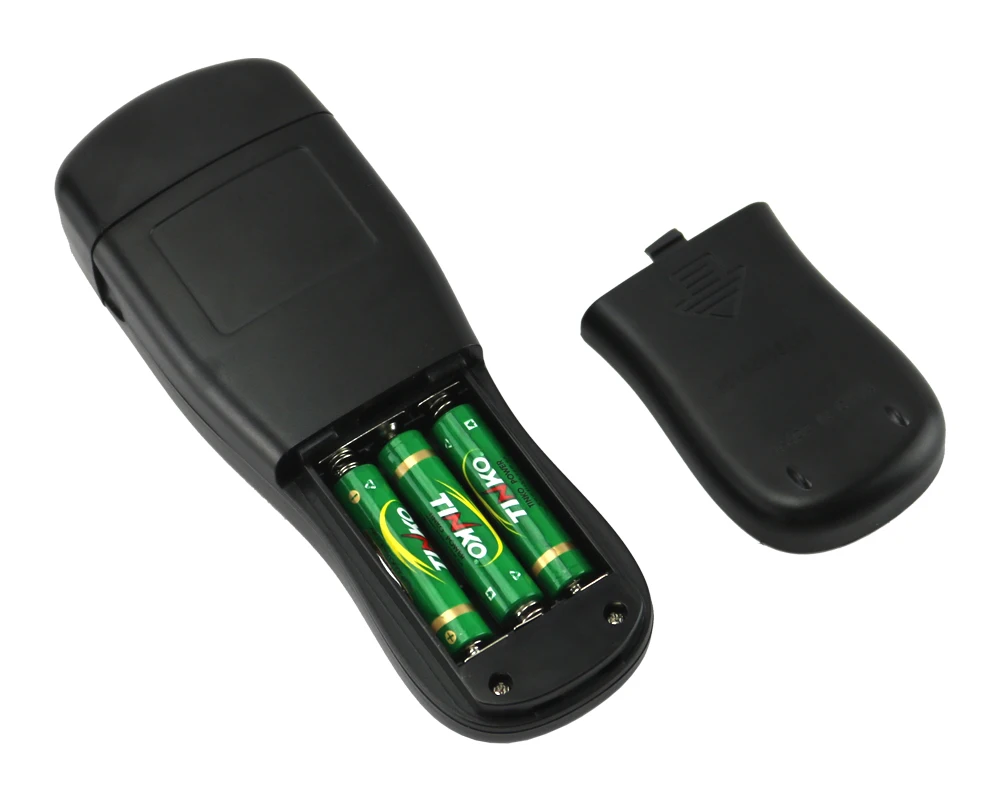

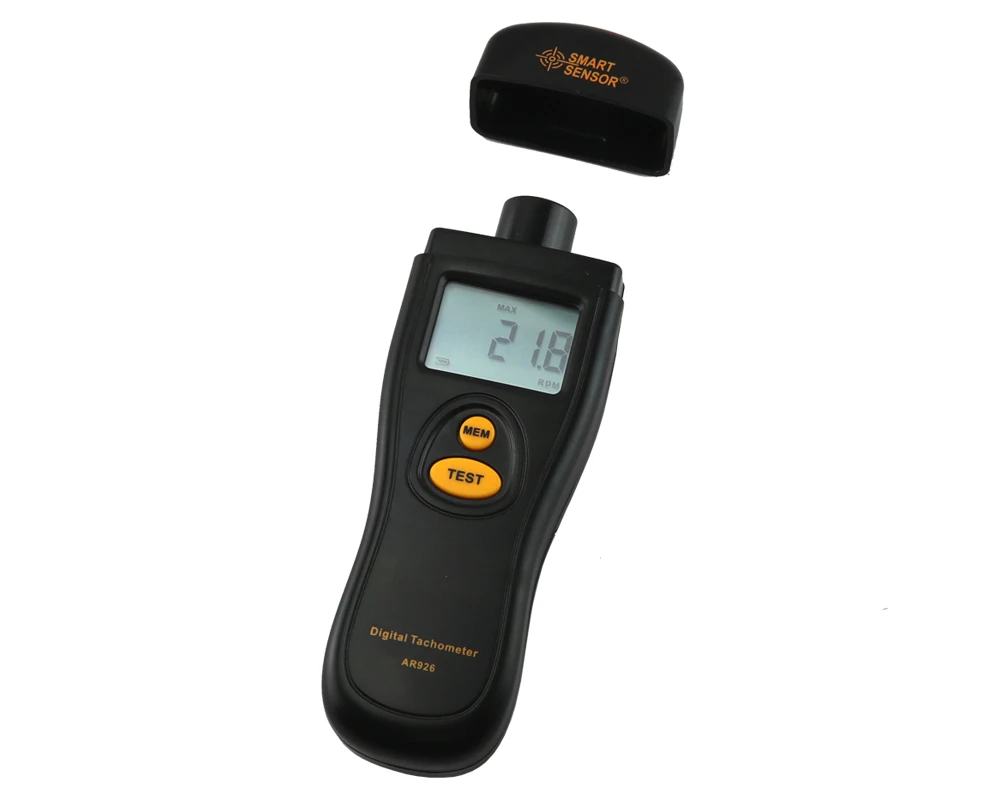

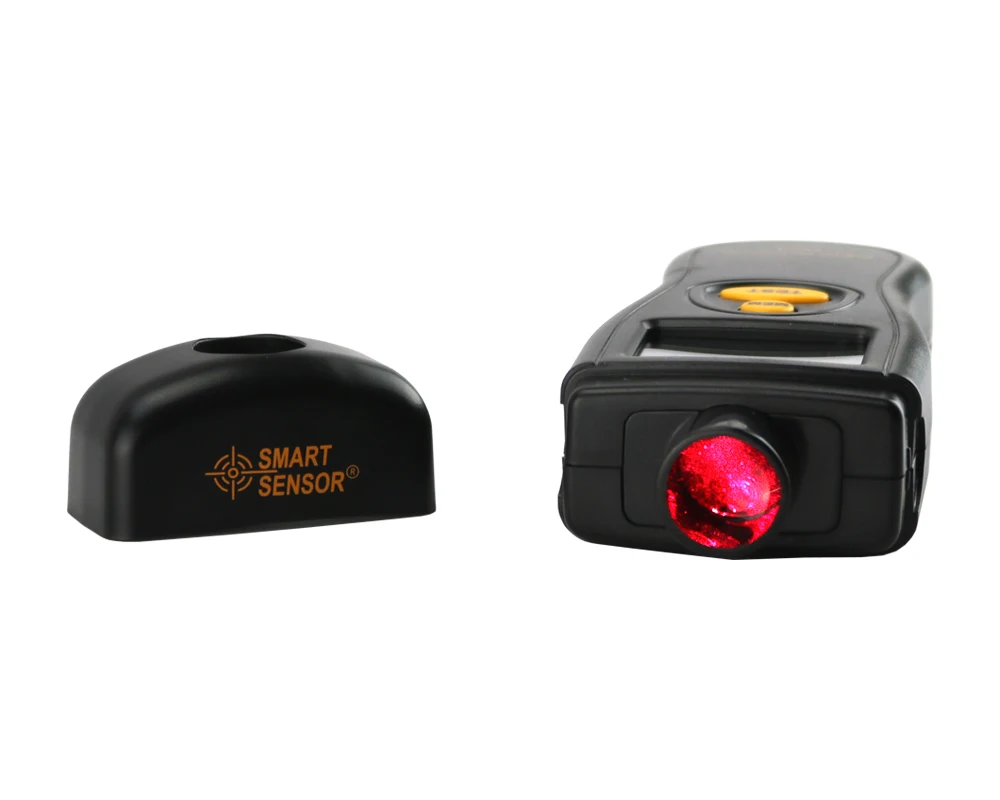

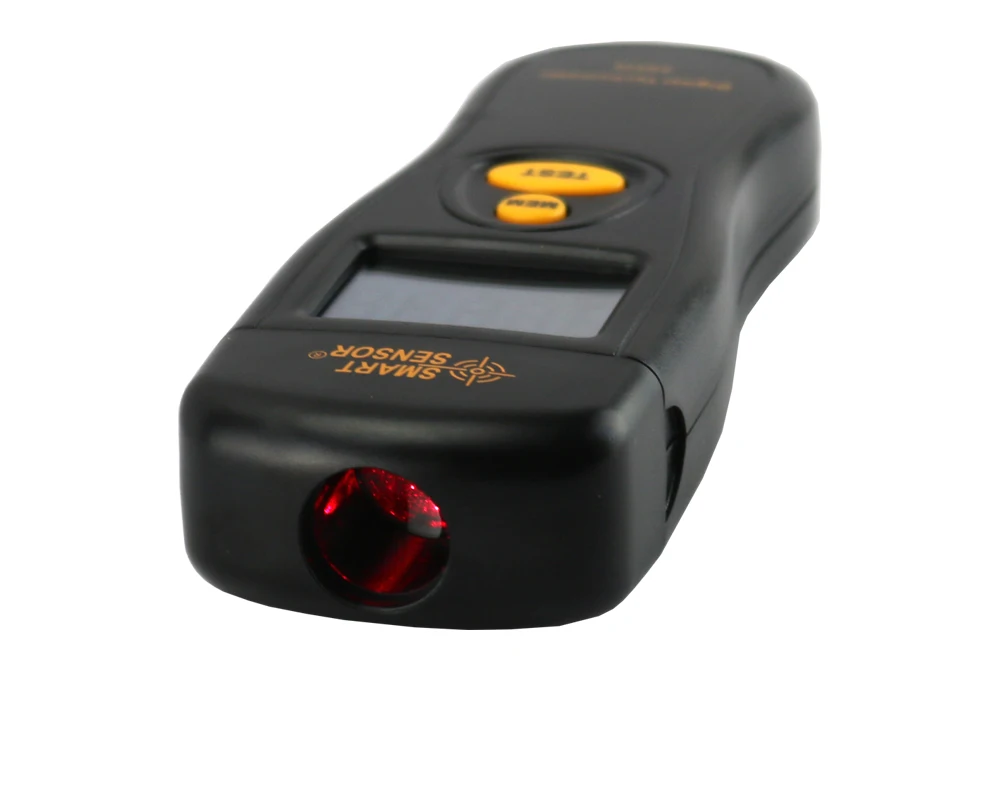

AR926描述图-1 AR926描述图-2 AR926描述图-3 AR926描述图-4 AR926描述图-5 AR926描述图-6 AR926描述图-8
