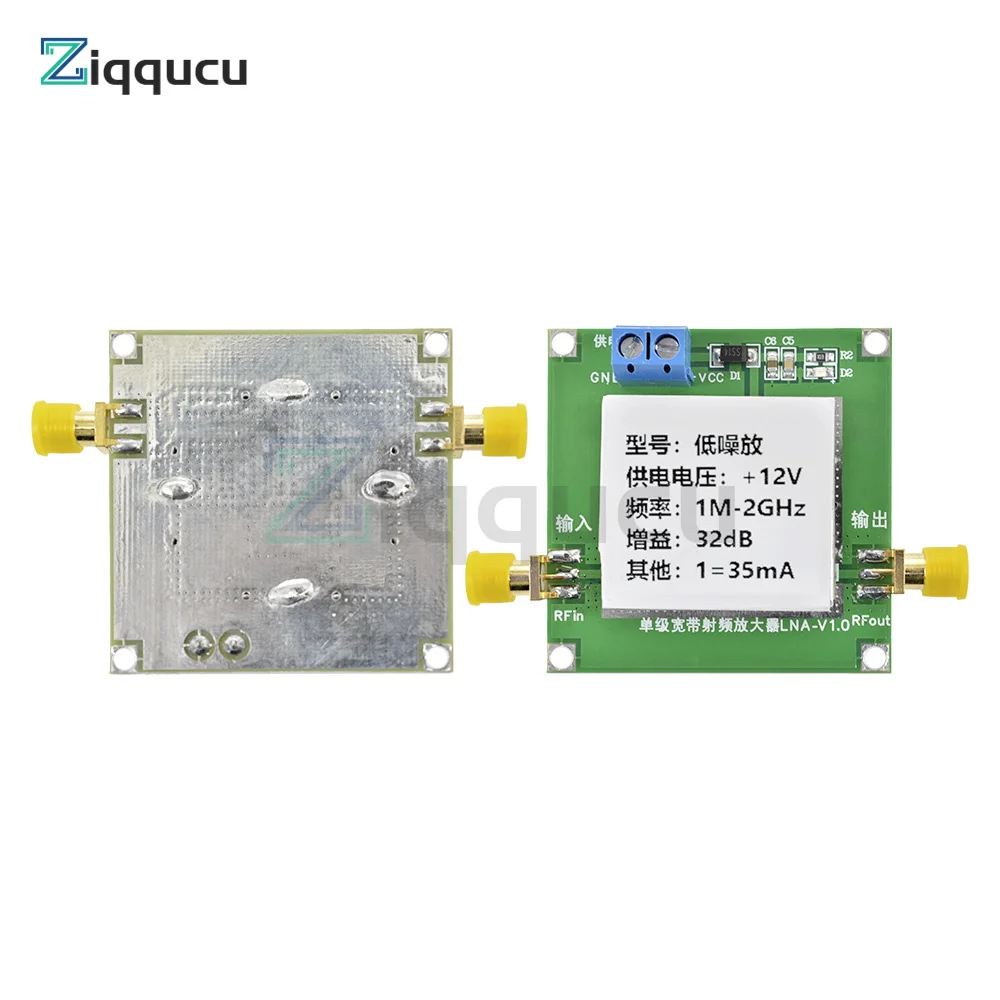

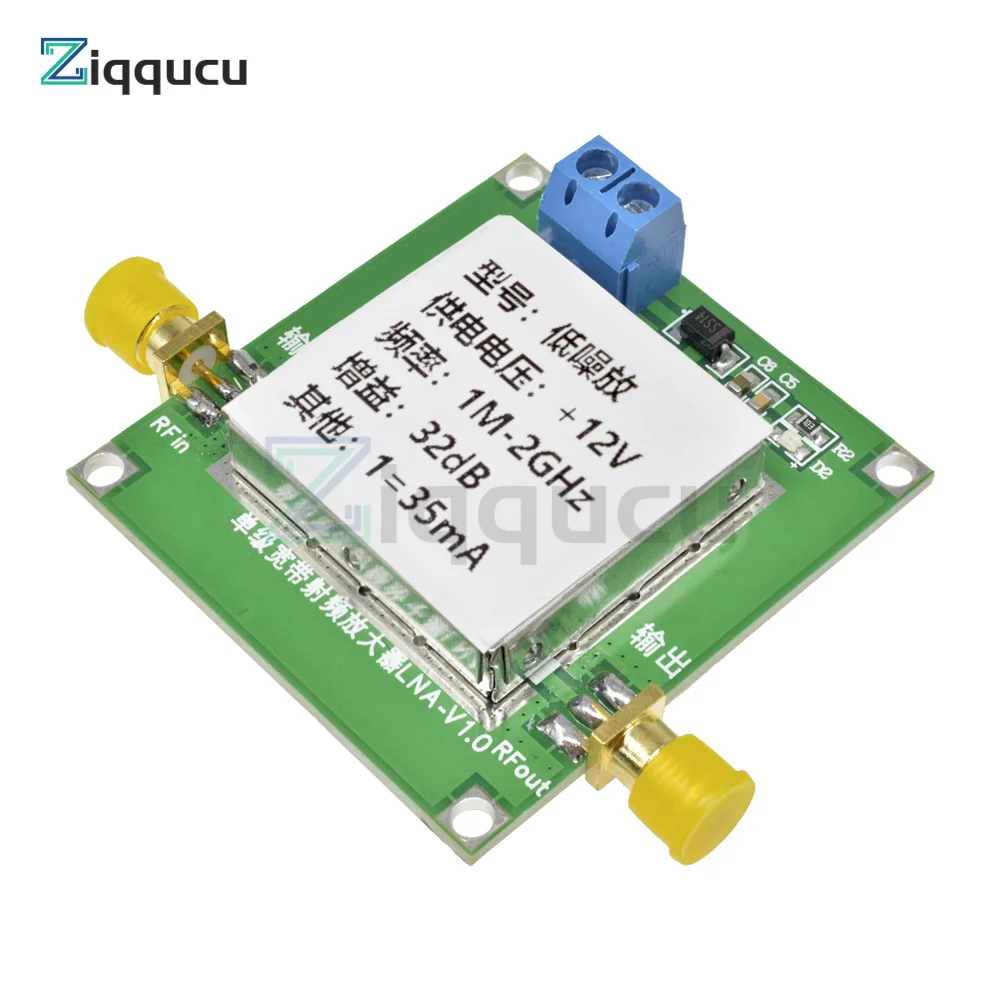

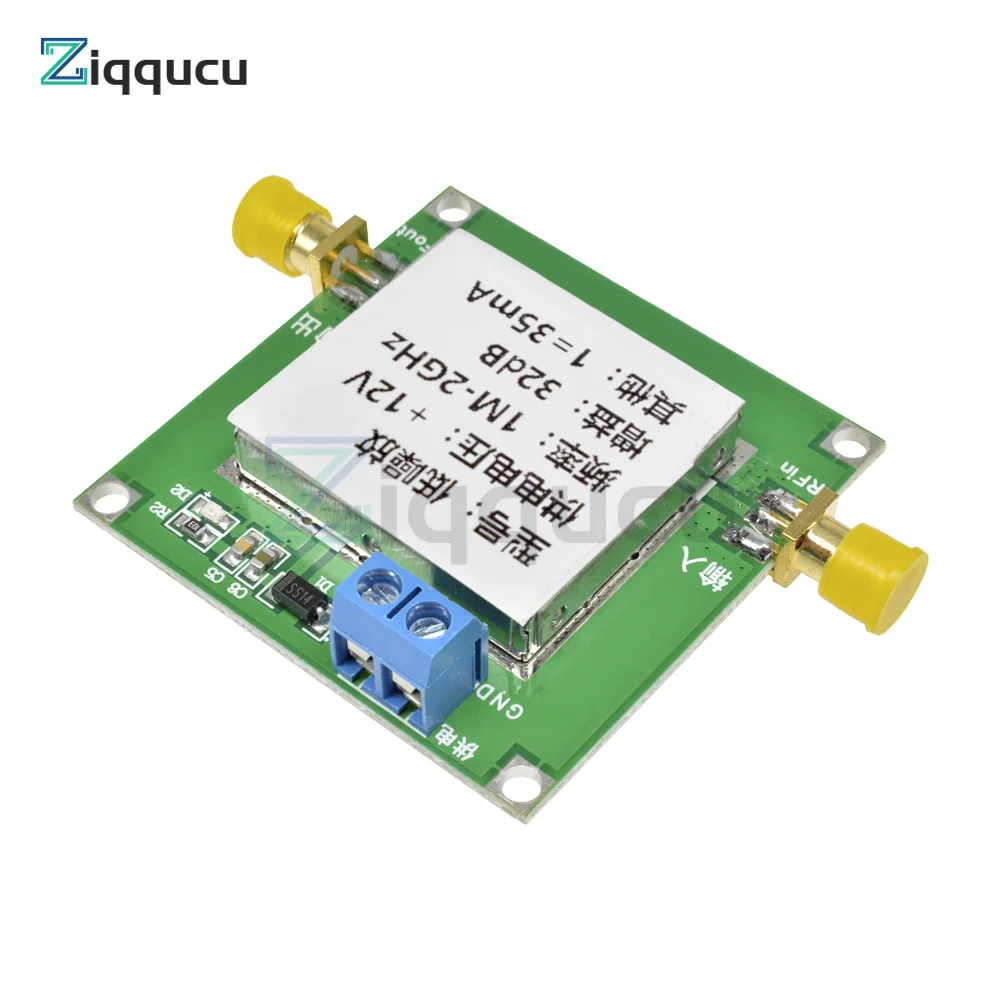

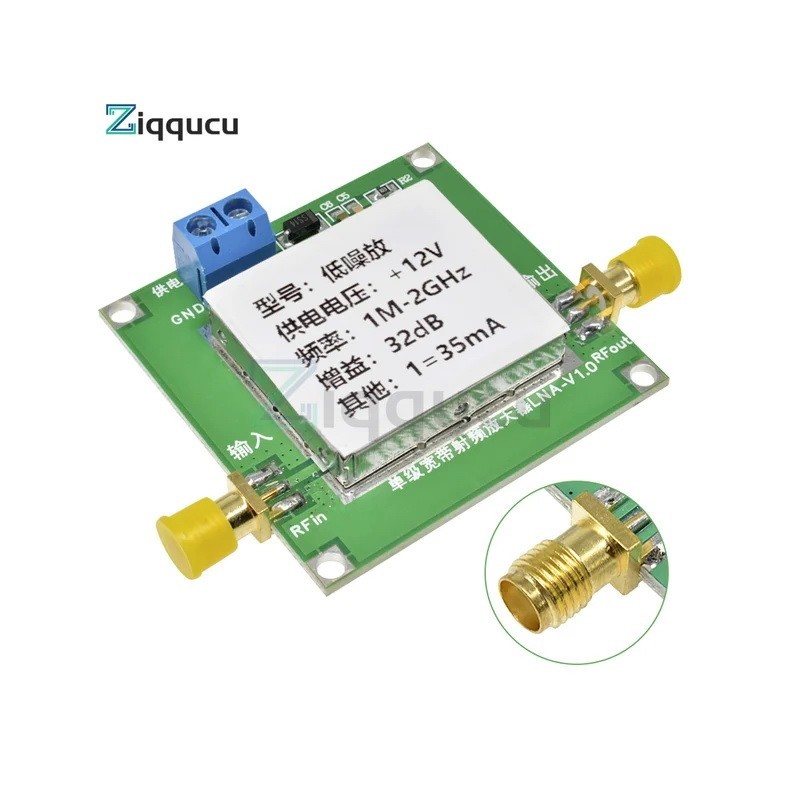

0.01-2000MHz 32dB

Product parameters:

1. Power supply voltage: 12V DC (current 35MA) with shielding shell

2. Gain: 32DB Input and output impedance: 50 ohms

3. High output power: 10dBm (under 2VPP50 ohm load)

4. Input signal: <=-22DBM (when the input is greater than -22 dBm, the output signal has been distorted)

5. Bandwidth: 1MHz to 2GHz (the gain is different at different frequencies, please refer to the S21 curve index for details)

6. Noise figure: 2dB (measured at 0.5GHz)

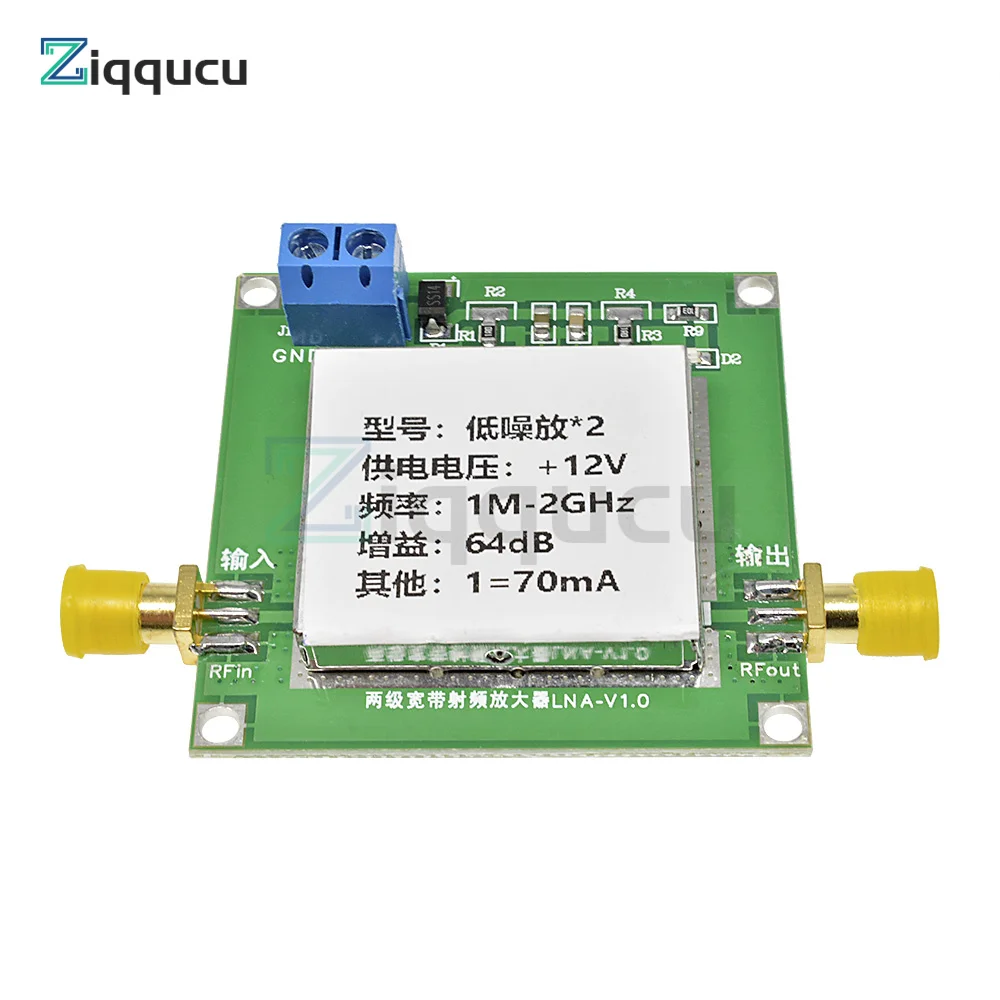

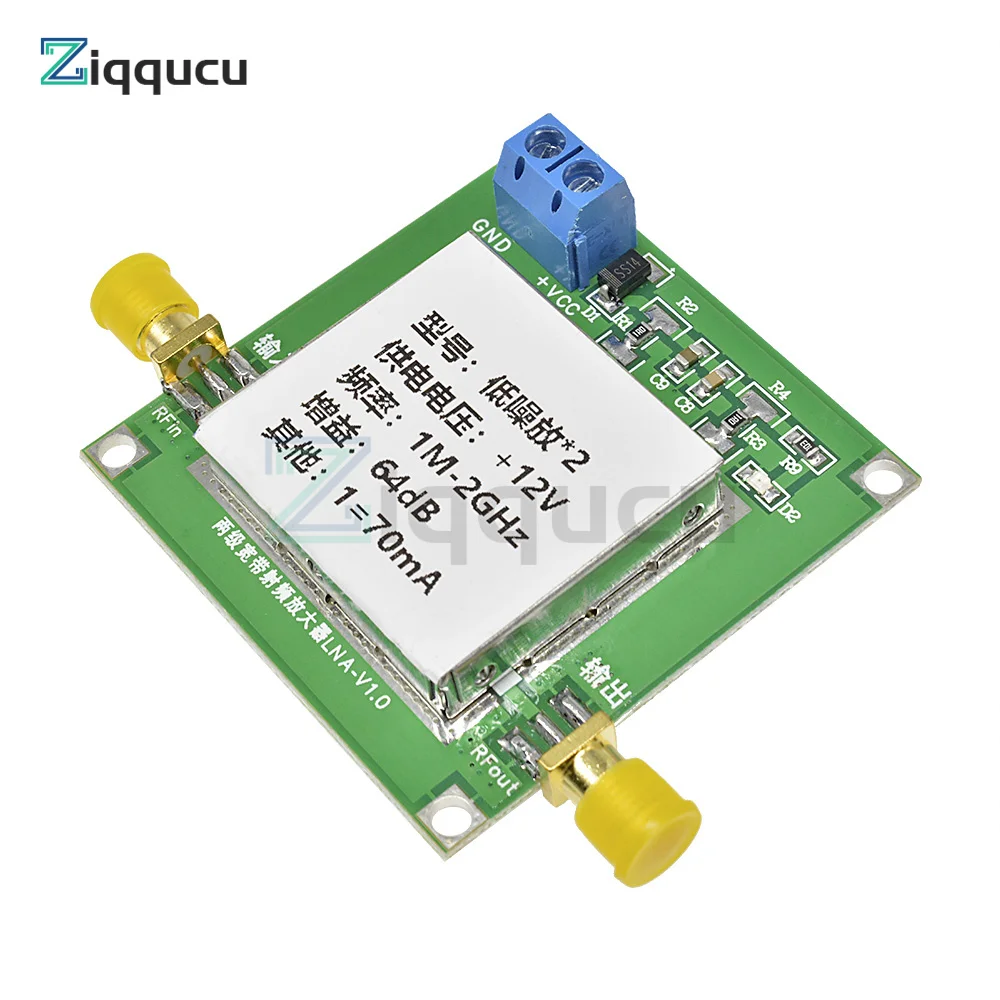

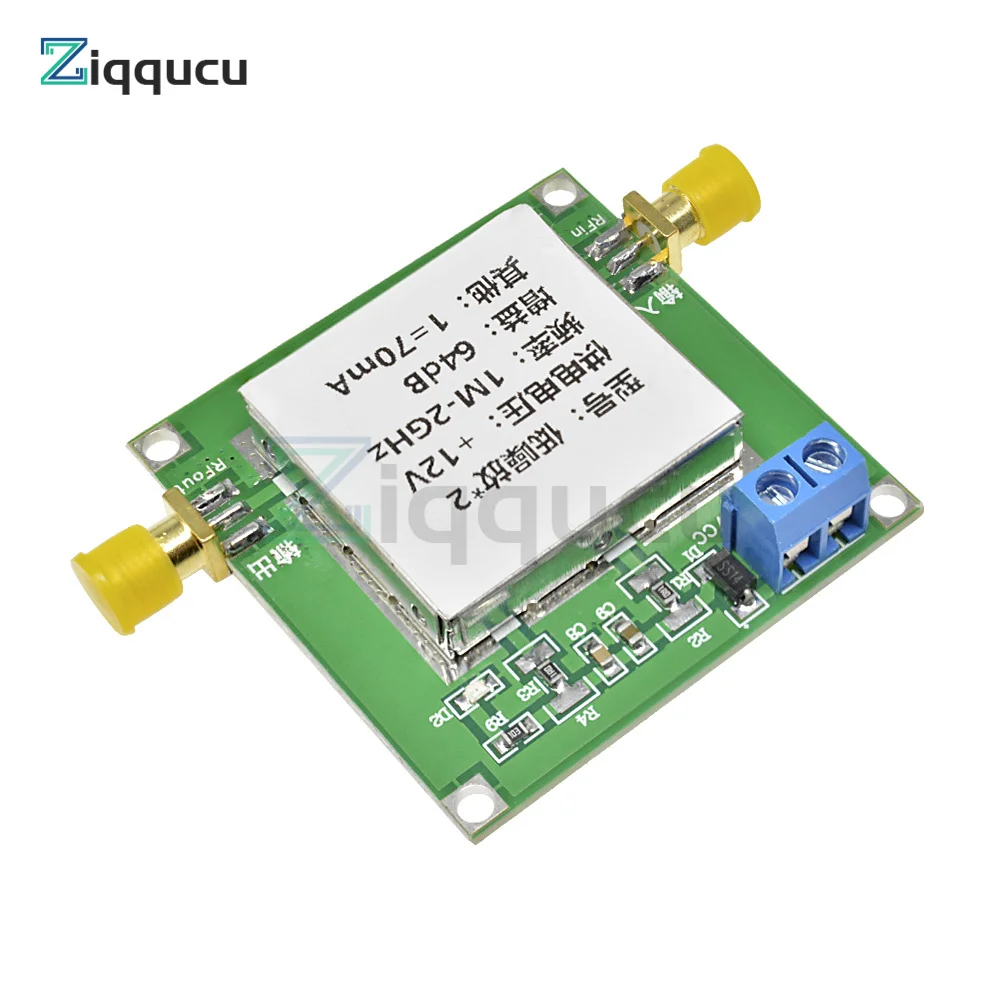

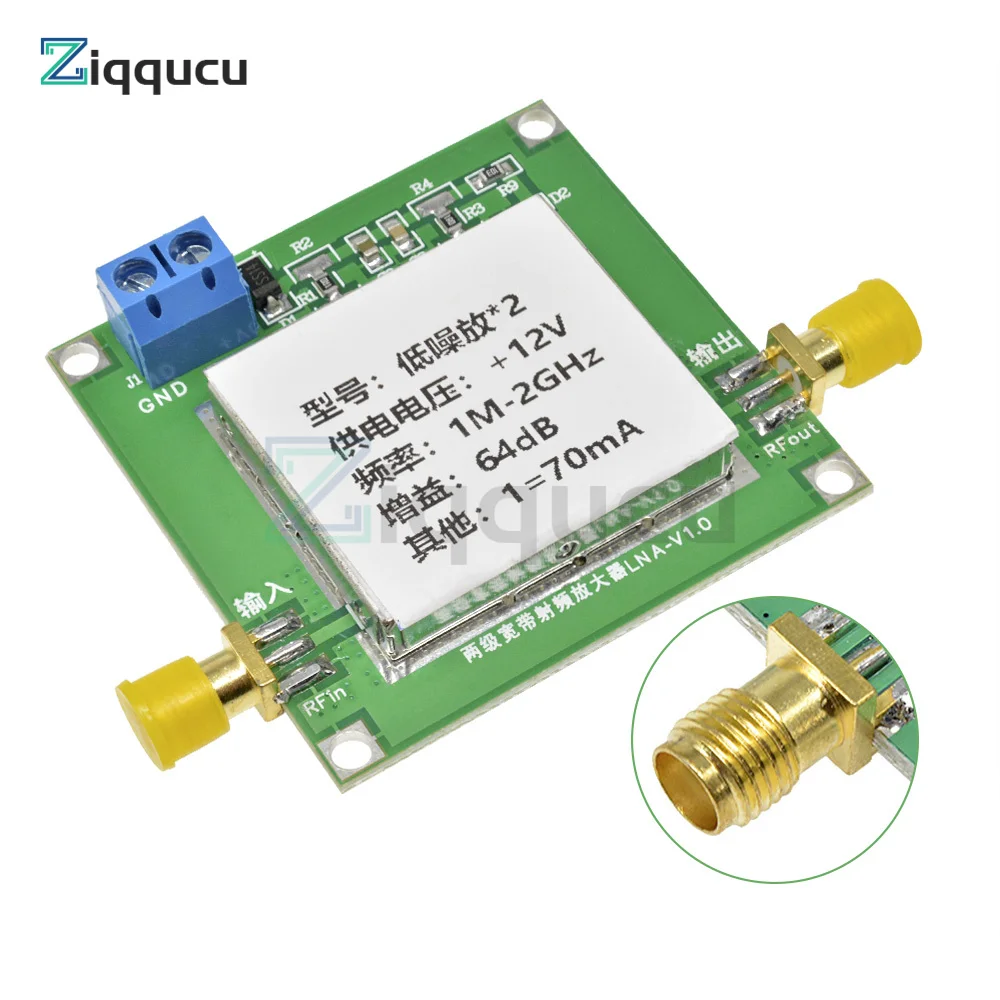

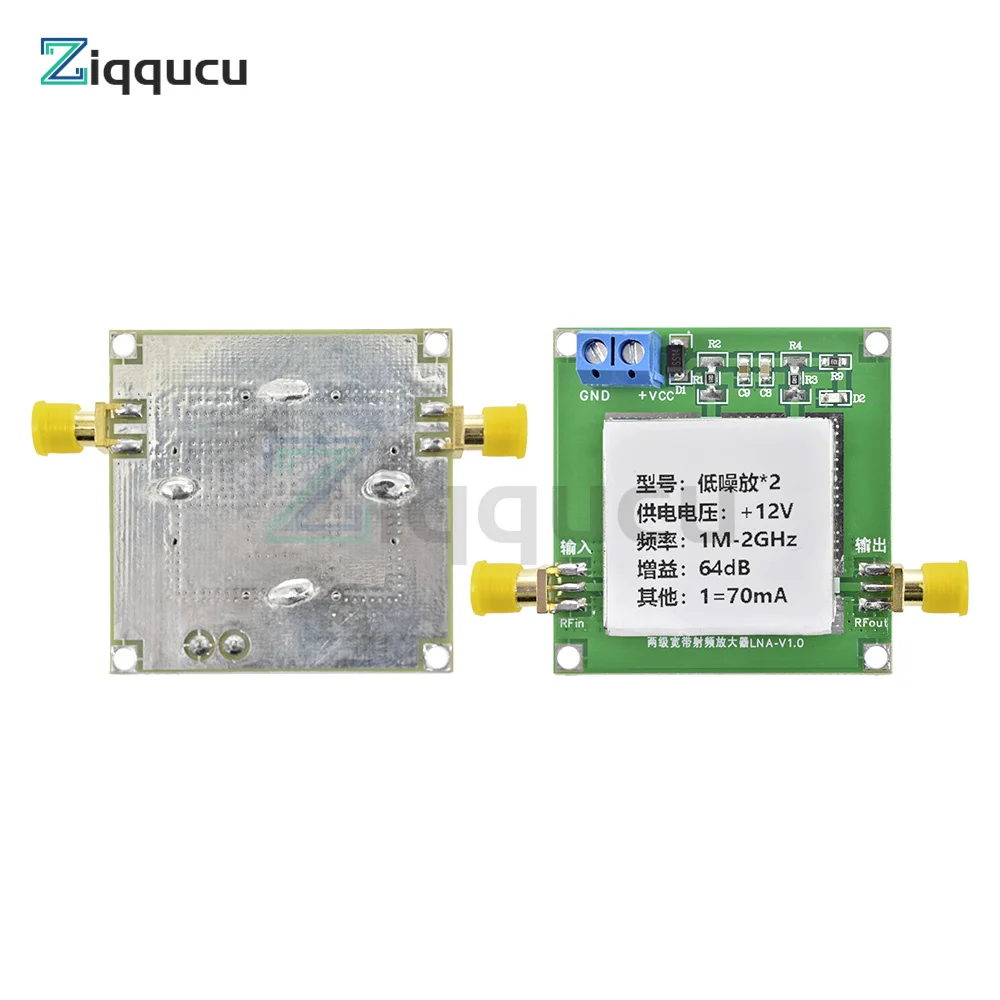

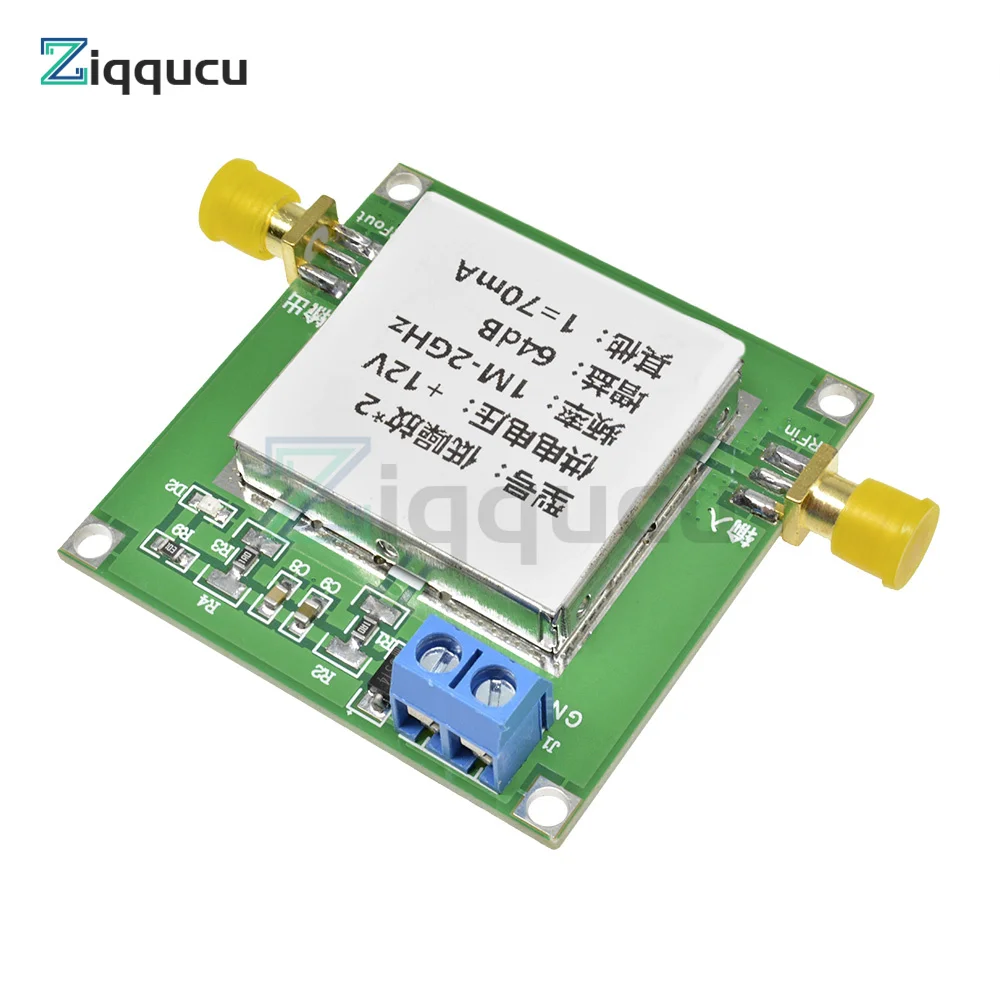

0.1-2GHz 64dB

Specification:
Gain: 64dB
Input and output impedance: 50 Ohms
Noise coefficient: 2dB (measured at 0.5GHz)

Point frequency gain:
F=30.29MHZ GAIN=63.41 dB
F=310.2MHZ GAIN=66.43 dB
F=620.2MHZ GAIN=64.54 dB
F=880.1MHZ GAIN=59.08 dB
F=1.210GHZ GAIN=55.59 dB
F=1.590GHZ GAIN=48.18 dB
F=1.810GHZ GAIN=38.44 dB
F=2.000GHZ GAIN=39.58 dB
Size: Approx. 70 * 50 * 5 mm / 2.76 * 1.97 * 0.20 in
Weight: 24g/0.85oz

Package Included:
1 * 0.1 -2GHz RF Amplifier Module
