Description:

Item Brand:Flysky

Item Number:FS-R4D-ESC

Item Name:ESC speed controller

Material:Plastic and electronic parts

Color:Black

Product Size:44*30*16.7mm

Product Weight:43g(without pin header)

Compatible Models:1/10 crawler,on-road car,off-road short course truck and truck

Specification:

Compatible Transmitters:FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)

Number of Channels:4
Number of Light Interfaces:6
RF:2.4GHz ISM
2.4G Protocol:ANT
Antenna:Single External Antennas
Input Power:LiPo （2-3S）/ NiMH（5-9Cell）
BEC Output:6V/3A
Continuous/Peak Current:40A/200A
Motor Type:Brushed Motor
Applicable Motors:550, 540, 390, 370 or 280 Brushed Motor
Data Output:PWM
Resolution:4096
Temperature Range:-10℃ to +60℃
Humidity Limit:20%-95%
Distance:>150m(Ground Distance without interference)
Waterproof:PPX7
Online Update:None

Certification:CE,FCC ID: 2A2UNR4DESC

Features:

FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with Electronic Speed Control (ESC) and LED light set control. Its features are as follows:

Compact design;
External single antenna;

Output of PWM signals and car light control signals;

Two-way transmission;
Automatic binding;

ESC parameters configurable at the transmitter side;
Battery voltage protection and over-voltage protection;

Overheating protection;

Locked rotor protection;

Adaptation to a variety of vehicle models;

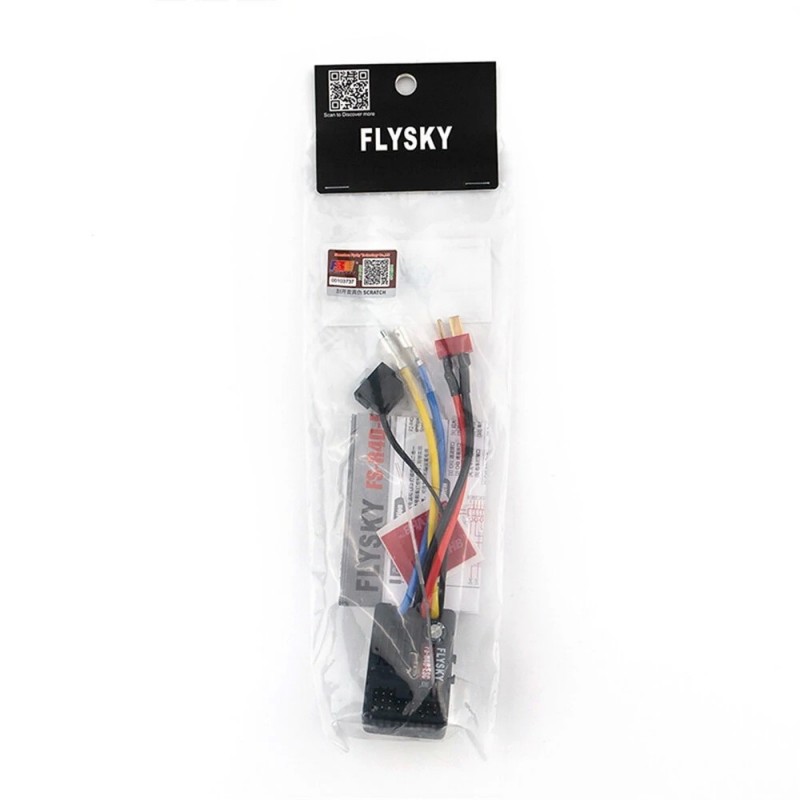

Package Included:

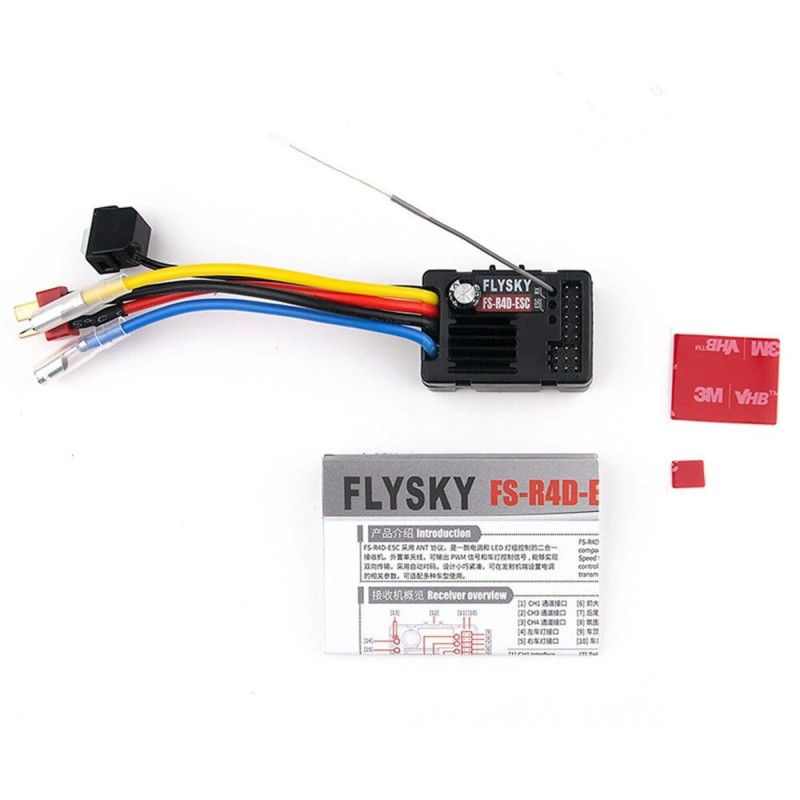

1X FS-R4D ESC

1X Manual
